Help CenterWaterproof IP67 ul Approved 120w 12v Power Supplies
Related Products
-
12V 24V Constant Voltage 60W Led Waterproof Switching Power SupplyUS$ 1 - 9MOQ: 1 Piece -
2 Years Warranty 110v ac to 12v dc Power Supply Psu 20w 12v 1.67aUS$ 3.5 - 4.5MOQ: 1 Piece
-
ul ce Rohs Listed 24v 100w Aluminum Case Power Supply SmpsUS$ 14 - 16MOQ: 1 Piece
-
90w UL IP67 Waterproof 110v AC to 24V DC Power SupplyUS$ 10 - 14MOQ: 8 Pieces
-
2 Years Warranty 12v 5a 60w Waterproof Led Driver Power SupplyUS$ 1 - 9MOQ: 1 Piece

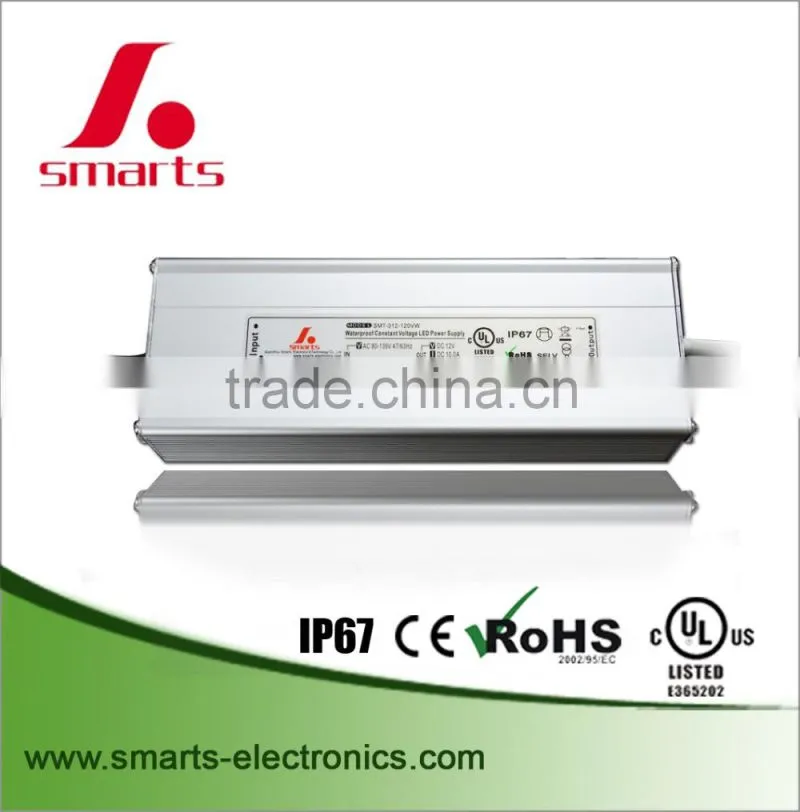

Waterproof IP67 ul approved 120w 12v power supplies
| SPECIFICAION | |||
| MODEL | SMT-012-120VW | SMT-024-120VW | |
| OUTPUT | DC VOLTAGE | 12V | 24V |
| RATED CURRENT | 10.0A | 5.0A | |
| CURRENT RANGE | 0~10.0A | 0~5.0A | |
| RATED POWER | 120W | 120W | |
| RIPPLE&NOISE(max) | 150mV | 150mV | |
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | |
| SETUP RISE TIME | 80ms/110V,220VAC | ||
| HOLD UP TIME(Typ.) | 60ms/110V,220VAC | ||
| INPUT | VOLTAGE RANGE | 100~265VAC | |
| FREQUENCY RANGE | 50~60Hz | ||
| POWER FACTOR(Typ.) | |||
| EFFICIENCY(Typ.) | >83% | ||
| AC CURRENT(Typ.) | 0.92A/110VAC, 0.86A/220VAC | ||
| INRUSH CURRENT (Typ.) | COLD START 50A/110VAC, 220VAC | ||
| PROTECTION | Short circuit |
Protection type:recovers automatically after condition is removed |
|
| Overload | overload protected@145-160% above peak rating | ||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||

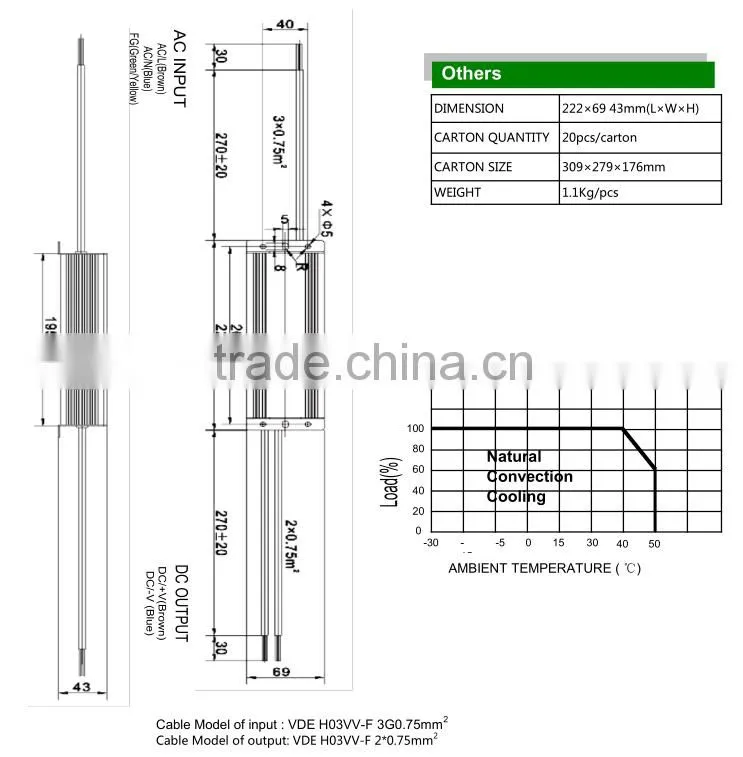

| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | ||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||
| SAFETY&EMC | SAFETY STANDARDS | CE UL Mark(LVD),IP67 | |
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | ||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:200 | |||
Features:
- IP67 design for indoor or outdoor installations
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test
- Suitable for LED lighting
- Products through UL,CE,RoHS Certification
-
2 years warranty
| N.W./pcs | G.W/ctn | Qty/ctn | Carton Size(mm) | ||||
| Waterproof IP67 ul approved 120w 12v power supplies | |||||||
| 1100g/pcs | 13kg/ctn | 10pcs | 315*215*210mm | ||||
| |
|
We can supply you ETL approved Junction boxes for all kinds of the LED drivers.
What kind of LED Driver/Power Supply We do??
We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
|
Triac CC&CV Dimmable Series
|
0-10V CC&CV Dimmable Series
|
DALI CC&CV Dimmable Series
|
|
Constant Voltage Series
|
Enclosue Power Supply
|
Constant Current Series
|
Smarts Electronics, the led driver manufacturer located in Quanzhou,has 6 years trade experience in Alibaba.
We have 7 kinds of led drivers or led power supply:
1.Constant Voltage LED Driver;
2.Constant Current LED Driver;
3.Triac CC&CV Dimmable LED Driver
4.0-10v CC&CV Dimmable LED Driver
5.DALI CC&CV Dimmable LED Driver
6.Power Adapter
7.Switching Power Supply
All of our drivers are got UL/cUL CE ROHS listed .OEM Welcome.
Our led drivers are widely used for:
1.Indoor LED illuminating lights
2.LED Neon, LED urban Decoration
3.LED Lighting Advertising,LED Display
4.Safety Protection Apparatus
5.Telecommunications, Networks
6.Vehicle Lights, Controller Panels
our market:
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
our sales team:
factory & equipments view:
certifications:
CE, UL/CUL, ROHS approval.
What Service we can supply??
-
All inquiries will be replied within 24 hours
-
Professional manufacturer,welcom to visit our website
- OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification; - After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production; - High efficiency,long life span,reasonable&competetative price,fast lead time;
- We have our engineer team, if you have any question about your LED applications, let us know freely.
Frequently Asked Questions
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
Q10.How to contact with me??
A9: Skype: sales5smt
Tel.:+86 (595) 2286 3721
***Any questions,Just feel free to click "send" to contact with me.^-^***
