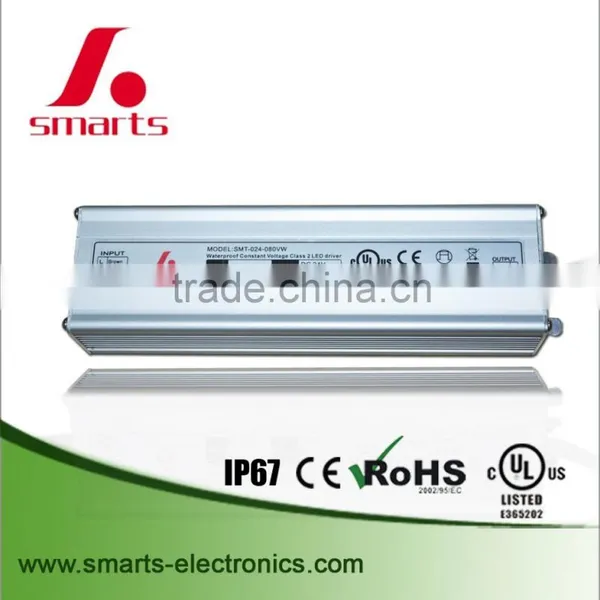

90w UL IP67 Waterproof 110v AC to 24V DC Power supply
| SPECIFICAION | |||
| MODEL | SMT-012-090VW | SMT-024-090VW | |
| OUTPUT | DC VOLTAGE | 12V | 24V |
| RATED CURRENT | 7.5A | 3.75A | |
| CURRENT RANGE | 0~7.5A | 0~3.75A | |
| RATED POWER | 90W | 90W | |
| RIPPLE&NOISE(max) | 150mV | 140mV | |
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | |
| SETUP RISE TIME | 80ms/110VAC | ||
| HOLD UP TIME(Typ.) | 60ms/110VAC | ||
| INPUT | VOLTAGE RANGE | 100~265VAC | |
| FREQUENCY RANGE | 50~60Hz | ||
| POWER FACTOR(Typ.) | |||
| EFFICIENCY(Typ.) | >83% | ||
| AC CURRENT(Typ.) | 0.92A/110VAC, 0.86A/220VAC | ||
| INRUSH CURRENT (Typ.) | COLD START 50A/110VAC, 220VAC | ||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |
| Overload | overload protected@145-160% above peak rating | ||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof IP67) | ||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||
| SAFETY&EMC | SAFETY STANDARDS | CE UL Mark(LVD) | |
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | ||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||
NOTE:
- All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of
ambient temperature. - Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a
0.1uf&10uf parallel capacitor. - Tolerance:includes set up tolerance,line regulation and load regulation.
Feature:
- IP67 design for indoor or outdoor installations
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test
- Suitable for LED lighting
- Products through UL,CE,RoHS Certification
- 2 years warranty
What's the other type power supply do you have???
Answer: We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
|
AC-DC adapter
|
constant current led drivers
|
switching power supplies
|
|
triac dimmable led drivers
|
0-10v dimmable led drivers
|
DALI dimmable led drivers
|
What kind of power cords we can help you fix in our LED Driver/Power Supply??
Answer: We can help you fix / find all kinds of power cords to our drivers as per your request, for example:
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd ???
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.
2). Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.
3). We give 2 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
Website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
our market
Our major markets are in EU & North America,it takes about 70% markets share. view transaction history
factory & equipments view:
what is the packing situation for ??
Answer: inner box-white box + outer carton- standard exporting carton for packing.
Packaging:
- Inner box: white box
- Outer carton: standard exporting carton for packing
Shipping:
- Samples: FedEx, DHL, UPS or TNT ;
- Batch Goods: By Air or By Sea for FCL;
- Customers Specifying Freight Forwarders or Negotiable Shipping Methods;
Our service
- We are UL/cUL audited LED drivers/power supplies enterprise in China.
- Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial experience. it will guarantee your order 100% safe.
- Price is negotiable if you have large quantity demand.
- 100% QC inspection Before Shipping.
- Best Quality & Best Service with Competitive price.
- Shipping will be the most economical for you and freight cost is informed in advance for your consideration. decision for the shipping terms will be made according to your requirements.
- Samples will be ready within 7 working days.
- We have our engineer team, if you have any question about your LED applications, let us know freely,we will give you the best solution.
- Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.
- OEM design & OEM packing welcom.
- Samples will be ready within 7 working days.
FAQ
Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
Q5. How about the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future!
Send your inquiry details in the bellow for professional reply,
click " send " now !
