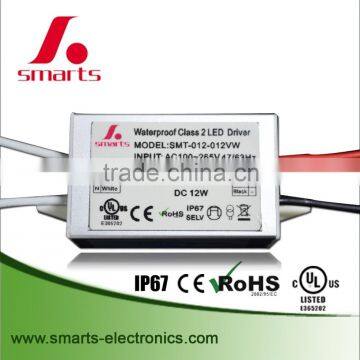

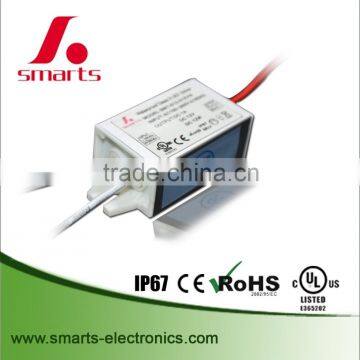

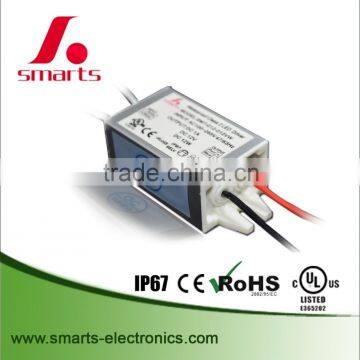

12v 0.5a / 1a energy saving constant voltage led strip driver

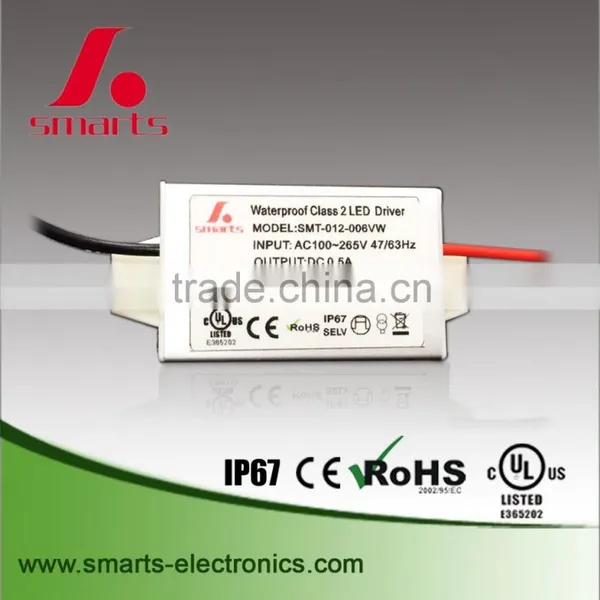

| MODEL | SMT-012-006VW | SMT-024-006VW | |||
| OUTPUT | DC VOLTAGE | 12V | 24V | ||
| RATED CURRENT | 1A | 0.5A | |||
| CURRENT RANGE | 0~0.5A | 0~0.25A | |||
| RATED POWER | 6W | 6W | |||
| RIPPLE&NOISE(max) | <700mV | <400mV | |||
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | |||
| INPUT | VOLTAGE RANGE | 100~265VAC | |||
| FREQUENCY RANGE | 47~63Hz | ||||
| POWER FACTOR(Typ.) | |||||
| EFFICIENCY(Typ.) | >80% | >81% | |||
| AC CURRENT(Typ.) | 0.090A/100~220VAC | ||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | overload protected@145-160% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |||
| INGRESS PROTECTION | IP67 design for indoor or outdoor installations | ||||
| STORAGE TEMP | -40~+80℃ | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;SELV;IP67 UL, CE, ROHS approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
| NOTE |
1.All parameters NOT specially mentioned are measured at 110V ~ 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
||||
|
IP67 constant volatge led drivers
|
constant current led drivers
|
switching power supplies
|
|
triac dimmable led drivers
|
AC-DC adapter
|
DALI dimmable led drivers
|
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd??
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity
power suppliers only.
2). Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.
3). We give 3 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
Website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
factory & equipments view:
Why choose us?
1. We are UL/cUL audited LED drivers/power supplies enterprise in China.
2. Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial experience. It will guarantee your order 100% safe!
3. Price is negotiable if you have large quantity demand.
4. 100% QC inspection Before Shipping.
5. Best Quality & Best Service with Competitive price.
6. Shipping will be the most economical for you and freight cost is informed in advance for your consideration.decision for the shipping terms will be made according to your requirements.
7. We have our engineer team, if you have any question about your LED applications, let us know freely, we will give you the best solution.
8. Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.
9. OEM design & OEM packing welcome.
10. Samples will be ready within 7 working days
Q1. What's type power supply do you have?
A1: We specialized in constant voltage & current LED drivers, 0-10v/triac/DALI
dimmable led drivers, enclosure power suppliers, power adapters.
Q2. What's shipping mode can we choose?
A2:1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Q3. What's the MOQ?
A3: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during
the warranty period, but we need pictures or video to prove the defective comes
from our quality problem.
Q5. How about the protection of product?
A5: Most of our products have protection of short-circuit, overload, over voltage,
over current and reserve polarity. About the specific product, please consult
our sales stuff.
Q6. How about the transportation?
A6: For small order,express will be best.And for bulk order,sea ship way is best but
take much time. For urgent orders,we suggest via air to airport plus our ship partner
send to your door. We will cooperate with your choice.
Q7. What's the Payment do you have?
A7: To assure you the maximum comfort and satisfaction, Currently, you can pay via
T/T, L/C, WESTERN UNION, PAYPAL. More payment options will be added in the
near future.
