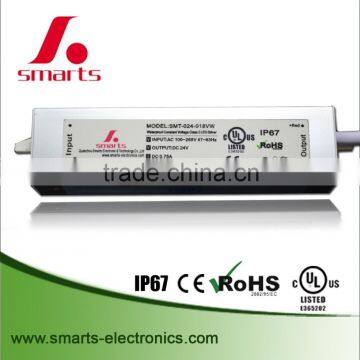

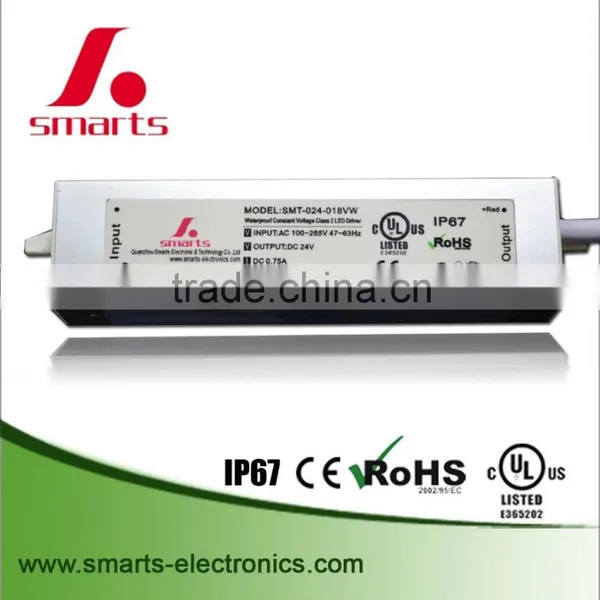

36v 0.42a 15w Constant Voltage Waterproof IP67 LED Driver With CE UL

36v 0.42a 15w Constant Voltage Waterproof IP67 LED Driver With CE UL photo-1

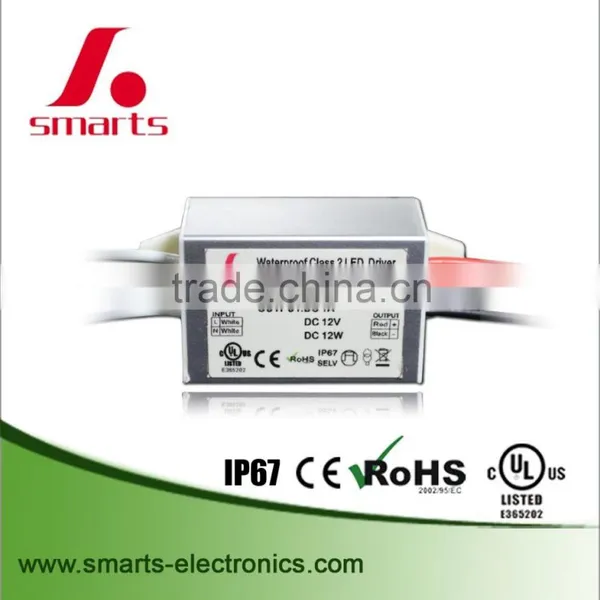

36v 0.42a 15w Constant Voltage Waterproof IP67 LED Driver With CE UL photo-2
36v 0.42a 15w Constant Voltage Waterproof IP67 LED Driver With CE UL photo-3
36v 0.42a 15w Constant Voltage Waterproof IP67 LED Driver With CE UL photo-4
36v 0.42a 15w Constant Voltage Waterproof IP67 LED Driver With CE UL photo-5
36v 0.42a 15w Constant Voltage Waterproof IP67 LED Driver With CE UL photo-6
US$ 2 - 4 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
SMARTS
Model Number:
SMT-036-015VW
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name SMARTS
Model Number SMT-036-015VW
Output Power Other, 15w
Output Type Single
Input Voltage Other, 100-265vAC
Output Voltage 36V
Output Frequency 47-63Hz
Output Current 0.42A

36v 0.42a 15w constant voltage waterproof IP67 LED driver with CE UL

Product Description



Product parameters:

 Model

Input voltage(AC V)

Working Frequency
(Hz)

Output voltage
(DC V)

Output Current

Output power(DC W)

Working Temp.

Protection grade

SMT-012-015VW

100-265V

47~63HZ

12

1.25A

15W

-25~50°C

IP67

SMT-024-015VW

100-265V

47~63HZ

24

0.63A

15W

-25~50°C

IP67

SMT-036-015VW

100-265V

47~63HZ

36

0.42A

15W

-25~50°C

IP67

SMT-048-015VW

100-265V

47~63HZ

48

0.31A

15W

-25~50°C

IP67

  • Case material:aluminum housing
  • CE, UL&CUL, ROHS approval

Features:

  • High efficiency,save energy ,protected environment.
  • High stability and low ripple, increase light efficiency and decrease light attenuation.
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant voltage.
  • Integrity protection,over loading, over voltage ,over current.
  • 8Hrs and 100% full load burn-in test.

Environment :

  • Working Temperature : -25 ~ +50°C
  • Working Humidity : 20 ~ 90% RH non-condensing
  • Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  • TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  • Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Safety :

  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Applications:

  • Indoor LED illuminating lights, LED Neon
  • LED urban DecorationLED Lighting Advertising
  • LED Display, Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels
36v 0.42a 15w constant voltage waterproof IP67 LED driver with CE UL
related products

What's the other type power supply do you have???

Answer: We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.

AC-DC adapter

36v 0.42a 15w constant voltage waterproof IP67 LED driver with CE UL



constant current led drivers

36v 0.42a 15w constant voltage waterproof IP67 LED driver with CE UL



switching power supplies

36v 0.42a 15w constant voltage waterproof IP67 LED driver with CE UL



triac dimmable led drivers

36v 0.42a 15w constant voltage waterproof IP67 LED driver with CE UL



0-10v dimmable led drivers

36v 0.42a 15w constant voltage waterproof IP67 LED driver with CE UL

DALI dimmable led drivers

36v 0.42a 15w constant voltage waterproof IP67 LED driver with CE UL



Packaging & Shipping
36v 0.42a 15w constant voltage waterproof IP67 LED driver with CE UL
 Net weight (g)Gross Weight/ctn Qty/ctn Carton size(mm)
 91   g9.2 kg50 pcs299*224*176mm

36v 0.42a 15w constant voltage waterproof IP67 LED driver with CE UL

36v 0.42a 15w constant voltage waterproof IP67 LED driver with CE UL

Company Information

Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd ???



1).  Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.



2).  Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.



3).  We give 2 years warranty



4).  We accept trial orders begining..



5). W have an area of 2000 square meters factory,  about 300-500 production staff. ..

Website:



our team:

36v 0.42a 15w constant voltage waterproof IP67 LED driver with CE UL



certifications:

CE, UL/CUL, ROHS approval.

36v 0.42a 15w constant voltage waterproof IP67 LED driver with CE UL

our market

Our major markets are in EU & North America,it takes about 70% markets share. view  transaction history



36v 0.42a 15w constant voltage waterproof IP67 LED driver with CE UL



factory & equipments view:

36v 0.42a 15w constant voltage waterproof IP67 LED driver with CE UL36v 0.42a 15w constant voltage waterproof IP67 LED driver with CE UL

Our Services

Our service

  1. We are UL/cUL audited LED drivers/power supplies enterprise in China.
  2. Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial experience. it will guarantee your order 100% safe.
  3. Price is negotiable if you have large quantity demand.
  4. 100% QC inspection Before Shipping.
  5. Best Quality & Best Service with Competitive price.
  6. Shipping will be the most economical for you and freight cost is informed in advance for your consideration. decision for the shipping terms will be made according to your requirements.
  7. Samples will be ready within 7 working days.
  8. We have our engineer team, if you have any question about your LED applications, let us know freely,we will give you the best solution.
  9. Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.
  10. OEM design & OEM packing welcom.
  11. Samples will be ready within 7 working days.
FAQ

FAQ



Q1.             What's type power supply do you have?

Answer:     We specialized in constant voltage & current LED drivers,

                   0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters



Q2.             What's shipping mode can we choose?

Answer:     1.FedEx/DHL/UPS/TNT/Express for samples;

                   2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

                   3. Customers specifying freight forwarders or negotiable shipping method



Q3.             What's the MOQ?

Answer:     Our MOQ is 500pcs, but we accept your trail order/small order, no problem.



Q4.             What can you do if the product is broken?

Answer:     We promise to replace new ones to you if there is any defective happen

                   during the warranty period, but we need pictures or video to prove the defective

                   comes from our quality problem



Q5.             How about the protection of product?

Answer:     Most of our products have protection of short-circuit. overload,
                   over voltage, over current and reserve polarity. About the specific product,

                   please consult our salesstuff.



Q6.              How about the transportation?

Answer:      For small order,express will be best.And for bulk order,sea ship way is best but take much time.

                    For urgent orders,we suggest via air to airport plus our ship partner send to your door.

                    We will cooperate with your choice.



Q7.              What's the Payment do you have?

Answer:      To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,

                    WESTERN UNION, PAYPAL. More payment options will be added in the near future!
