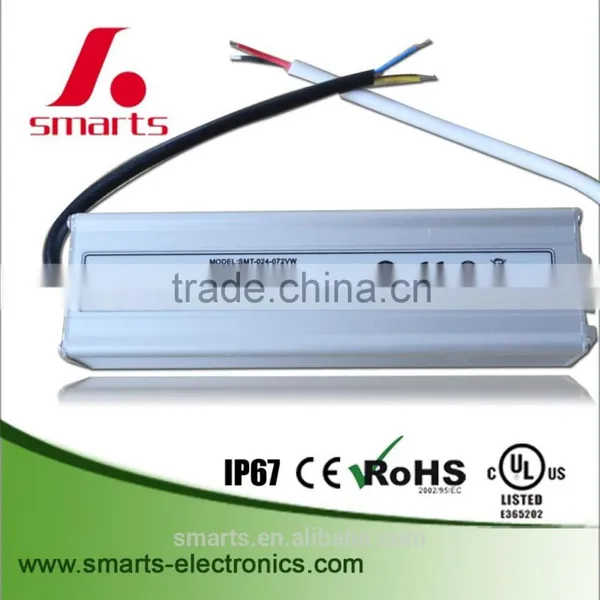

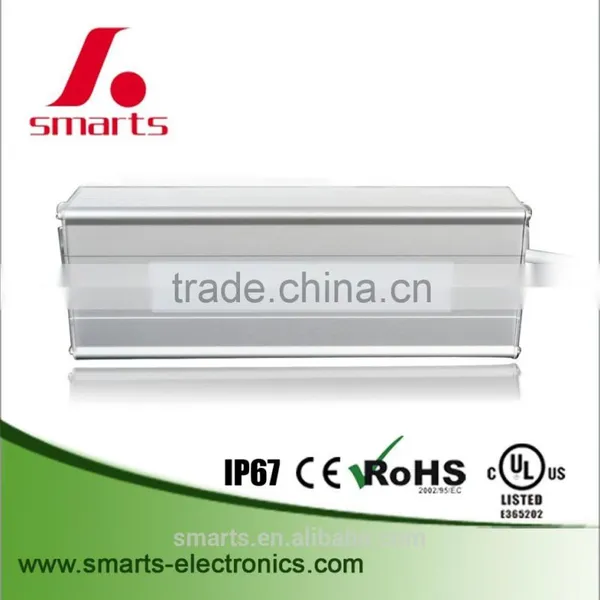

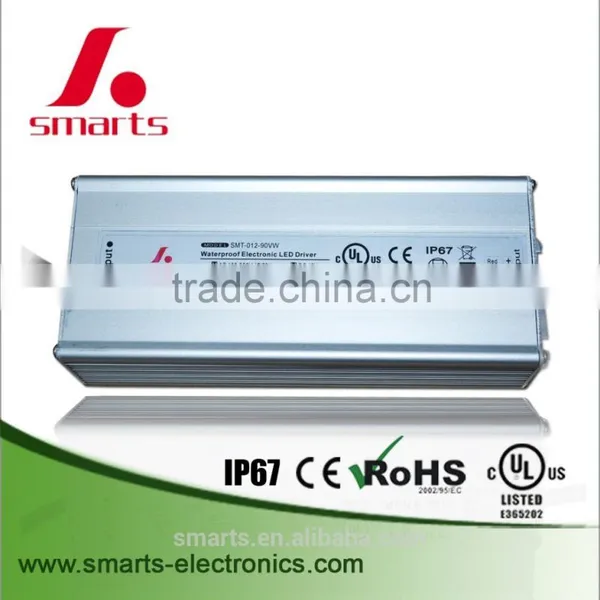

ul 12v 24v 36v 48v 90w led driver power supply
Specifications:
- Modle: SMT-048-090VW
- Input voltage:100~265vAC / 47-63HZ
- Output :48v @1.88Amp 90w
- Case material: aluminium housing
- Waterproof rate: IP67
- unit weight: 900g
- product size: 200*68*53 mm
- box size: 315*215*210 mm
- pack qty: 10pcs/ctn
- pack weight: 13kg/ctn
- produt cord:connecting terminal(IP20) / 18AWG*20CM
- CE, UL&CUL, ROHS approval
- 2 years warranty
- (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features:
- IP67 design for indoor or outdoor installations
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Integrity protection,over loading, over voltage ,over current.
- Cooling by free air convection
- 100% full load burn-in test.
- Suitable for LED lighting
Environment:
- Working temp: -30~+50℃ (Refer to output load derating curve)
- Working humidity: 20~99% RH non-condensing(Waterproof)
- Storage temp. humidity: -40~+80℃,10~99%RH
Safety:
- Safety Standards : EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
- Withstand Voltage : I/P-O/P:1.5KVAC IP-GND:1.5KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Model |
Input voltage (AC V) |
Working Frequency |
Output voltage |
Output Current |
Output power (DC W) |
Working Temp. |
Protection grade |
|
SMT-012-090VW
|
100-265V |
47~63HZ |
12±0.5V |
7.50A |
90W |
-25~50°C |
IP67 |
|
SMT-024-090VW
|
100-265V |
47~63HZ |
24±0.5V |
3.75A |
90W |
-25~50°C |
IP67 |
|
SMT-036-090VW
|
100-265V |
47~63HZ |
36±0.3V |
2.50A |
90W |
-25~50°C |
IP67 |
|
SMT-048-090VW
|
100-265V |
47~63HZ |
48±0.5V |
1.88A |
90W |
-25~50°C |
IP67 |
| N.W./pcs | G.W/ctn | Qty/ctn | Carton Size(mm) | ||||
| ul 12v 24v 36v 48v 90w led driver power supply | |||||||
| 900g/pcs | 13kg/ctn | 10pcs | 315*215*210mm | ||||
| |
|
What kind of LED Driver/Power Supply We do??
We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
|
Triac CC&CV Dimmable Series
|
0-10V CC&CV Dimmable Series
|
DALI CC&CV Dimmable Series
|
|
Wall-mount Power Adapter
|
HOME
|
Desktop Power Adapter
|
|
Constant Voltage Series
|
Enclosue Power Supply
|
Constant Current Series
|
Smarts Electronics, the led driver manufacturer located in Quanzhou,has 6 years trade experience in Alibaba.
We have 7 kinds of led drivers or led power supply:
1.Constant Voltage LED Driver;
2.Constant Current LED Driver;
3.Triac CC&CV Dimmable LED Driver
4.0-10v CC&CV Dimmable LED Driver
5.DALI CC&CV Dimmable LED Driver
6.Power Adapter
7.Switching Power Supply
All of our drivers are got UL/cUL CE ROHS listed .OEM Welcome.
Our led drivers are widely used for:
1.Indoor LED illuminating lights
2.LED Neon, LED urban Decoration
3.LED Lighting Advertising,LED Display
4.Safety Protection Apparatus
5.Telecommunications, Networks
6.Vehicle Lights, Controller Panels
our market:
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
our sales team:
factory & equipments view:
certifications:
CE, UL/CUL, ROHS approval.
What Service we can supply??
-
All inquiries will be replied within 24 hours
-
Professional manufacturer,welcom to visit our website
- OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification; - After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production; - High efficiency,long life span,reasonable&competetative price,fast lead time;
- We have our engineer team, if you have any question about your LED applications, let us know freely.
Frequently Asked Questions
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
Q10.How to contact with me??
A9: Skype: sales5smt
Tel.:+86 (595) 2286 3721
***Any questions,Just feel free to click "send" to contact with me.^-^***
