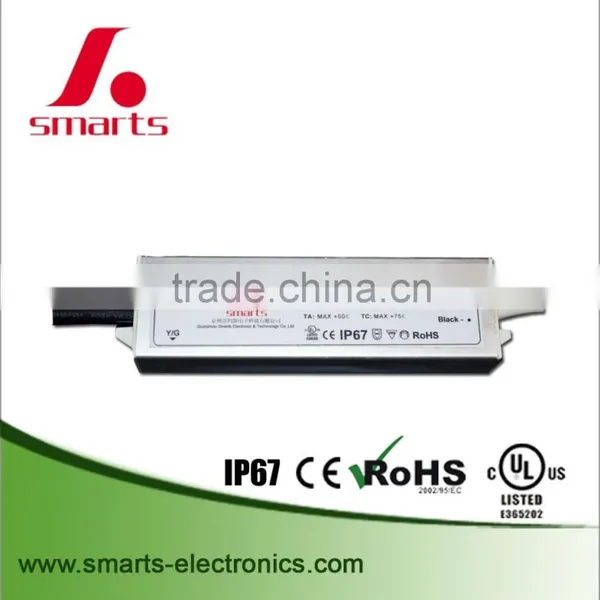

48w 50w 1200ma high pf constant current waterproof led driver
Product parameters:
| ITEM No. |
INPUT VAC |
INPUT FREQUENCY (Hz) |
OUTPUT POWER (Watt) |
OUTPUT CURRENT (Amp) |
OUTPUT VOLTAGE (vDC) |
Warranty | CERTIFICATE |
|
SMT-070-0700CW
|
100-265 | 47-63Hz | 49W | 700mA | 50-70V | 2 years | CE/UL/ROHS |
|
SMT-050-0900CW
|
100-265 | 47-63Hz | 45W | 900mA | 35-50V | 2 years | CE/UL/ROHS |
|
SMT-040-1050CW
|
100-265 | 47-63Hz | 45W | 1050mA | 20-40V | 2 years | CE/UL/ROHS |
|
SMT-040-1200CW
|
100-265 | 47-63Hz | 48W | 1200mA | 30-40V | 2 years | CE/UL/ROHS |
|
SMT-024-2000CW
|
100-265 | 47-63Hz | 48W | 2000mA | 12-24V | 2 years | CE/UL/ROHS |
Features:
- High efficiency,save energy ,protected environment
- High stability and low ripple, increase light efficiency and decrease light attenuation
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant current
- Passed high, low temperature and waterproof testing.
- Integrity protection,over loading, over voltage over current
- 8Hrs and 100% full load burn-in test.
- Case material--aluminium housing
- Cooling by free air convection
- High reliability designing solution
- Suitable for LED lighting and moving sign applications
Environment:
- Working Temperature : -40 ~ +60°C
- Working Humidity : 20 ~ 90% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- ibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety:
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Aplication:
- Indoor LED illuminating lights
- LED Neon, LED urban Decoration
- LED Lighting Advertising,LED Display
- Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
|
IP67 constant volatge led drivers
|
AC-DC adapter
|
switching power supplies
|
|
triac dimmable led drivers |
0-10v dimmable led drivers
|
DALI dimmable led drivers
|
| Packing | |||||||
| N.W./pcs | G.W/ctn | Qty/ctn | Carton Size(mm) | ||||
| aluminium case 1200ma 48w T5, T8 led tube driver constant current | |||||||
| 650g/pcs | 13.5kg/ctn | 20pcs | 324*258*188 mm | ||||
Packing:
Shipping
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd ???
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.
2). Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.
3). We give 2 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
Website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
our market
Our major markets are in EU & North America,it takes about 70% markets share. view transaction history
factory & equipments view:
- We are UL/cUL audited LED drivers/power supplies enterprise in China
- Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial experience. It will guarantee your order 100% safe
- Price is negotiable if you have large quantity demand
- 100% QC inspection Before Shipping
- Best Quality & Best Service with Competitive price
- Shipping will be the most economical for you and freight cost is informed in advance
- consideration.decision for the shipping terms will be made according to your requirements
- We have our engineer team, if you have any question about your LED applications, let us know freely, we will give you the best solution
- Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours
- OEM design & OEM packing welcome
- Samples will be ready within 7 working days
FAQ
Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
Q5. what's the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
Q6. what's the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future.
.
Q8. How can i contact with you? will you on line??
Answer: contact me at follow info, we will provide services timely:
skype: sms1112222 WhatsApp/Mob:+86 187 5991 0312
Send your inquiry details in the bellow for professional reply,
click " send " now !
