120v ac to 60-80v dc 350mA 28watt Constant Current Led Transformer

120v ac to 60-80v dc 350mA 28watt Constant Current Led Transformer thumbnail-1
120v ac to 60-80v dc 350mA 28watt Constant Current Led Transformer thumbnail-2
120v ac to 60-80v dc 350mA 28watt Constant Current Led Transformer thumbnail-3
120v ac to 60-80v dc 350mA 28watt Constant Current Led Transformer thumbnail-4
120v ac to 60-80v dc 350mA 28watt Constant Current Led Transformer thumbnail-5
120v ac to 60-80v dc 350mA 28watt Constant Current Led Transformer thumbnail-6

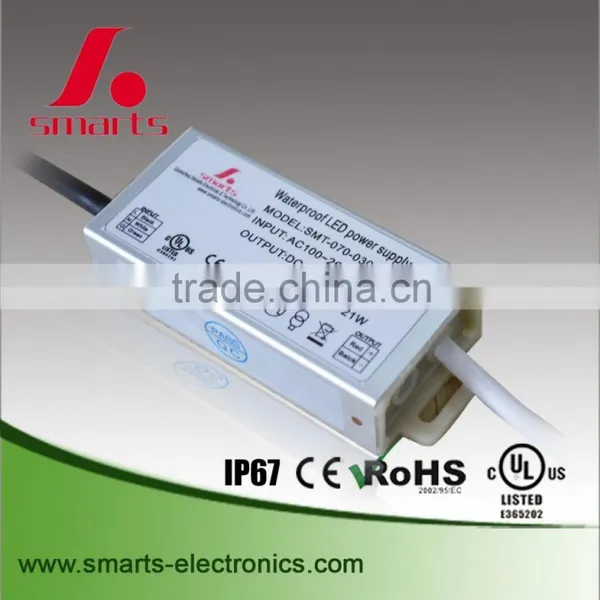

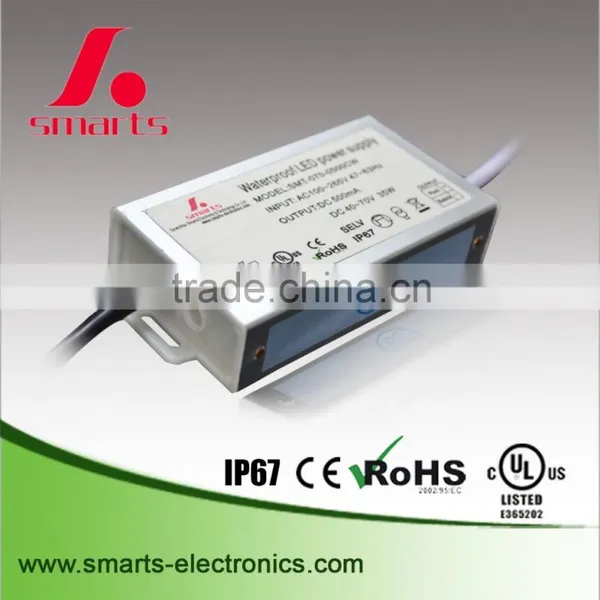

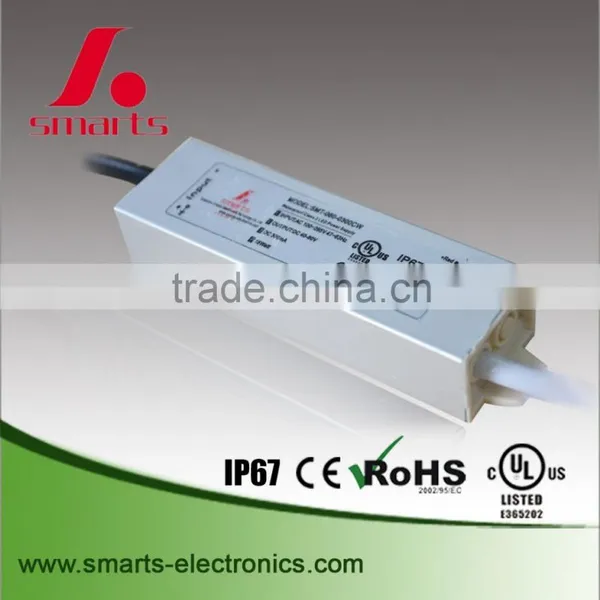

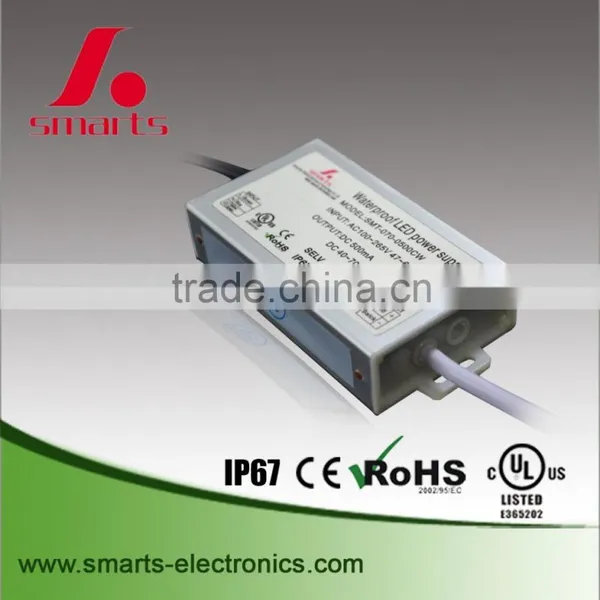

120v ac to 60-80v dc 350mA 28watt Constant Current Led Transformer photo-1
120v ac to 60-80v dc 350mA 28watt Constant Current Led Transformer photo-2
120v ac to 60-80v dc 350mA 28watt Constant Current Led Transformer photo-3
120v ac to 60-80v dc 350mA 28watt Constant Current Led Transformer photo-4
120v ac to 60-80v dc 350mA 28watt Constant Current Led Transformer photo-5
120v ac to 60-80v dc 350mA 28watt Constant Current Led Transformer photo-6
US$ 3 - 7 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
SMARTS
Model Number:
SMT-080-0350CW
Contact Supplier Request Quote Chat Now
Quanzhou Smarts Electronic & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name SMARTS
Model Number SMT-080-0350CW
Output Power Other, 28watt
Output Type Single
Input Voltage Other, 100-265vAC
Output Voltage 60-80v
Output Frequency 47-63Hz
Output Current 350mA

120v ac to 60-80v dc 350mA 28watt constant current led transformer

Product Description

Description:

 1. Input voltage.:100-265V AC

 2. Efficiency>82%

 3. Warranty: 2 years

 4. CE,UL,ROHS approval

 5. product  dimension(L x W x H): 122*58*26mm

 6. Net weight:217g/pc

 7. Case material:aluminum

 8. Waterproof rate:  IP67



 Features:

  1. High efficiency,save energy ,protected environment
  2. High stability and low ripple, increase light efficiency and decrease light attenuation
  3. Meet to safety standard and EMC
  4. Assure LED stability long lift and light efficiency by constant voltage
  5. Passed high ,low temperature and waterproof testing.
  6. Integrity protection,over loading, over voltage ,over current
  7. 8Hrs and 100% full load burn-in test.

Environment:

  1. Working Temperature : -30 ~ +60°C
  2. Working Humidity : 20 ~ 90% RH non-condensing
  3. Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  4. TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  5. Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes



Safety:

  1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
  2. Withstand Voltage : I/P-O/P: 3000KVAC
  3. Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Product parameters:



item NO.

INPUT
VAC

Input
Frequence
(Hz)

OUTPUT
CURRENT
(Amp)

OUTPUT
VOLTAGE
(vDC)

OUTPUT
POWER
(Watt)

 IP rate
SMT-090-0300CW 100-265v AC 47-63Hz 300mA 75-90V 21W IP67
SMT-080-0350CW 100-265v AC 47-63Hz 350mA 60-80V 28W IP67

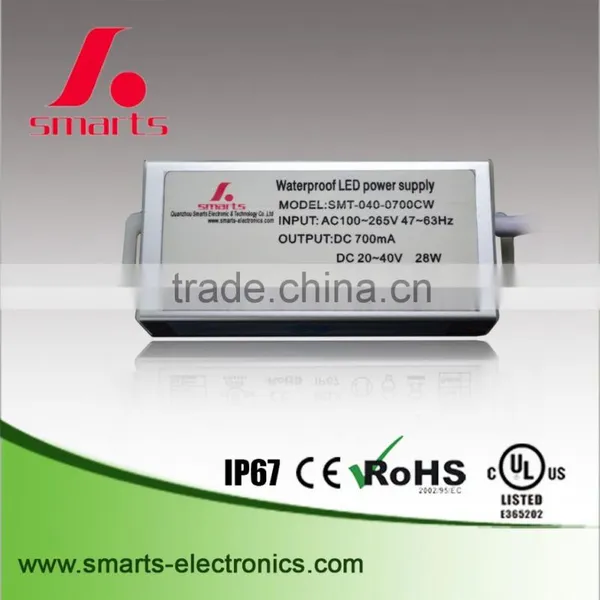

SMT-040-0700CW 100-265v AC 47-63Hz 700mA 20-40V 28W IP67
SMT-036-0900CW  100-265v AC 47-63Hz 900mA 20-36V 32W IP67
SMT-066-0450CW 100-265v AC 47-63Hz 450mA 40-66V 30W IP67

120v ac to 60-80v dc 350mA 28watt constant current led transformer
