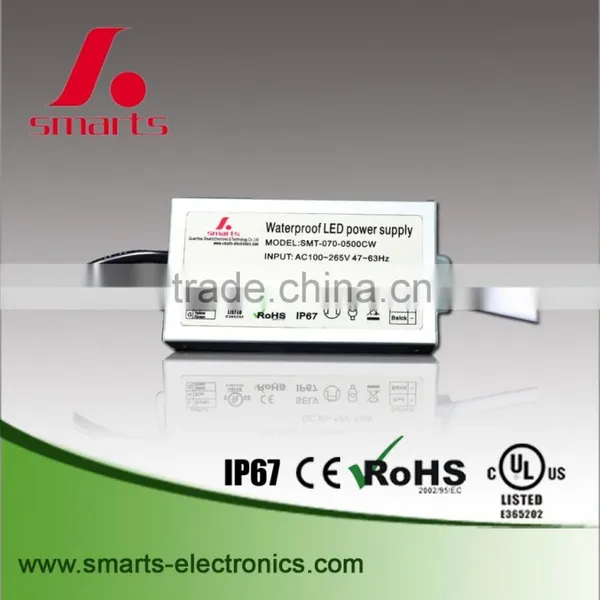

Led Power Driver 35w 350ma 500ma 700ma Single Output 35w Power Supply Led

Led Power Driver 35w 350ma 500ma 700ma Single Output 35w Power Supply Led thumbnail-1
Led Power Driver 35w 350ma 500ma 700ma Single Output 35w Power Supply Led thumbnail-2
Led Power Driver 35w 350ma 500ma 700ma Single Output 35w Power Supply Led thumbnail-3
Led Power Driver 35w 350ma 500ma 700ma Single Output 35w Power Supply Led thumbnail-4
Led Power Driver 35w 350ma 500ma 700ma Single Output 35w Power Supply Led thumbnail-5
Led Power Driver 35w 350ma 500ma 700ma Single Output 35w Power Supply Led thumbnail-6
Led Power Driver 35w 350ma 500ma 700ma Single Output 35w Power Supply Led photo-1
Led Power Driver 35w 350ma 500ma 700ma Single Output 35w Power Supply Led photo-2
Led Power Driver 35w 350ma 500ma 700ma Single Output 35w Power Supply Led photo-3
Led Power Driver 35w 350ma 500ma 700ma Single Output 35w Power Supply Led photo-4
Led Power Driver 35w 350ma 500ma 700ma Single Output 35w Power Supply Led photo-5
Led Power Driver 35w 350ma 500ma 700ma Single Output 35w Power Supply Led photo-6
US$ 4 - 8 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
SMARTS
Model Number:
SMT-100-0350CW
Contact Supplier Request Quote Chat Now
Quanzhou Smarts Electronic & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name SMARTS
Model Number SMT-100-0350CW
Output Power Other, 35watt
Output Type Single
Input Voltage Other, 100-265vAC
Output Voltage 80-100VDC
Output Frequency 47-63Hz
Output Current 350mA

led power driver 100w  350ma 500ma 700ma  single output 100w power supply led

• 2 years warranty

(We promise to replace new ones to you if there is any defective happen during the warranty period)



Description:

  1. input: 100~265vAC, 47~63Hz
  2. output current: 500ma
  3. power: 24watt
  4. High efficiency,save energy ,protected environment
  5. High stability and low ripple, increase light efficiency and decrease light attenuation
  6. Meet to safety standard and EMC
  7. Assure LED stability long lift and light efficiency by constant voltage
  8. Passed high ,low temperature and waterproof testing.
  9. Integrity protection,over loading, over voltage ,over current
  10. 8Hrs and 100% full load burn-in test.

Features:

• High efficiency,save energy ,protected environment

• High stability and low ripple, increase light efficiency and decrease light attenuation

• Meet to safety standard and EMC

• Assure LED stability long lift and light efficiency by constant voltage

• Passed high ,low temperature and waterproof testing.

• Integrity protection,over loading, over voltage ,over current

• 8Hrs and 100% full load burn-in test.

Environment:

  1. Working Temperature : -30 ~ +60°C
  2. Working Humidity : 20 ~ 90% RH non-condensing
  3. Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  4. TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  5. Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Safety:

  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC



Product parameters:

ITEM No. CERTIFICATE COVER MATERIAL PRODUCT SIZE(mm) INPUT VAC OUTPUT POWER (Watt) OUTPUT CURRENT (Amp) OUTPUT VOLTAGE (vDC)
SMT-070-0500CW CE/UL/ROHS plastic/AL

116*33*21mm (IP20)             122*58*26mm(IP67) 217*29*21mm(IP67)

(optional)

100-265 35W 500mA 40-70V
SMT-050-0700CW CE/UL/ROHS plastic/AL 100-265 35W 700mA 30-50V
SMT-100-0350CW CE/UL/ROHS plastic/AL 100-265 35W 350mA 80-100V
SMT-100-0350CW CE/UL/ROHS plastic/AL 100-265 40W 350mA 90-120V
SMT-035-1050CW CE/UL/ROHS plastic/AL 100-265 36W 1050mA 20-35V
SMT-025-1400CW CE/UL/ROHS plastic/AL 100-265 35W 1400mA 10-25V



Application:

Our products are widely used in various industries, such as:

  1. Outdoor LED illuminating lights,
  2. LED Neon, LED City Decoration,
  3. LED Lighting Advertising,
  4. LED Display,
  5. Safety Protection Apparatus,
  6. Telecommunications,
  7. Networks,
  8. Vehicle Lights,
  9. Controller Panels, etc.

led power driver 35w 350ma 500ma 700ma single output 35w power supply led



Packing

led power driver 35w 350ma 500ma 700ma single output 35w power supply led



Production Certificate

led power driver 35w 350ma 500ma 700ma single output 35w power supply led



Equipments

led power driver 35w 350ma 500ma 700ma single output 35w power supply led



Factory

led power driver 35w 350ma 500ma 700ma single output 35w power supply led
