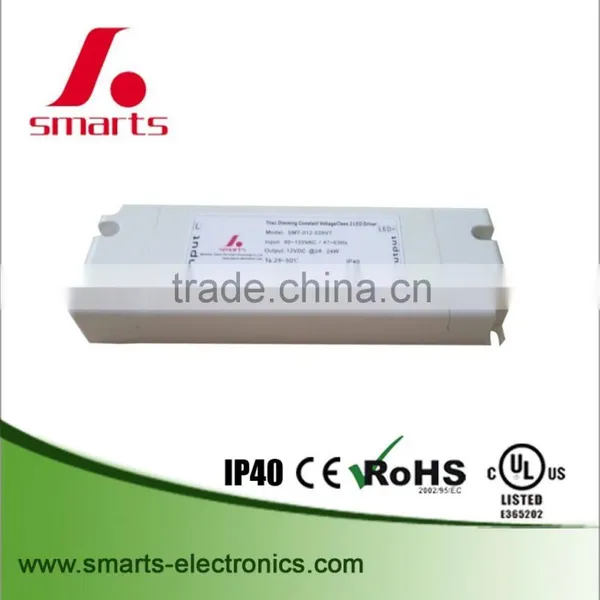

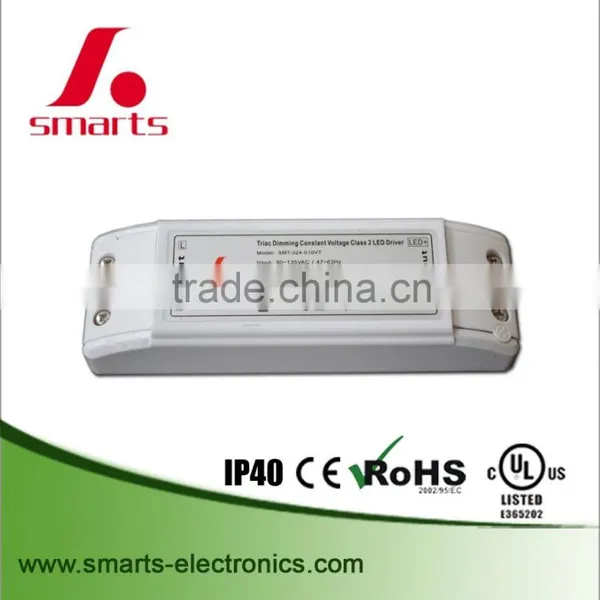

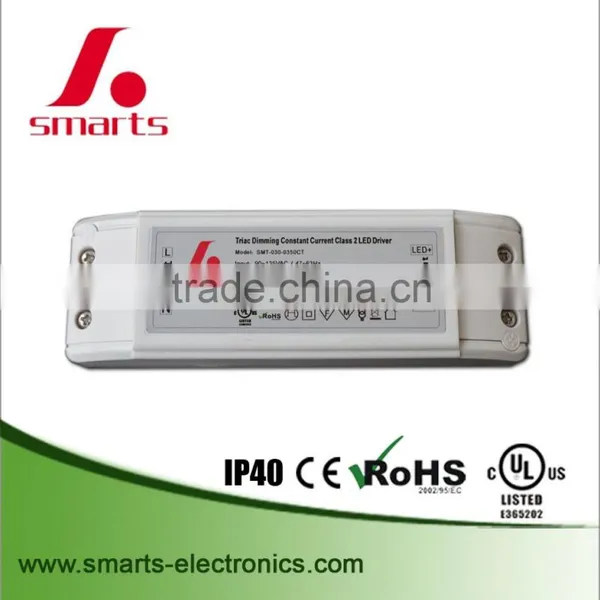

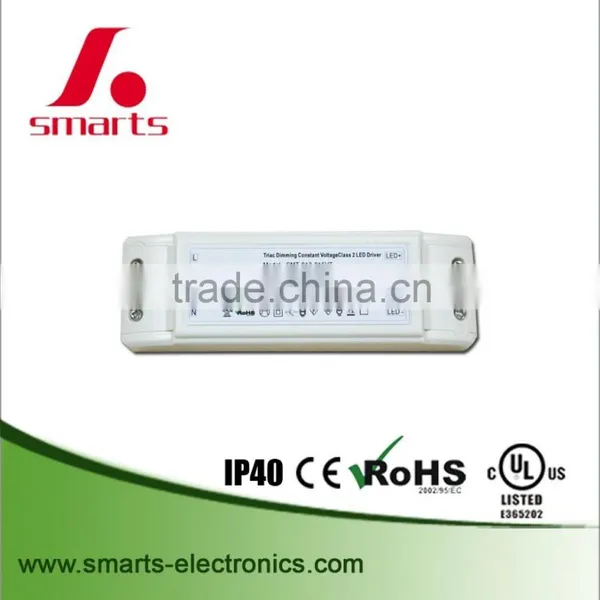

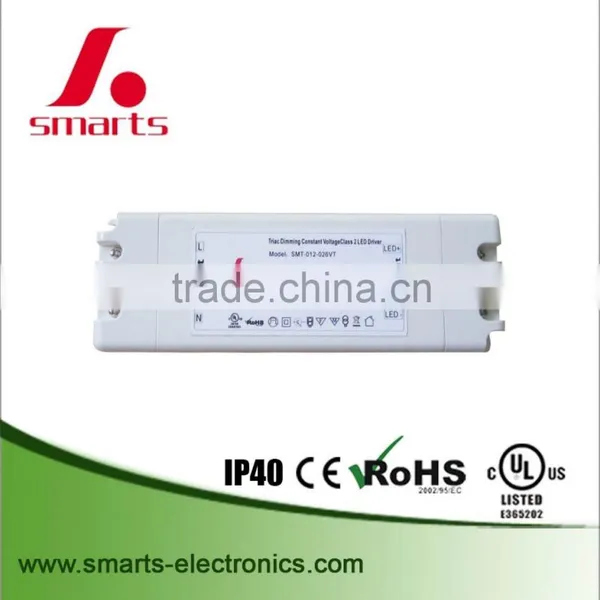

Professional Manufacturer UL FCC ETL listed 12v 60W waterproof Led Driver
What's the description of Professional Manufacturer UL FCC ETL listed IP67 12v 60W waterproof Led Driver?
|
Model Specification |
SMT-012-060VT |
SMT-024-060VT |
SMT-036-060VT |
|||
AC input voltage |
100-130V |
100-130V |
100-130V |
|||
DC output voltage |
12DC |
24VDC |
36VDC |
|||
Output voltage rang) |
+/-2% |
+/-1% |
+/-1% |
|||
output current |
6.67A |
3.33A |
2.22A |
|||
Wave and noise |
150mVp-p |
150mVp-p |
150mVp-p |
|||
Inlet stability |
+/0.5% |
+/0.5% |
+/0.5% |
|||
Load stability |
+/1% |
+/1% |
+/1% |
|||
DC output power |
60W |
60W |
60W |
|
||
dimming &working mode |
DALI dimming constant current type |
|||||
Setup, Rise Time |
500ms, 120ms / 230VAC |
|||||
Hold Up Time (Typ.) |
50ms/100-240VAC |
|||||
Efficiency &pf |
efficency>88% PF>0.9 |
|||||
outer case & IPrate |
plastic IP40 | |||||
net weight |
1.3kg | |||||
| protection |
1. Protections: Short circuit / Overload / Over voltage / Over temperature. 2. Protection type : Constant current limiting type; Shut down o/p voltage, re-power on to recover. 3. Over Voltage : Shut down and latch off o/p voltage, re-power on to recover. 4. Over Temperature : 85°C±10°C. |
|||||
| features |
1. Cooling by nature. 2. 100% full load burn-in test 3. High reliability designing solution 4. High efficiency,save energy ,protected environment 5. High stability and low ripple, increase light efficiency 6. and decrease light attenuation. 7. Meet to safety standard and EMC. 8. Assure LED stability long lift and light efficiency by constant voltage. 9. Passed high ,low temperature and waterproof testing. 10. integrity protection,over loading, over voltage ,over current. 11. 8Hrs and 100% full load burn-in test. |
|||||
environment |
1. Working Temperature : -30 ~ +60°C 2. Working Humidity : 20 ~ 90% RH non-condensing 3. Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH 4. TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C) 5. Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes. |
|||||
| safety |
1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 2. Withstand Voltage : I/P-O/P: 3000KVAC 3. Isolation Resistance : I/P-O/P:100M Ohms/500VDC 4. MTBF : 50Khrs min. MIL-HDBK-217F (25°C ) |
|||||
| certificates | CE(EMC+LVD),ROHS, UL/CUL (UL file # E365202) | |||||
application |
Our products are widely used in various industries, such as
|
|||||
- AC-DC Triac Dimmable LED Driver
- working mode: constant voltage
- constant:12Vdc,5.0A / power: 60Watt
- I/P:90~135V/ 170~265V, 47-63Hz
- Ambient temp.: 20 degree~40 degree @ full load
- Efficiency > 85%
- size: 200*68*45 mm
- waterproof rate: IP67
- packing: 50pcs/ctn, overload,over heat, over voltage, short circuit protection
- 3 years warranty
- CE, UL, ROHS approval
What's Professional Manufacturer UL FCC ETL listed 12v 60W waterproof Led Driver like?
24v 100w waterproof ip67 constant voltage led driver
CE UL listed triac dimming led driver 24v 80w
36W 24V 1.50A desktop power supply switching power AC/DC adapter
Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes... View detail website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
factory & equipments view:
Our market:
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
why choose us??
1. We are UL/cUL audited LED drivers/power supplies enterprise in China.
2. Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial experience.
it will guarantee your order 100% safe.
3. Price is negotiable if you have large quantity demand
4. 100% QC inspection Before Shipping
5. Best Quality & Best Service with Competitive price.
6. Shipping will be the most economical for you and freight cost is informed in advance for your consideration.
decision for the shipping terms will be made according to your requirements
7. Samples will be ready within 7 working days.
8. We have our engineer team, if you have any question about your LED applications, let us know freely,
we will give you the best solution.
9. Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.
10. OEM design & OEM packing welcom.
11. Samples will be ready within 7 working days.
FAQ:
>Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
>Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
>Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
>Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
>Q5. How about the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
>Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
>Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future
