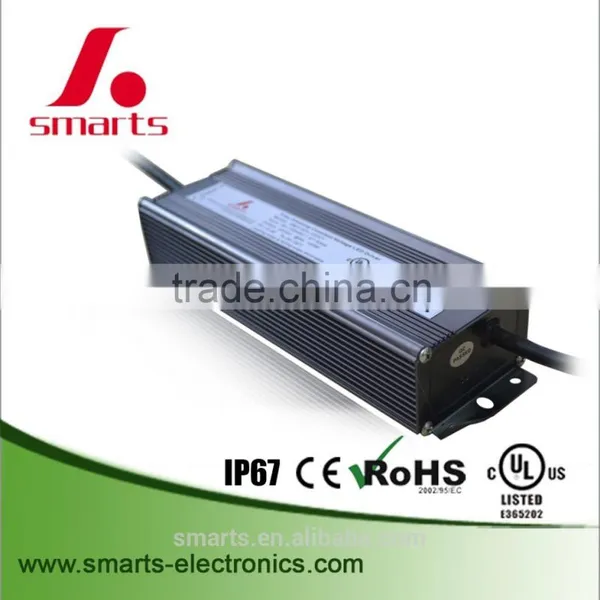

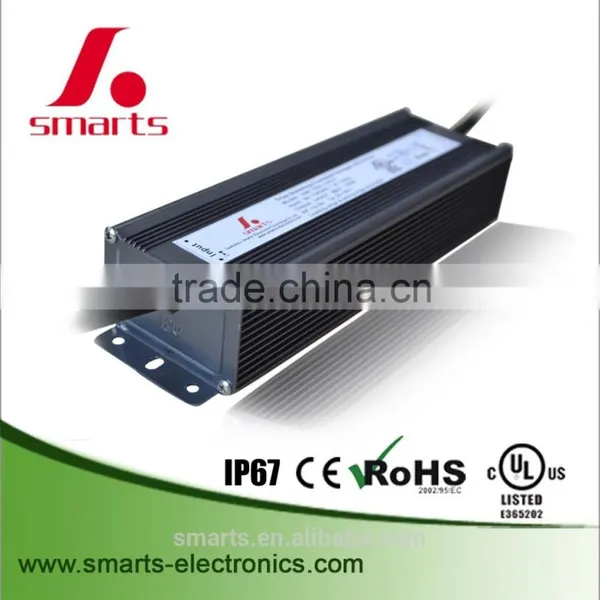

150w 24v 6.3a dimmable power transformer 220v 24v / led power supply
| SPECIFICAION | |||||
| MODEL | SMT-012-150VW | SMT-024-150VW | SMT-036-150VT | SMT--048-150VT | |
| OUTPUT | DC VOLTAGE | 12V | 24V | 36V | 48V |
| RATED CURRENT | 12.5A | 6.25A | 4.16A | 3.1A | |
| RATED POWER | 120W | ||||
| VOLTAGE TOLERANCE | ±0.5V | ||||
| INPUT | VOLTAGE RANGE | 100-135VAC / 170~265VAC | |||
| FREQUENCY RANGE | 50~60Hz | ||||
| POWER FACTOR(Typ.) | >0.75/110VAC, >0.8/220V | ||||
| EFFICIENCY(Typ.) | >85% | >86% | >86% | >87% | |
| AC CURRENT(Typ.) | 1.34A | 1.32A | 1.32A | 1.31A | |
| Leakage current | <0.6mA/110VAC, <0.70mA/220VAC | ||||
| PROTECTION | Short circuit | Hiccup mode, recovers automatically after fault condition is removed. |
|||
| Overload | ≤120% | ||||
| Over Current | ≤1.4*I out | ||||
| ENVIRONMENT | WORKING TEMP. | -40~+60℃ | |||
| WORKING HUMIDITY | 20~90%RH,non-condensing | ||||
efficient |
±0.03%/℃(0~50℃) | ||||
Vibration |
10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes |
||||
|
STORAGE TEMP., HUMIDITY |
-40~+80℃,10~95%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1 EN61347-2-13 | |||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||||
| EMC EMISSION | Compliance to EN55015,EN61000-3-2 (>50%load) | ||||
| EMC IMMUNITY | EN61000-4-2,3,4,5,6,11(Surge about 4KV) | ||||
| Others | Weight | 1.8Kg | |||
| Size | 226.5*77.5*47mm(L*W*H) | ||||
| packing | 440*295*145mm , 8 pcs/ctn | ||||
| Notes | 1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC input , rated load and 25℃of ambient temperature. 2..Tolerance:includes set us tolerance,line regulation and load regulation . |
||||
- Output constant voltage type
- Universal AC input/ :90~135VAC, 170-265VA
- High efficiency > 87%
- Protections:short circuit/over loading/over current
- Full protection aluminum housing/ IP67
- Easy installation
- Cooling by free air convection
- Work with leading edge and trailing edge triac dimmer
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for LEDs.
-

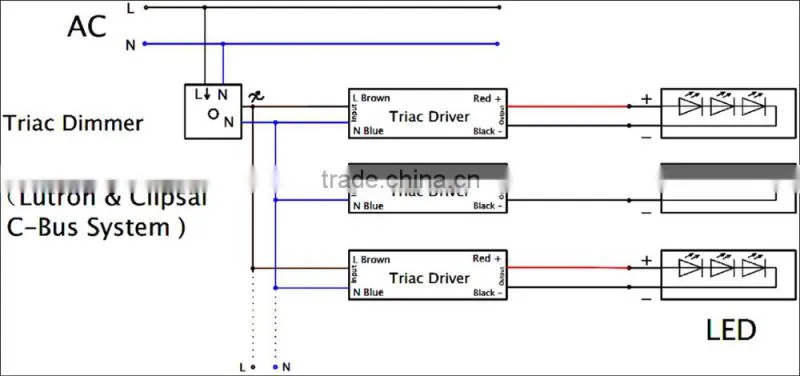

Output power level can be adjusted through input terminal of the AC phase line(L) by connecting a triac
dimmer. - Compatible with Leading edge or tailing edge triac dimmers.
- please try to use the small power dimmer in order to access to a wider dimming range because
- high-power dimmer is difficult to achieve the output current to zero

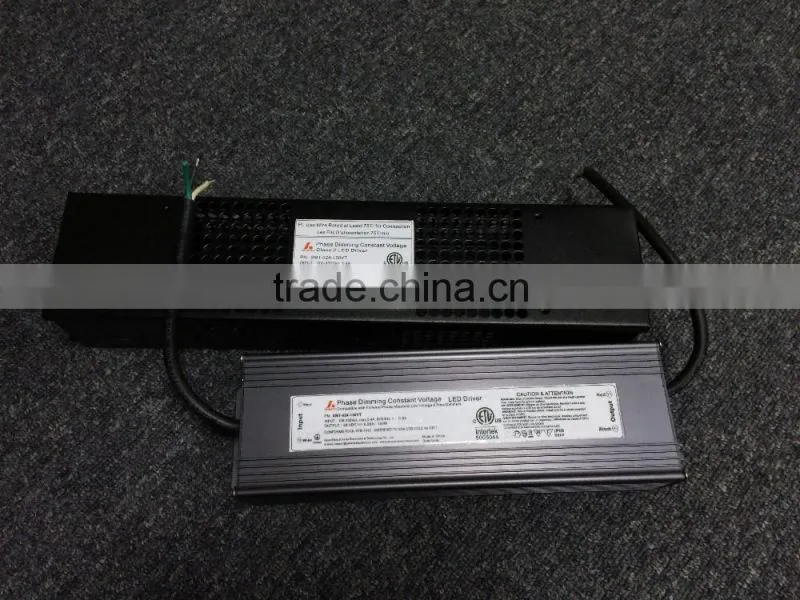

We can supply you ETL approved Junction boxes for all kinds of the LED drivers.
| N.W./pcs | G.W/ctn | Qty/ctn | Carton Size(mm) | ||||
| 150w 24v 6.3a dimmable power transformer 220v 24v / led power supply | |||||||
| 1.5kg/pcs | 17kg/ctn | 10pcs | 329**279*176mm | ||||
| |
|
What kind of LED Driver/Power Supply We do??
We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
|
Triac CC&CV Dimmable Series
|
0-10V CC&CV Dimmable Series
|
DALI CC&CV Dimmable Series
|
Smarts Electronics, the led driver manufacturer located in Quanzhou,has 6 years trade experience in Alibaba.
We have 7 kinds of led drivers or led power supply:
1.Constant Voltage LED Driver;
2.Constant Current LED Driver;
3.Triac CC&CV Dimmable LED Driver
4.0-10v CC&CV Dimmable LED Driver
5.DALI CC&CV Dimmable LED Driver
6.Power Adapter
7.Switching Power Supply
All of our drivers are got UL/cUL CE ROHS listed .OEM Welcome.
Our led drivers are widely used for:
1.Indoor LED illuminating lights
2.LED Neon, LED urban Decoration
3.LED Lighting Advertising,LED Display
4.Safety Protection Apparatus
5.Telecommunications, Networks
6.Vehicle Lights, Controller Panels
our market:
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
our sales team:
factory & equipments view:
certifications:
CE, UL/CUL, ROHS approval.
What Service we can supply??
-
All inquiries will be replied within 24 hours
-
Professional manufacturer,welcom to visit our website
- OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification; - After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production; - High efficiency,long life span,reasonable&competetative price,fast lead time;
- We have our engineer team, if you have any question about your LED applications, let us know freely.
Frequently Asked Questions
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
Q10.How to contact with me??
A9: Skype: sales5smt
Tel.:+86 (595) 2286 3721
***Any questions,Just feel free to click "send" to contact with me.^-^***
