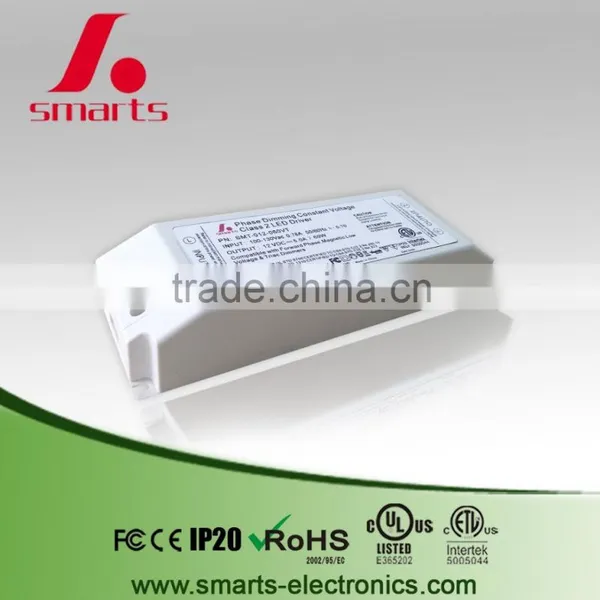

Phase Dimming ETL Ip20 Non Waterproof 60w Driver Led Plastic 12v

Phase Dimming ETL Ip20 Non Waterproof 60w Driver Led Plastic 12v thumbnail-1
Phase Dimming ETL Ip20 Non Waterproof 60w Driver Led Plastic 12v thumbnail-2
Phase Dimming ETL Ip20 Non Waterproof 60w Driver Led Plastic 12v thumbnail-3
Phase Dimming ETL Ip20 Non Waterproof 60w Driver Led Plastic 12v thumbnail-4
Phase Dimming ETL Ip20 Non Waterproof 60w Driver Led Plastic 12v thumbnail-5
Phase Dimming ETL Ip20 Non Waterproof 60w Driver Led Plastic 12v thumbnail-6
Phase Dimming ETL Ip20 Non Waterproof 60w Driver Led Plastic 12v photo-1
Phase Dimming ETL Ip20 Non Waterproof 60w Driver Led Plastic 12v photo-2
Phase Dimming ETL Ip20 Non Waterproof 60w Driver Led Plastic 12v photo-3
Phase Dimming ETL Ip20 Non Waterproof 60w Driver Led Plastic 12v photo-4
Phase Dimming ETL Ip20 Non Waterproof 60w Driver Led Plastic 12v photo-5
Phase Dimming ETL Ip20 Non Waterproof 60w Driver Led Plastic 12v photo-6
US$ 10 - 27 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
SMARTS
Model Number:
SMT-012-060VT
Contact Supplier Request Quote Chat Now
Quanzhou Smarts Electronic & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name SMARTS
Model Number SMT-012-060VT
Output Power Other, 60w
Output Type Single
Input Voltage Other, 90~135Vac/170~265Vac
Output Voltage 12Vdc
Output Frequency 47-63Hz
Output Current 5.0A

etl cul ul 12v 60w constant voltage dimmable led strip light driver

Product Description

model

SMT-012-060VT

SMT-024-060VT

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Rated current

5.00A

2.50A

Rated power

60W

60W

Input

Voltage Range

90~135V AC/170~265V AC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF>0.95/110V,PF>0.96/170V,PF>0.95/220V,PF>0.93/265V

Full Load Efficiency(Typ.)

>85%

>85%

AC Current(Typ.)

0.61A/110VAC, 0.58A/170VAC, 0.46A/220VAC, 0.41A/265VAC

Leakage current

<0.25mA/110V/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over voltage

<140VAC(90~135V) , <270VAC(170~265V)

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

efficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN-60950-1, EN61347-1/-2/-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (>50%load)

EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547

Alight industry level (surge4KV)

Others

Weight

About 0.34Kg

Size

180*60*34mm(L*W*H)

packing

324*298*176mm (L*W*H)

Notes

1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted  pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .





  • Input Brown with AC (L),Blue with AC(N),Green/Yellow with AC(G)
  • Output Red is(DIM+),Black is(DIM-)
  • Note: Any other requests we can customized.

Dimming Operation

  • Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
  • Compatible with Leading edge or tailing edge triac dimmers.
  • please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero

Derating Curve

  phase dimming ETL ip20 non waterproof 60w driver led plastic 12v



  • Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the running life.

Connecting Diagram

phase dimming ETL ip20 non waterproof 60w driver led plastic 12v

Simple Connection Diagram

phase dimming ETL ip20 non waterproof 60w driver led plastic 12v



Jumction Box

We can supply you ETL approved Junction boxes for all kinds of the LED drivers.

phase dimming ETL ip20 non waterproof 60w driver led plastic 12v

Packing and Shipping
N.W./pcs G.W/ctn Qty/ctn Carton Size(mm)
phase dimming ETL ip20 non waterproof 60w driver led plastic 12v
0.34kg/pcs 20kg/ctn 30pcs 324**298*176mm


MOQ: 1 pcs

Payment:

Delivery: 7 working days for sample order,12 working days for 500pcs

Shipping term: FedEx, DHL, UPS, TNT...

Price: Get quote
