Help CenterIntertek ETL 12v 24v 45w Dimmable Led Driver
Related Products
-
OEM Dimmable Led Power Supply 12v 12 Watt Transformer With CE ETL FCC ApprovalUS$ 4.5 - 9.5MOQ: 1 Piece -
ETL FCC 12V 2a 2.5a Led Display/ Module Magnetic Low Voltage Dimmable Power SupplyUS$ 10 - 14MOQ: 1 Piece
-
LED Driver ETL 12V Constant Voltage Led Power Supply 48W Phase Cut /triac Dimming DriverUS$ 1 - 17MOQ: 1 Piece
-
100-130vac 12v 60w MLV Phase Cut Dimmable Led Strip DriverUS$ 22 - 27MOQ: 1 Piece
-
48W Driver Triac Dimmable Class 2 Power Supply With ETL FCCUS$ 10 - 16MOQ: 1 Piece

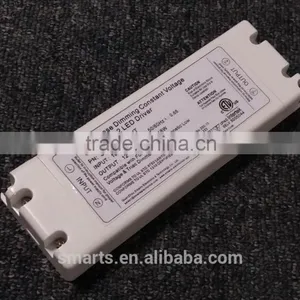

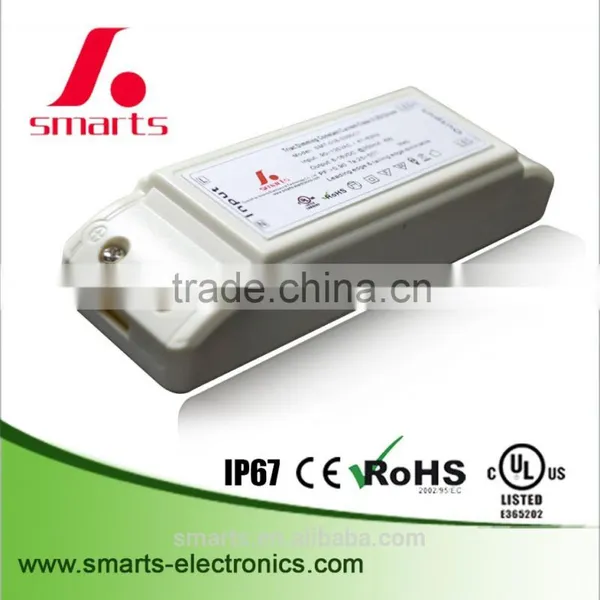

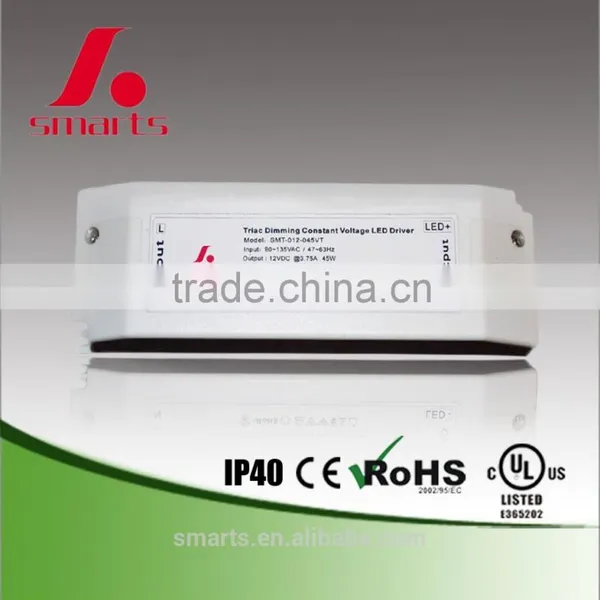

intertek ETL 12v 24v 45w dimmable led driver
model |
SMT-012-045VT |
SMT-024-045VT |
|
Output |
DC Voltage |
12V |
24V |
Voltage Accuracy |
±0.5V |
±0.5V |
|
Rated current |
3.75A |
1.87A |
|
Rated power |
45W |
45W |
|
Input |
Voltage Range |
90-135VAC/170~265VAC |
|
Frequency Range |
47~63HZ |
||
Power Factor ( Typ.) |
PF>0.94/120V,PF>0.95/220V, PF>0.93/265V |
||
Full Load Efficiency(Typ.) |
>84% |
>84% |
|
AC Current(Typ.) |
0.34A/120VAC 0.27A/220VAC 0.24A/265VAC |
||
Leakage current |
<0.25mA/120V/230VAC |
||
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
Over voltage |
<140VAC(90~135V) , <270VAC(170~265V) |
||
Environment |
Working TEMP. |
-40~+60℃ |
|
Working Humidity |
20~90%RH,non-condensing |
||
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
efficient |
±0.03%/℃(0~50℃) |
||
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
Safety&EMC |
Safety standards |
EN-60950-1. EN-61347-1/-2/-13 |
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (>50%load) |
||
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry level (surge4KV) |
||
Others |
Weight |
0.32Kg |
|
Size |
180*60*34mm(L*W*H) |
||
packing |
309*279*176mm |
||
Notes |
1. All parameters NOT specially mentioned are measured at 120VAC,220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3.Tolerance:includes set us tolerance,line regulation and load regulation . |
||

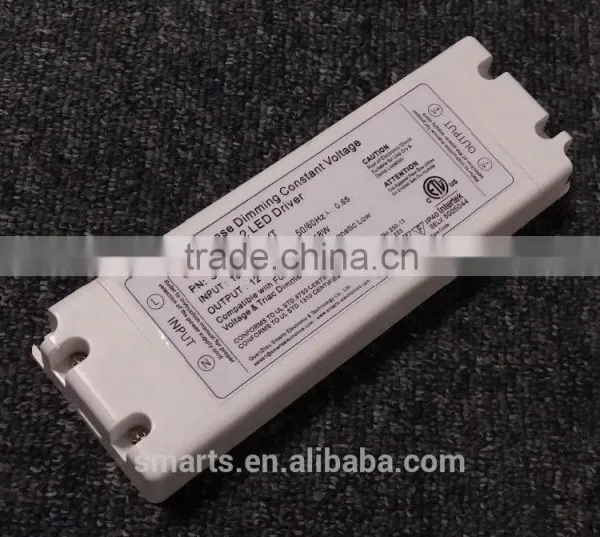

45W triac dimmable constant voltage LED driver Mechanical Specification
- Input Brown with AC (L),Blue with AC(N)
- Output Red is(DIM+),Black is(DIM-)
- Note: Any other requests we can customized.
Dimming Operation
- Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
- Compatible with Leading edge or tailing edge triac dimmers.
- please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero

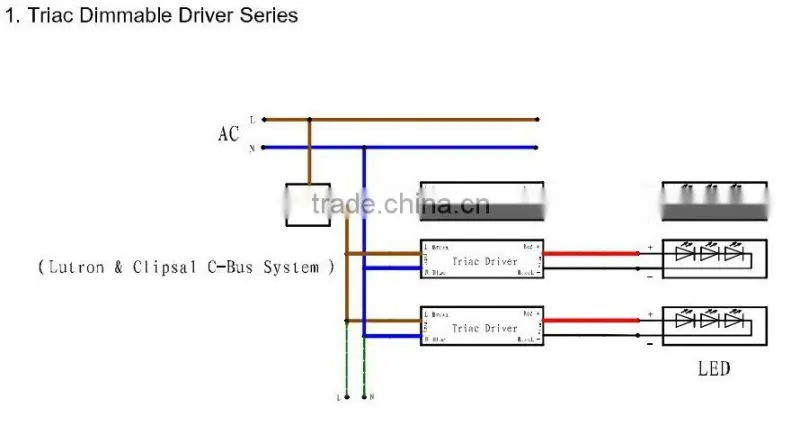

Connecting Diagram
Simple Connection Diagram

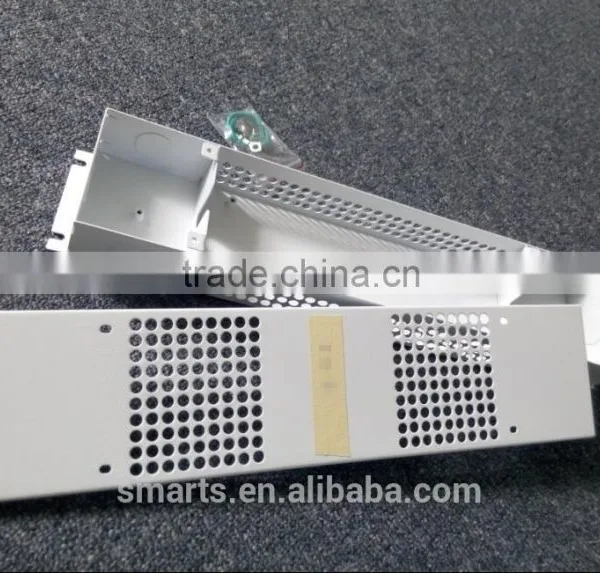

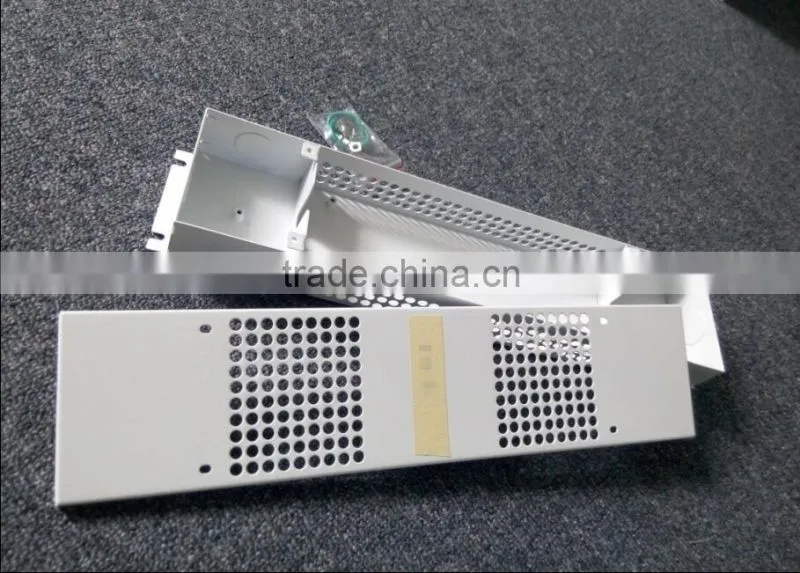

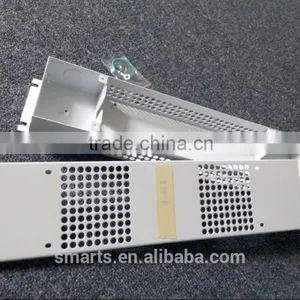

We can supply you ETL approved Junction boxes for all kinds of the LED drivers.
| intertek ETL 12v 24v 45w dimmable led driver | |||
| Net weight (g) | Gross Weight/ctn | Qty/ctn | Carton size(mm) |
| 320 g | 8 kg | 20 pcs | 309*279*176mm |
| |
|
What kind of LED Driver/Power Supply We do??
We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
|
Triac CC&CV Dimmable Series
|
0-10V CC&CV Dimmable Series
|
DALI CC&CV Dimmable Series
|
|
Constant Voltage Series
|
Enclosue Power Supply
|
Constant Current Series
|
Smarts Electronics, the led driver manufacturer located in Quanzhou,has 6 years trade experience in Alibaba.
We have 7 kinds of led drivers or led power supply:
1.Constant Voltage LED Driver;
2.Constant Current LED Driver;
3.Triac CC&CV Dimmable LED Driver
4.0-10v CC&CV Dimmable LED Driver
5.DALI CC&CV Dimmable LED Driver
6.Power Adapter
7.Switching Power Supply
All of our drivers are got UL/cUL CE ROHS listed .OEM Welcome.
Our led drivers are widely used for:
1.Indoor LED illuminating lights
2.LED Neon, LED urban Decoration
3.LED Lighting Advertising,LED Display
4.Safety Protection Apparatus
5.Telecommunications, Networks
6.Vehicle Lights, Controller Panels
our market:

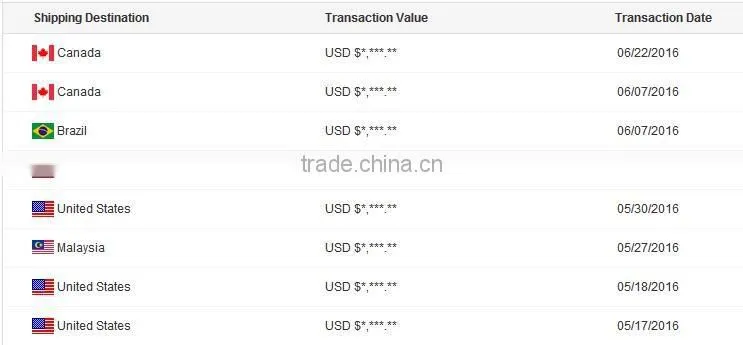

Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
our sales team:
factory & equipments view:
certifications:
CE, UL/CUL, ROHS approval.
What Service we can supply??
-
All inquiries will be replied within 24 hours
-
Professional manufacturer,welcom to visit our website
- OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification; - After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production; - High efficiency,long life span,reasonable&competetative price,fast lead time;
- We have our engineer team, if you have any question about your LED applications, let us know freely.
Frequently Asked Questions
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
Q10.How to contact with me??
A9: Skype: sales5smt
Tel.:+86 (595) 2286 3721
***Any questions,Just feel free to click "send" to contact with me.^-^***
