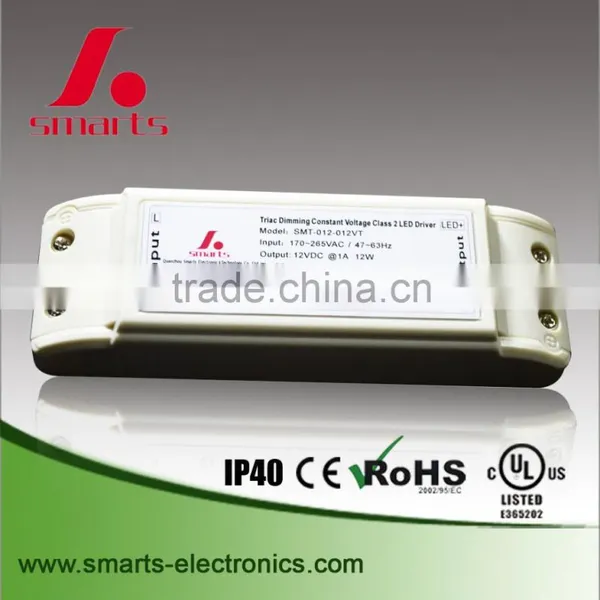

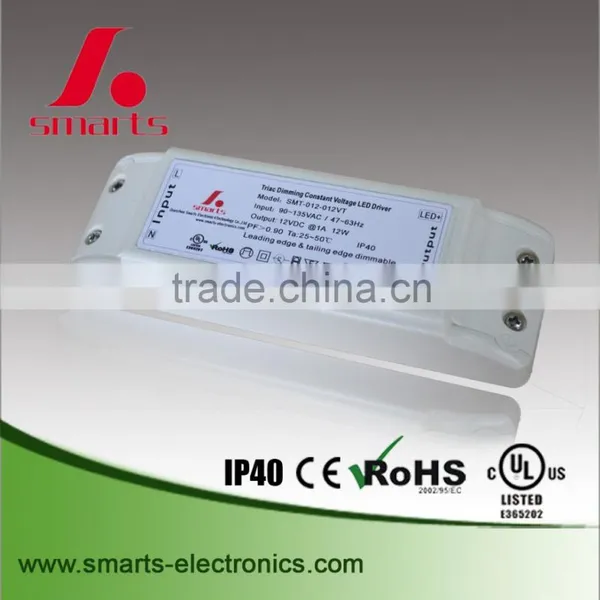

OEM dimmable led power supply 12v 12 watt transformer with CE ETL FCC approval
Feature
·Output constant voltage type
·Input range 100~130VAC / 170-265VAC
·Built-in PFC function >0.9
·Efficiency > 84%
·Protections:Short circuit/over Current
·Fully isolated plastic case
·Cooling by free air convection
·Easy Installation.
·Work with leading edge and trailing edge triac dimmers
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
Specification CE UL/cUL RoHS SELV IP67
Model | SMT-012-012VT | SMT-024-012VT | |
Output | DC Voltage | 12VDC | 24VDC |
Voltage Accuracy | ±5% | ±5% | |
Rated current | 1.0A | 0.5A | |
Rated power | 12W | 12W | |
Input | Voltage Range | 90-135VAC / 170~250VAC | |
Frequency Range | 47~63HZ | ||
Power Factor ( Typ.) | PF≥0.92/110V ; PF≥0.94/220V ; PF≥0.95/250V | ||
Full Load Efficiency(Typ.) | 81% | 82% | |
AC Current(Typ.) | 0.17A/110VAC 0.15A/170VAC 0.12A/220VAC 0.1A/265VAC | ||
Leakage current | <0.8mA/110VAC, <0.7mA/220VAC | ||
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
Over Current | 1.4 Times output current | ||
Environment | Working TEMP. | -40~+60℃ | |
Working Humidity | 20~90%RH,non-condensing | ||
Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
efficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
Safety& EMC | Safety standards | EN-60950-1, EN-61347-1/-2/-13 | |
Withstand voltage | I/P-O/P:3.75KVAC | ||
Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
EMC EMISSION | Compliance toEN55015,EN61000-3-2 (≥50%load) | ||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,11,EN61547,Alight industry level
| ||
Others | Weight | 0.16Kg | |
Size | 140*45*28mm(L*W*H) | ||
packing | 320*280*215mm | ||
Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature.
2.Tolerance: includes set us tolerance,line regulation and load regulation . | ||

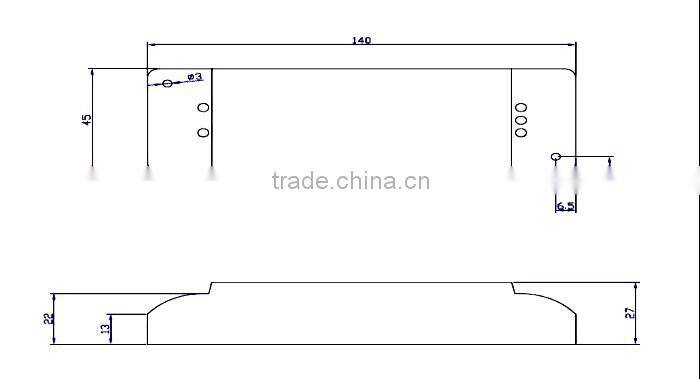

Mechanical Specification
Input AC (L),AC(N)
Output(DIM+),(DIM-)
Note: Any other requests we can customized.
Dimming Operation
Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
Compatible with Leading edge or tailing edge triac dimmers.
please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero

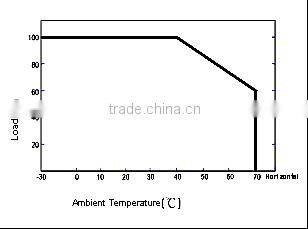

Derating Curve
Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life

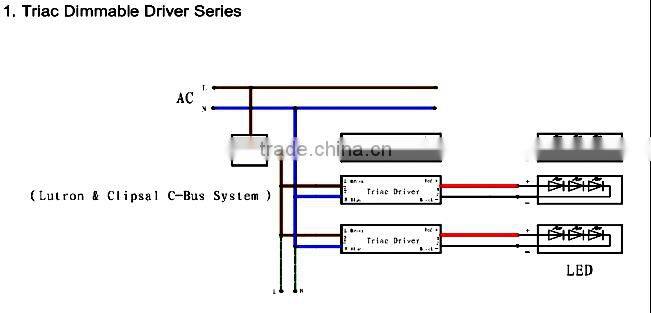

Connecting Diagram

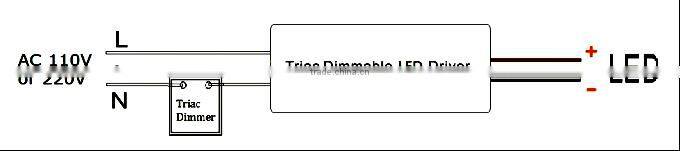

Simple Connection Diagram

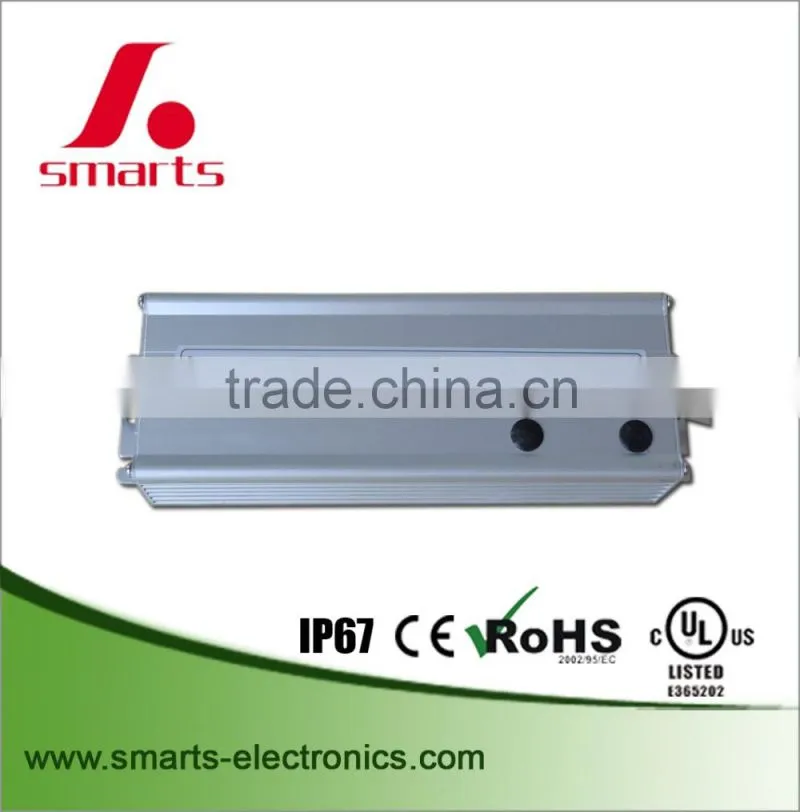

IP67 constant volatge led drivers
| constant current led drivers
| switching power supplies
|
triac dimmable led drivers
|
AC-DC adapter
|
DALI dimmable led drivers
|
what is the packing situation ??
MOQ: 1 PCS
Payment : T/T Western union Paypal Trade Assurance
Delivery : 7 working days for sample order , 12 working days for 500pcs
Shipping term : FedEx DHL UPS TNT
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd??
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity
power suppliers only.
2). Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.
3). We give 3 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
Website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
factory & equipments view:
Why choose us?
1. We are UL/cUL audited LED drivers/power supplies enterprise in China.
2. Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial experience. It will guarantee your order 100% safe!
3. Price is negotiable if you have large quantity demand.
4. 100% QC inspection Before Shipping.
5. Best Quality & Best Service with Competitive price.
6. Shipping will be the most economical for you and freight cost is informed in advance for your consideration.decision for the shipping terms will be made according to your requirements.
7. We have our engineer team, if you have any question about your LED applications, let us know freely, we will give you the best solution.
8. Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.
9. OEM design & OEM packing welcome.
10. Samples will be ready within 7 working days
Our service & FAQ
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 10pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: All are paid before production or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
Our goal is to provide you the right product and make you satisfied, so please don’t hesitate to contact us !
