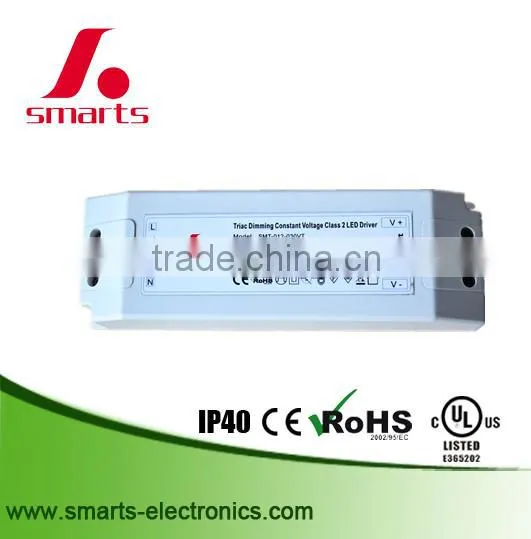

ETL FCC 12V 2a 2.5a Led Display/ Module Magnetic Low Voltage Dimmable Power Supply
model |
SMT-012-030VT |
SMT-024-030VT |
|
Output |
DC Voltage |
12VDC |
24VDC |
Voltage Accuracy |
±5% |
±5% |
|
Rated current |
1.66Amp |
0.83Amp |
|
Rated power |
30W |
30W |
|
Input |
Voltage Range |
90-135VAC, 180~250V AC |
|
Frequency Range |
47~63HZ |
||
Power Factor ( Typ.) |
PF>0.92/110V ; PF>0.93/220V ; PF>0.935/250V |
||
Full Load Efficiency(Typ.) |
>83% |
>84% |
|
AC Current(Typ.) |
0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC |
||
Leakage current |
<0.27mA/110VAC; <0.25mA/220VAC |
||
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
Over Current |
1.4 Times output current |
||
Environment |
Working TEMP. |
-40~+60℃ |
|
Working Humidity |
20~90%RH,non-condensing |
||
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
efficient |
±0.03%/℃(0~50℃) |
||
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
Safety&EMC |
Safety standards |
EN61347-2-13, EN62493, |
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (>50%load) |
||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level |
||
Others |
Weight |
0.40Kg |
|
Size |
180*60*35mm(L*W*H) |
||
packing |
355*215*215mm 20pcs/ctn |
||
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 230VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
Features:
--Output constant voltage type
--range 90~135Vac, 170-265VAC
--Built-in PFC function >0.9
--Efficiency >84%
--Protections:short circuit/over current
--Fully isolated plastic case
--Cooling by free air convection
--Work with leading edge and trailing edge TRIAC dimmers
--Easy installation
--Strong compatibility, flicker-free dimming
--Suitable for LED lighting and moving sign applications
--Compliance to worldwide safety regulations for lighting
~30W triac dimmable driver Mechanical Specification
**Input AC (L),AC(N)
**Output(DIM+),(DIM-)
~Dimming Operation
**Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
**Compatible with Leading edge or tailing edge triac dimmers.
**please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero
~Derating Curve
**Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life
~ Simple Connection Diagram
What's the other type power supply do you have???
Answer: We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
|
constant volatge led drivers
|
constant current led drivers
|
switching power supplies
|
|
AC-DC adapter
|
0-10v dimmable led drivers
|
DALI dimmable led drivers
|

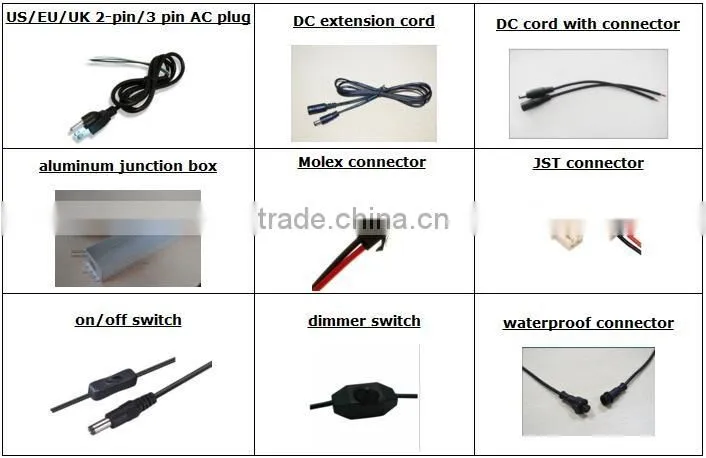

What kind of power cords we can help you fix in our LED Driver/Power Supply??
Answer: We can help you fix / find all kinds of power cords to our drivers as per your request, for example:
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd ???
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.
2). Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.
3). We give 3 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
Website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
our market
Our major markets are in EU & North America,it takes about 70% markets share. view transaction history
factory & equipments view:
What Service we can supply??
-
All inquiries will be replied within 24 hours
-
Professional manufacturer,welcom to visit our website
- OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification; - After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production; - High efficiency,long life span,reasonable&competetative price,fast lead time;
- We have our engineer team, if you have any question about your LED applications, let us know freely.
Frequently Asked Questions
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
Q10.How to contact with me??
A9: Skype: sales5smt
Tel.:+86 (595) 2286 3721
***Any questions,Just feel free to click "send" to contact with me.^-^***
