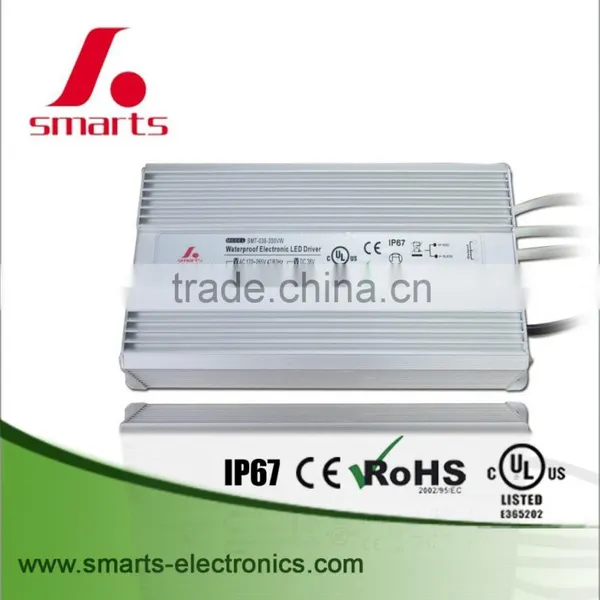

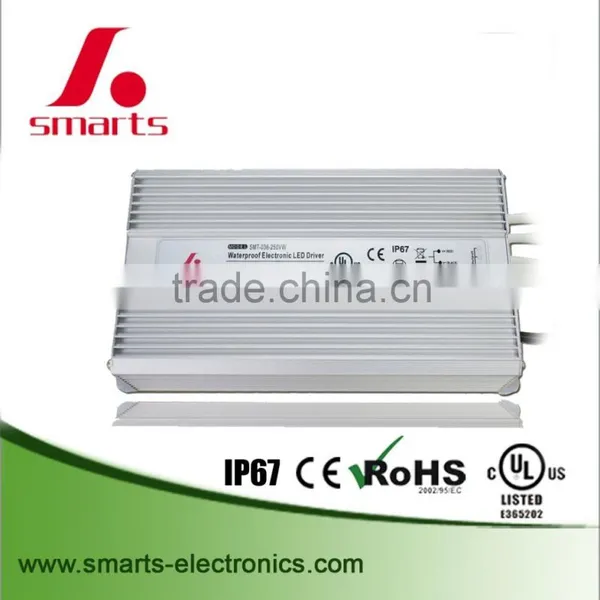

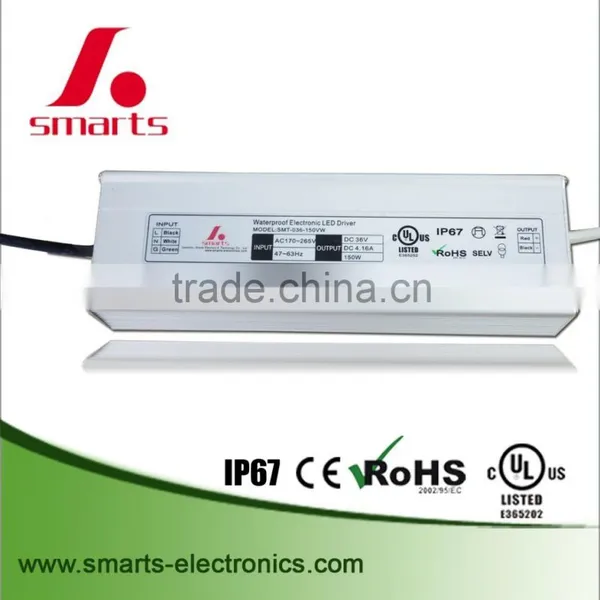

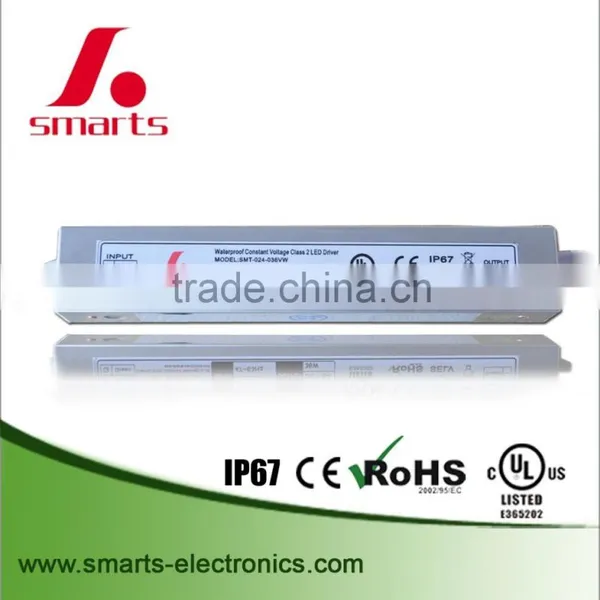

Help CenterConstant Voltage Transformer 127v DC 36V 100w IP67
Related Products
inner box-white box + outer carton- standard exporting carton for packing
Specifications:
1. Input voltage.:100~265vAC
2. Efficiency>82%
3. Warranty: 2 years
4. CE,UL,ROHS approval
5. product size: 200*68*53mm
6. Net weight::900g/pcs
7. Case material:aluminum
8. Waterproof rate: IP67
9. CE, UL&CUL, ROHS approval
Features:
- High efficiency,save energy ,protected environment
- High stability and low ripple, increase light efficiency and decrease light attenuation
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage
- Passed high ,low temperature and waterproof testing.
- Integrity protection,over loading, over voltage ,over current
- 8Hrs and 100% full load burn-in test.
Environment:
- Working temp,humidity: -25°C~+50°C,20%~90%RH
- storage temp,humidity: -20°C~+85°C,10%~95%RH non-condensing
- Withstand vibration: 10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
Safety:
- Withstand voltage: I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
- Isolated resistance: I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
- Safety standardp: Fit UL1012
- EMC standard: Comply with EN55022,CLASSA
Product parameters:
Model |
Input voltage(AC V) |
Working Frequency |
Output voltage |
Output Current |
Output power(DC W) |
Working Temp. |
Protection grade |

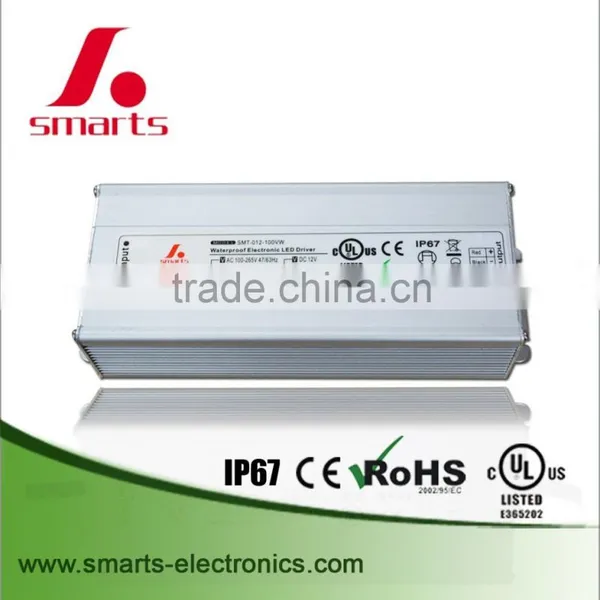

SMT-012-100VW |
100-265V |
47~63HZ |
12 |
8.33A |
100W |
-25~50°C |
IP67 |

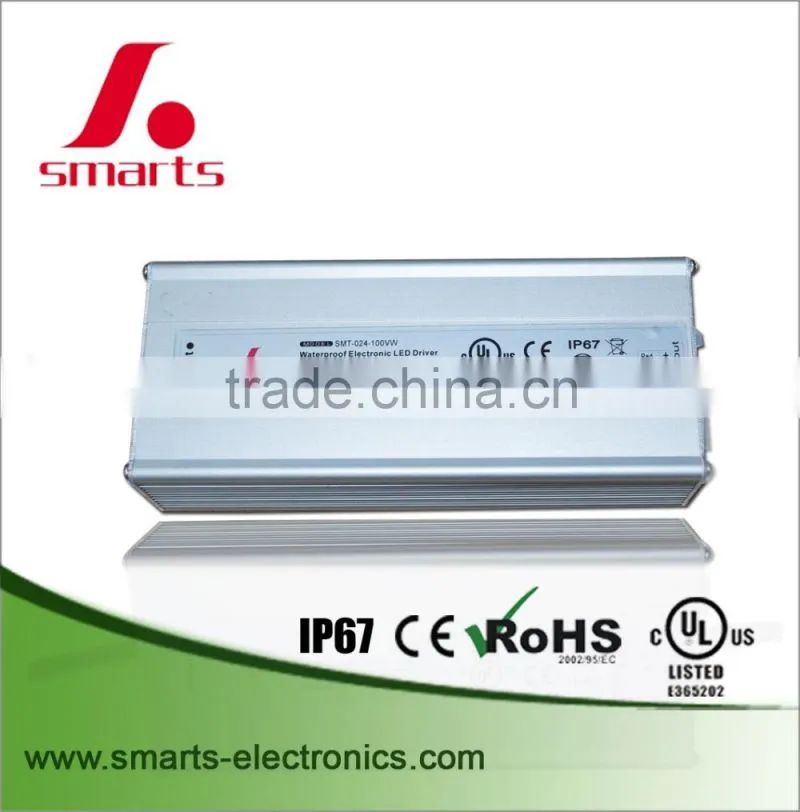

SMT-024-100VW |
100-265V |
47~63HZ |
24 |
4.17A |
100W |
-25~50°C |
IP67 |
SMT-036-100VW |
100-265V |
47~63HZ |
36 |
2.78A |
100W |
-25~50°C |
IP67 |
Applications:
Our products are widely used in various industries, such as
- indoor LED illuminating lights,
- LED Neon,
- LED urban Decoration
- LED Lighting Advertising,
- LED Display,
- Safety Protection Apparatus,
- Telecommunications,
- Networks,
- Vehicle Lights, Controller Panels, etc.
plastic cover constant cuerrent LED drivers
dimmable constant voltage & current led drivers
enclosure power supplies

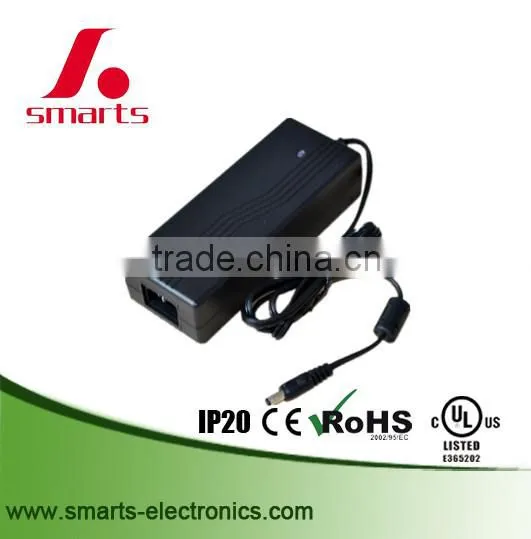

US UK EU wall type & desktop type power adapter
Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes... View detail website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
factory & equipments view:
packaging & shipping
inner box-white box + outer carton- standard exporting carton for packing
FAQ
Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
Q5. How about the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future
