Help Centerul Listed 60W Led Transformer
Related Products
Specifications
ul listed 60W led transformerwide scope input vltage 100-277vAC
CE,UL,TUV,GS,BS,ROHS
2 years warranty
ul listed 60W led transformer
Specifications
1) compact designing, reliable quality
2) wide scope input vltage 100-277vAC
3) 2 years warranty
4)CE,UL,TUV,GS,BS,ROHS cert.

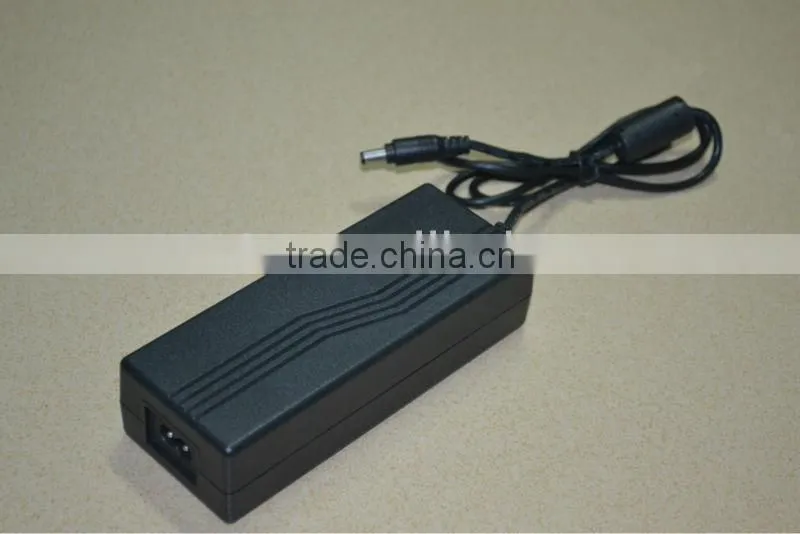

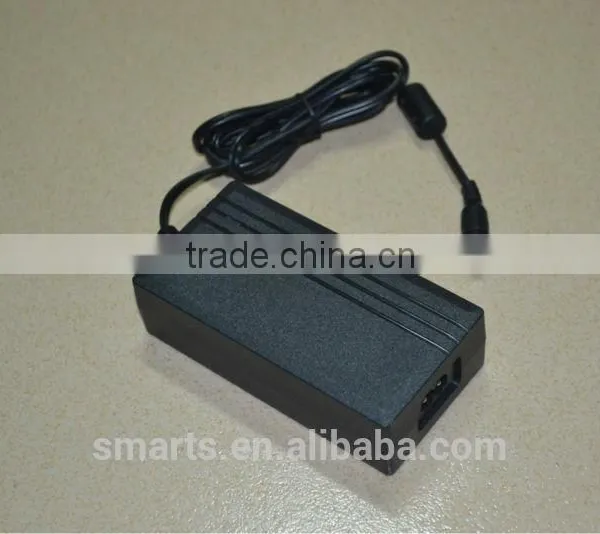

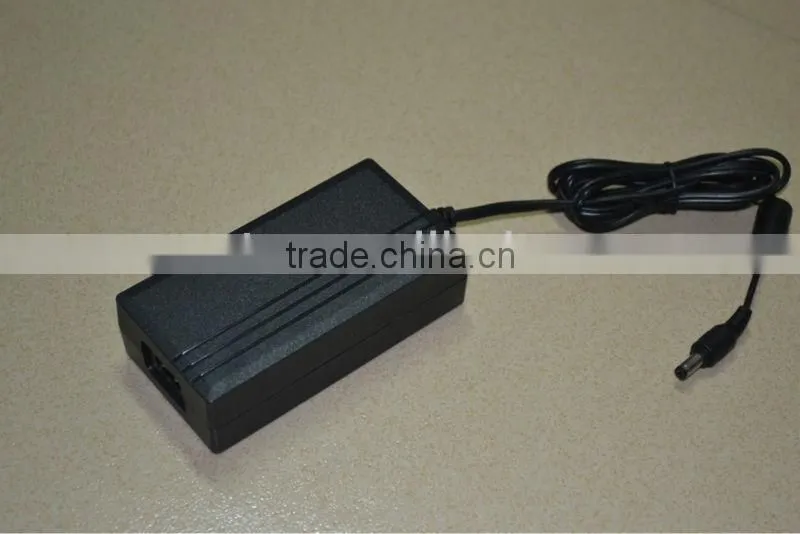

SMTS-60W series (AC/DC single output desktop type switching power supply)
• 3 pole AC inlet IEC320-C14 • Fully enclosed plastic case
• Class I power (with earth pin) • Pass LPS for 16~48V
• Full output 5~48V safety approved • LED indicator for power on
• Protections: Short circuit / Overload / • Approvals: UL / CUL / CE
Over voltage • 2 year warranty
General Specification
Item No.: |
SMTS-60W series |
AC input voltage range ............. 100~240VAC / 1.9A
AC inrush current (max.) ........... Cold start, <40A at 230VAC
Overload protection................... Hiccup mode, auto-recovery
Over voltage protection .............110~140% rated output voltage
Hold up time...............................16ms at full load
Withstand voltage...................... I/P-O/P: 42VDC, 1minute
Working temperature..................0~40°C @ 100% load, 50°C @ 70% load
Safety standards........................ UL1950, TUV EN60950-1 approved
EMC standards.......................... EN55022-B, EN61000-3-2,3
Length of output cable................180cm of SPT-1,18AWG x2C
Standard DC plug....................... P2J: 2.1x5.5x10mm / C+, barrel type
Item No. |
output |
Tol. |
R&N |
Effi. |
|
SMTS-60W-001 SMTS-60W-002 SMTS-60W-003 SMTS-60W-004 |
5V / 0~8.50A |
±6% |
50mV |
70% |
7.5V/ 0~6.4A |
±5% |
80mV |
75% |
|
9V/ 0~5.55A |
±5% |
80mV |
75% |
|
12V, 0~5.50A |
±5% |
80mV |
78% |
|
15V, 0~4.40A |
±3% |
100mV |
80% |
|
18V, 0~3.66A |
±3% |
150mV |
83% |
|
24V / 0~2.75A |
±2% |
150mV |
82% |
|
48V, 0~1.37A |
±2% |
150mV |
82% |

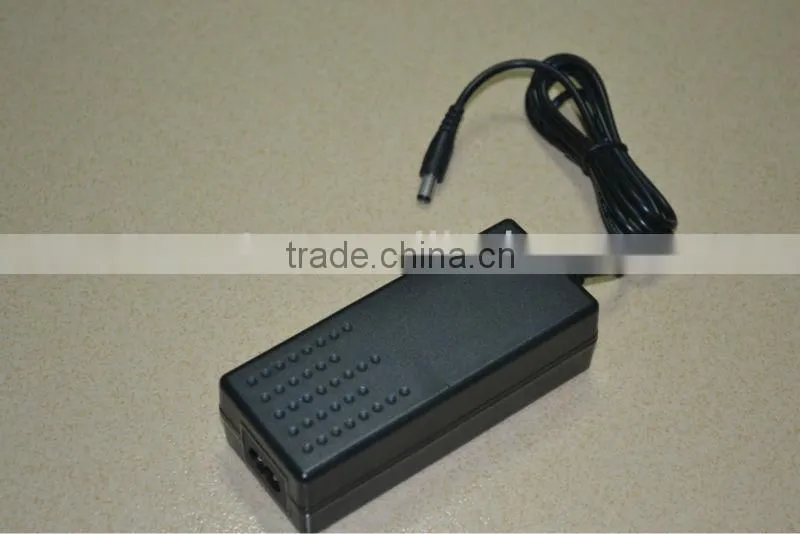

desktop power supply
input voltage: 100-240vAC, 47~63Hz
output voltage: 12vDC , 24vDC, 36vDC, 48vDC
power: 60w, 72w, 90w
desktop power supply
input voltage: 100-240vAC, 47~63Hz
output voltage: 12vDC , 24vDC, 36vDC, 48vDC
power: 24w, 30w, 36w
(light up LED strips available)
desktop power supply
input voltage: 100-240vAC, 47~63Hz
output voltage: 12vDC , 18vDC, 24vDC, 36vDC, 48vDC
power: 90W, 100W, 120W
(LED strip lights available)
