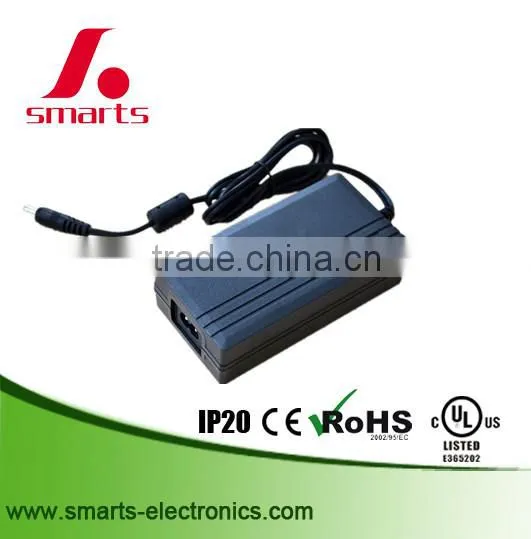

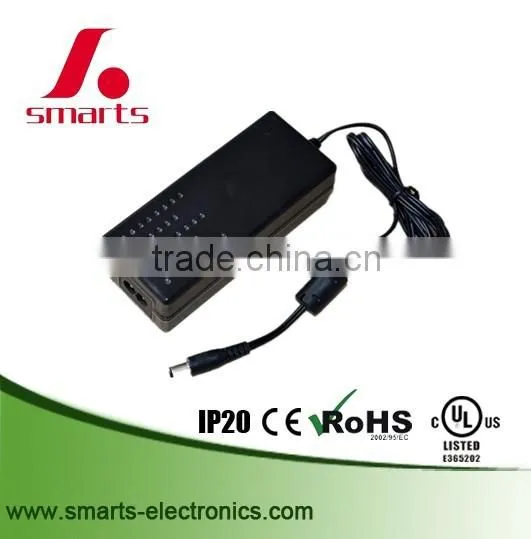

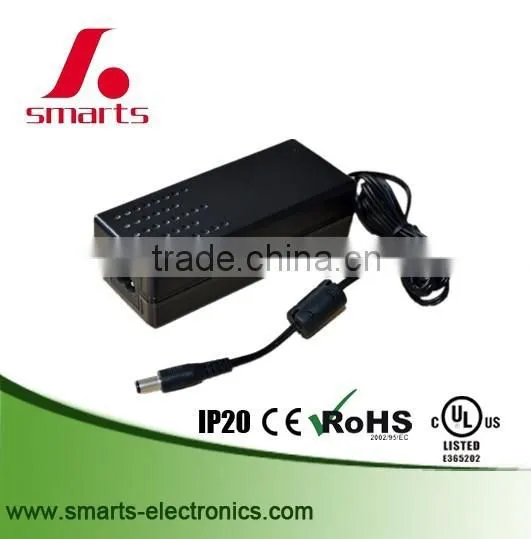

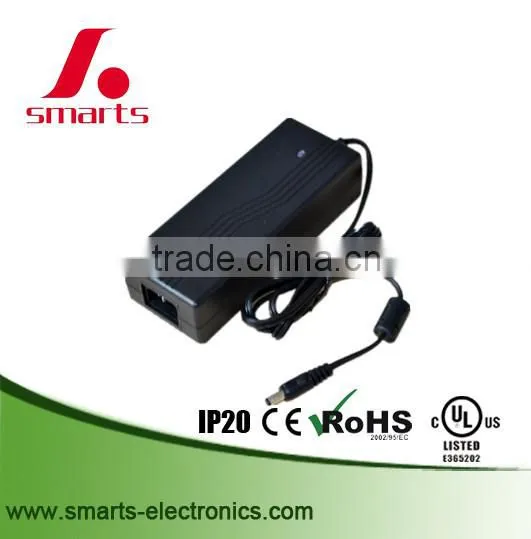

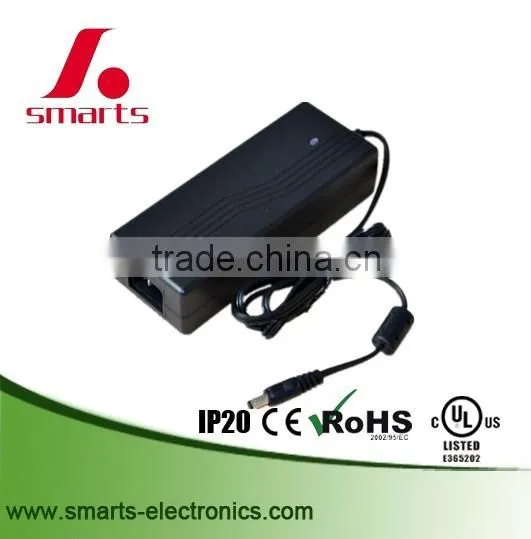

UL approved 12v 30w desktop type smps
Specifications:
- AC-DC power adapter
- output: 12v, ; Universal AC input:100-240v;47-63Hz
- Low ripple&noise regulation
- Ac cord;EU/UL standard ac plug,
- DC cord:1.2m EU/UL/UK standard cord with male plug
Features:
- Protections: Short circuit / Overload
- No load power consumption < 0.5W /Over voltage
- 2 or 3 pole US / European type plug
- Fully enclosed plastic case IP20
- Class II power (without earth pin)
- CE,UL ROHSapproval
- 1.5 years warranty
General Specification:
- AC input voltage range ............. 100~240VAC / 0.5A for18W; 100~240VAC / 0.7A for 25W
- AC inrush current (max.) ........... Cold start, <30A peak at 115VAC or <50A peak at 230VAC
- Overload protection................... Hiccup mode, auto-recovery
- Over voltage protection ............. Clamp by zener diode > 120%
- Withstand voltage...................... I/P-O/P: 4242VDC, 1minute
- Working temperature.................. 0~40°C @ 100% load, 50°C @ 70% load
- Safety standards........................ EN61347-1-2, UL60950-1, CSA 22.2, TUV EN60950-1
- EMC standards.......................... EN55022-B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,11
- Length of output cable................ 180cm of UL1185, 20AWG
- Standard DC plug....................... P1J: 2.1øx5.5øx10mm or 2.5øx5.5øx10mm / -C+, turning fork type
model No. |
output voltage |
Current |
power |
Tol. |
R&N |
Effi. |
SMT-012-030VP |
12V |
2.5A |
30W |
±3% |
80mV |
>82% |
SMT-024-030VP |
24V |
1.25A |
30W |
±2% |
180mV |
>82% |
SMT-036-030VP |
36V |
0.83A |
30W |
±2% |
240mV |
>82% |
SMT-048-030VP |
48V |
0.625A |
30W |
±2% |
240mV |
>82% |
UL approved 12v 30w desktop type smps
constant voltage LED drivers
plastic cover constant cuerrent LED drivers
dimmable constant voltage & current led drivers
enclosure power supplies
Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes... View detail website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
factory & equipments view:
packaging & shipping
inner box-white box + outer carton- standard exporting carton for packing
