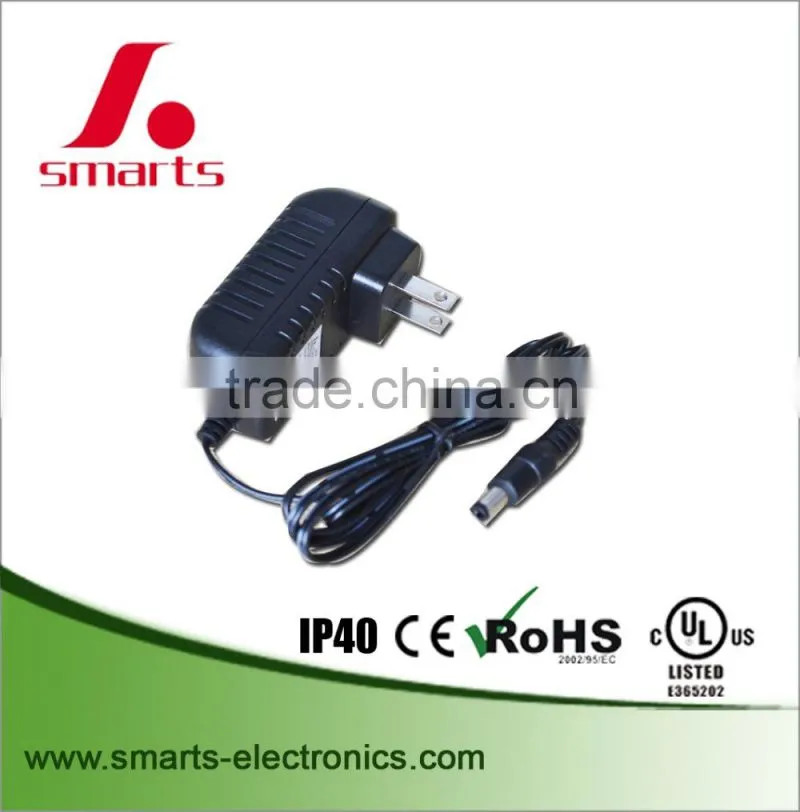

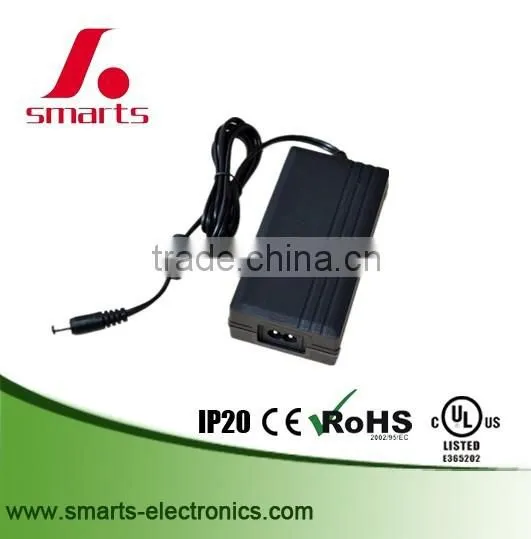

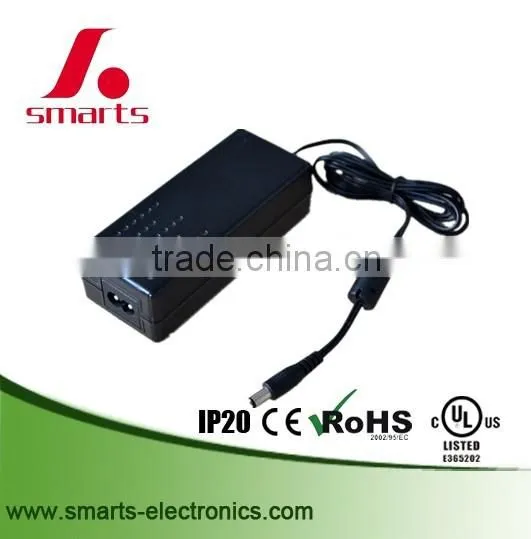

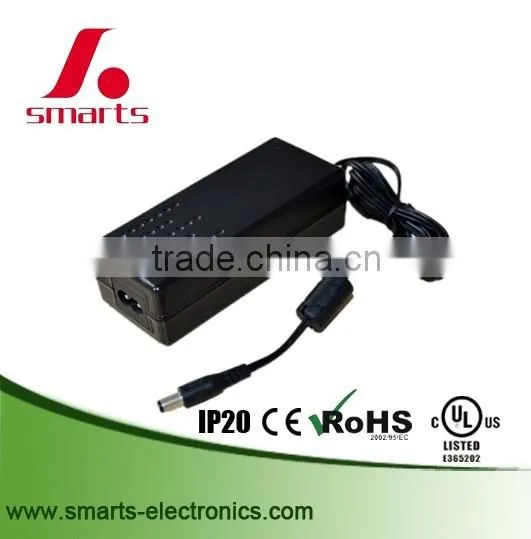

US standard AC 100-240V 12V LED strips transformer 72w
Specifications:
- AC-DC power adapter
- output: ,12v ; Universal AC input:100-240v;47-63Hz
- Low ripple&noise regulation
- Ac cord;EU/UL standard ac plug,
- DC cord:1.2m EU/UL standard cord with male plug
Features:
- Protections: Short circuit / Overload
- No load power consumption < 0.5W /Over voltage
- 2 or 3 pole US / European type plug
- Fully enclosed plastic case IP20
- Class II power (without earth pin)
- CE,UL approval
- 2 years warranty
General Specification:
- AC input voltage range ............. 100~240VAC / 0.5A for18W; 100~240VAC / 0.7A for 25W
- AC inrush current (max.) ........... Cold start, <30A peak at 115VAC or <50A peak at 230VAC
- Overload protection................... Hiccup mode, auto-recovery
- Over voltage protection ............. Clamp by zener diode > 120%
- Withstand voltage...................... I/P-O/P: 4242VDC, 1minute
- Working temperature.................. 0~40°C @ 100% load, 50°C @ 70% load
- Safety standards........................ EN61347-1-2, UL60950-1, CSA 22.2, TUV EN60950-1
- EMC standards.......................... EN55022-B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,11
- Length of output cable................ 180cm of UL1185, 20AWG
- Standard DC plug....................... P1J: 2.1øx5.5øx10mm or 2.5øx5.5øx10mm / -C+, turning fork type
parameter:
model |
output voltage |
Current |
power |
Tol. |
R&N |
Effi. |
SMT-012-072VP |
12V |
6A |
72W |
±3% |
80mV |
>82% |
SMT-024-072VP |
24V |
3A |
72W |
±2% |
180mV |
>82% |
SMT-036-072VP |
36V |
2A |
72W |
±2% |
240mV |
>82% |
SMT-048-072VP |
48V |
1.5A |
72W |
±2% |
240mV |
>82% |
US standard AC 100-240V 12V LED strips transformer 72w

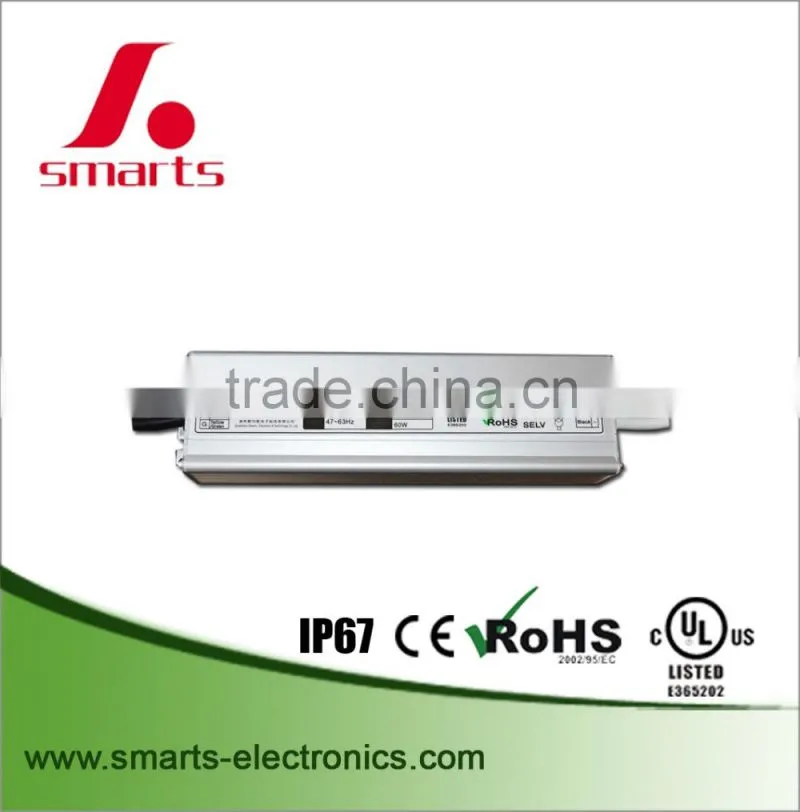

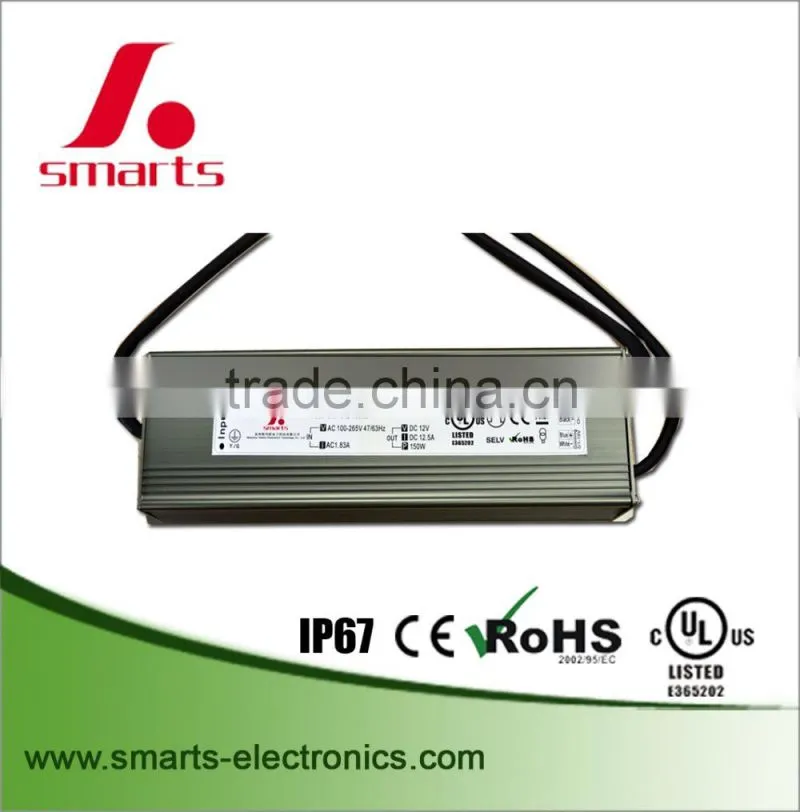

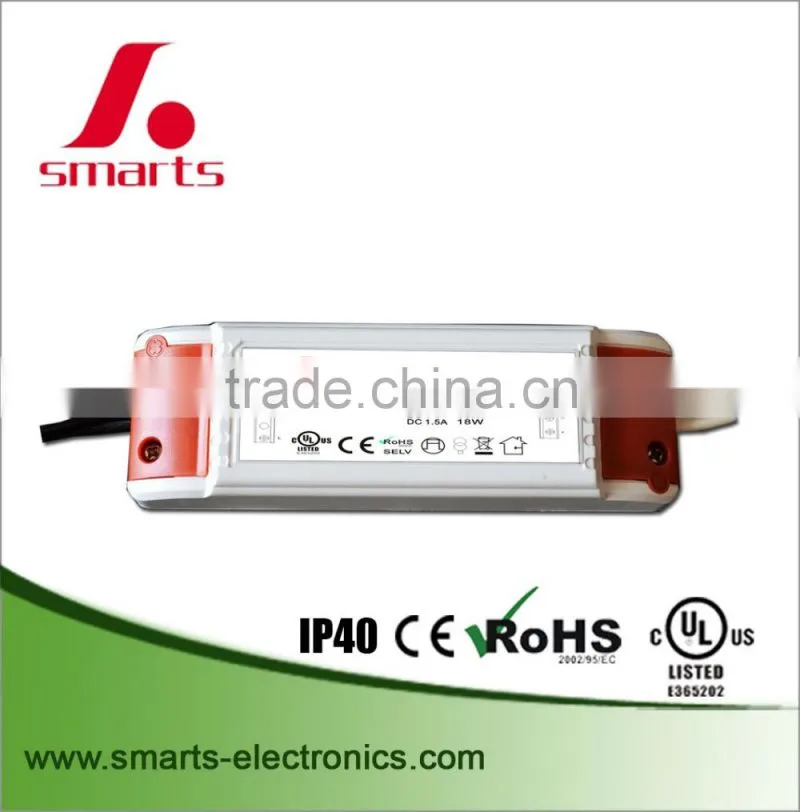

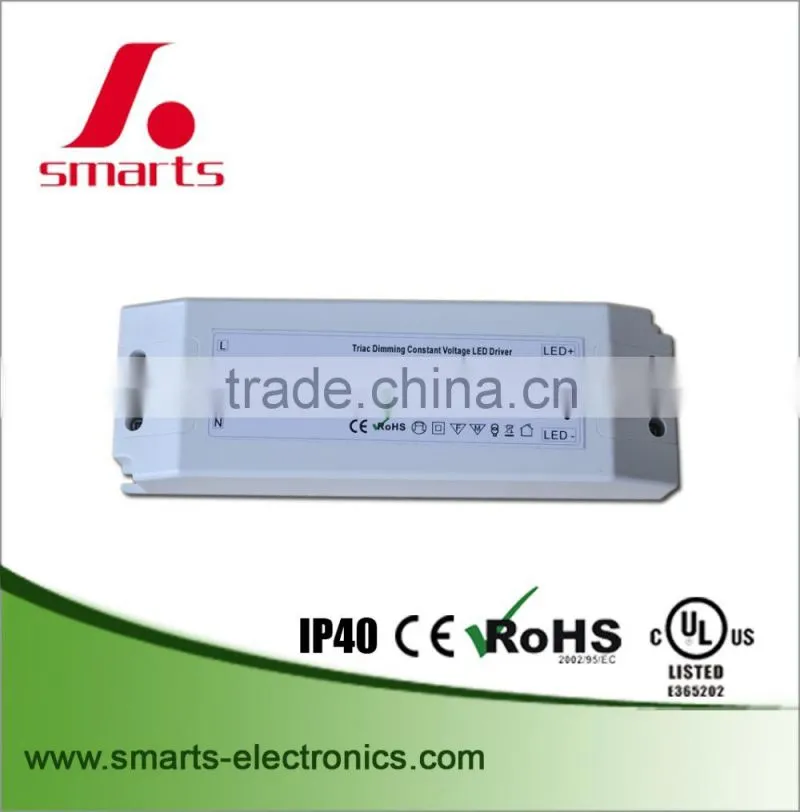

constant voltage LED drivers

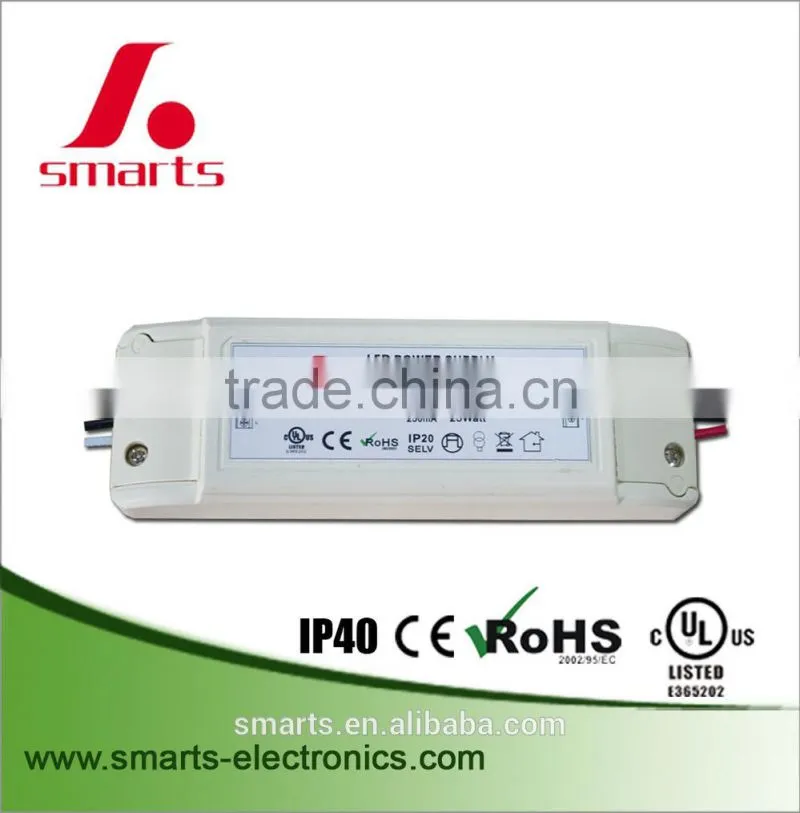

plastic cover constant cuerrent LED drivers
dimmable constant voltage & current led drivers

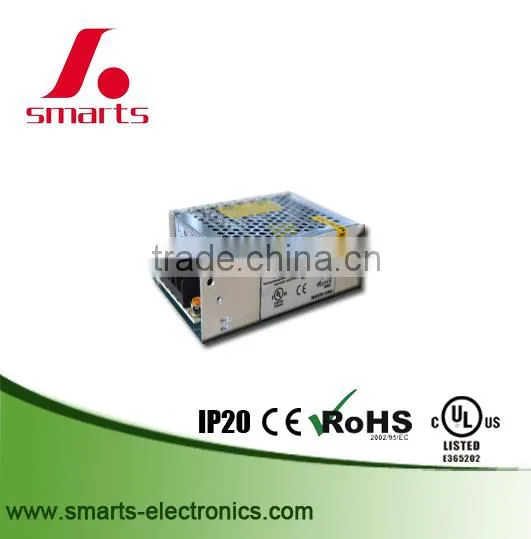

enclosure power supplies

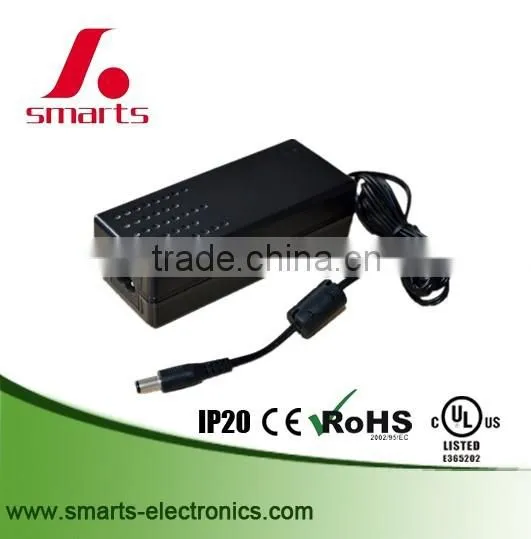

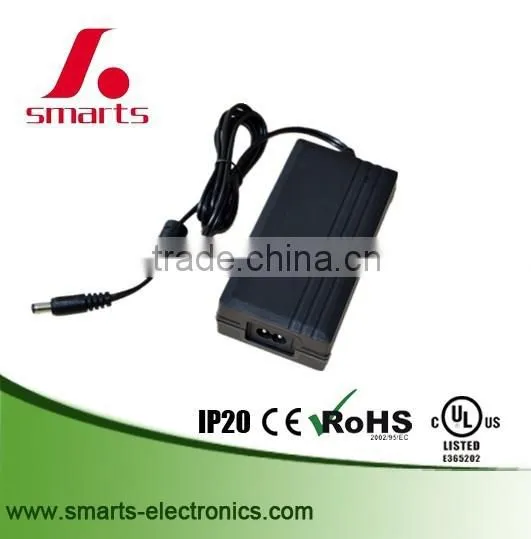

US UK EU wall type & desktop type power adapter
Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes... View detail website:
our team:
certifications:
CE, UL/CUL, ROHS approval.

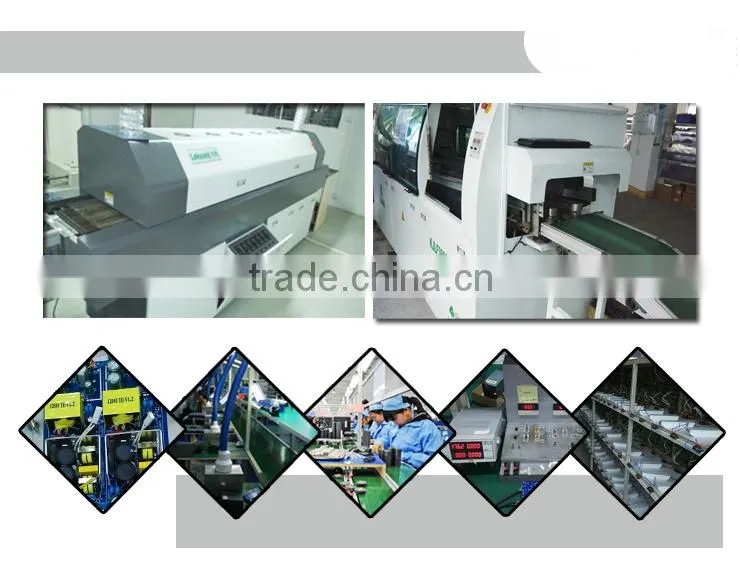

factory & equipments view:

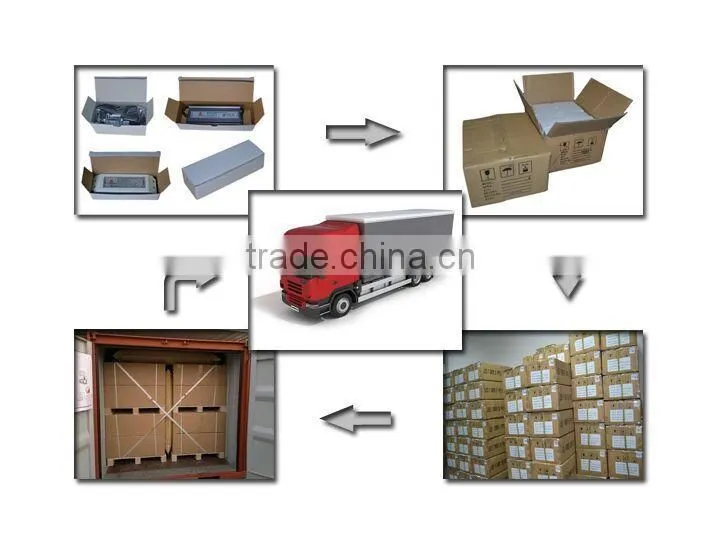

packaging & shipping
inner box-white box + outer carton- standard exporting carton for packing
Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method.
Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
Q5. How about the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future.
