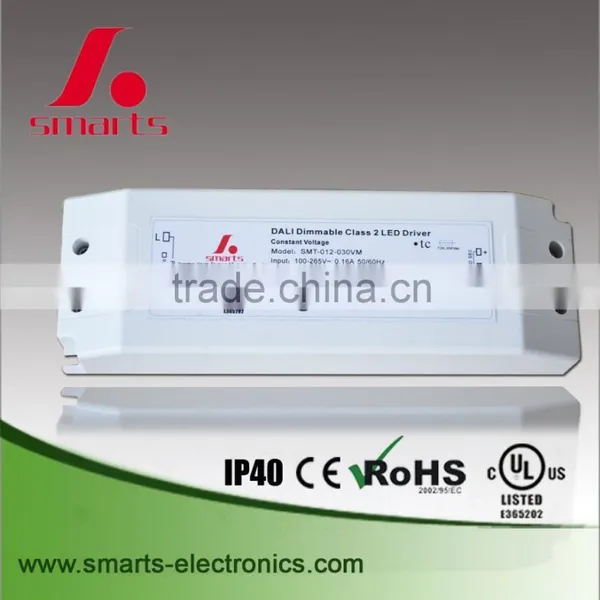

pf 0.95 CE ul 45w Single Output 110v ac dc 12V Led Panel Dali Dimming Driver photo-2

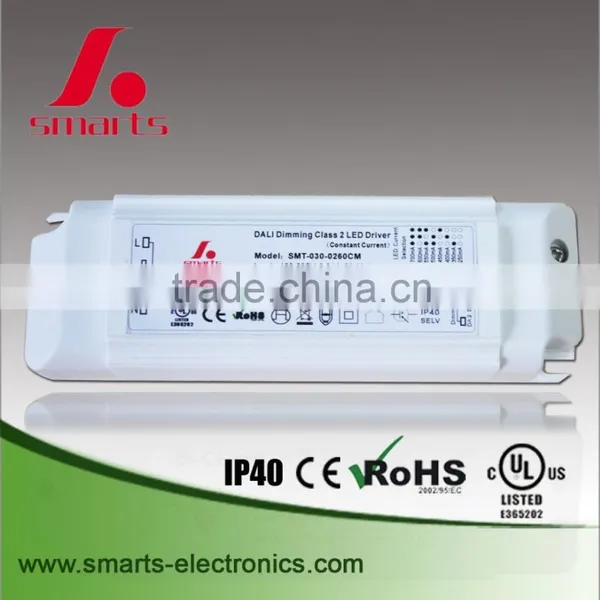

pf 0.95 CE ul 45w Single Output 110v ac dc 12V Led Panel Dali Dimming Driver photo-3

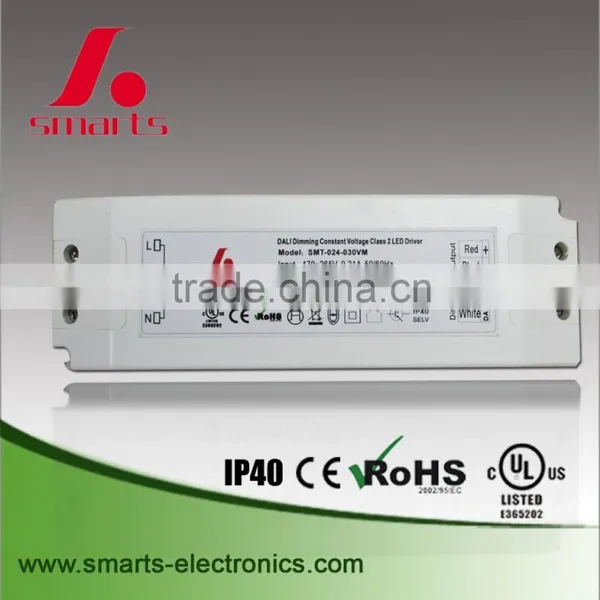

pf 0.95 CE ul 45w Single Output 110v ac dc 12V Led Panel Dali Dimming Driver photo-4

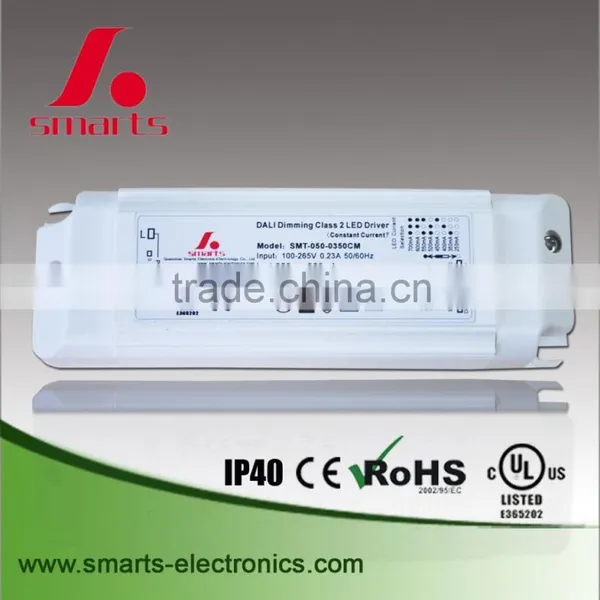

pf 0.95 CE ul 45w Single Output 110v ac dc 12V Led Panel Dali Dimming Driver photo-5

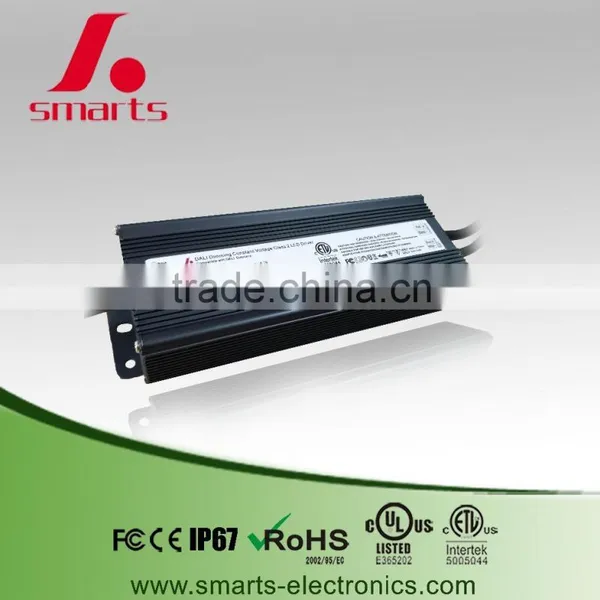

pf 0.95 CE ul 45w Single Output 110v ac dc 12V Led Panel Dali Dimming Driver photo-6
US$ 38 - 42 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
SMARTS
Model Number:
SMT-012-045VM
Contact Supplier Request Quote Chat Now
Quanzhou Smarts Electronic & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name SMARTS
Model Number SMT-012-045VM
Output Power Other, 45W
Output Type Single
Input Voltage Other, 100~265Vac
Output Voltage 12Vdc
Output Frequency 47-63Hz
Output Current 3.75a

pf 0.95 CE ul 45w single output 110v ac dc 12V led panel dali dimming driver

Product Description

  Specifications:

  1. AC-DC DALI Dimmable LED Driver
  2. wide input volt and freq: 100-265vAC /47~63Hz
  3. Ambient temp.:-20 degree~40 degree  @ full load
  4. Efficiency > 88%
  5. PF>0.90
  6. size: 180*60*34mm
  7. waterproof rate: IP40
  8. packing: 20pcs/ctn
  9. Vi=110/220V
  10. THD:<10%
  11. 3 years warranty
  12. Isolated Designing solution

Product Features:

1.Universal AC input (100~265V)

2.Protections: Short circuit/Overload/Over voltage/Over temp.

3.Built-in active PFC function

ing standard: Ul1310 Class 2 power unit

6.Cooling by nature

7.Suitable for dry location

8.Suitable for LED lighting and moving sign applications

9.Follow the global lighting safety regulations



Environment parameter:

1. Working temperature:-40 -80°C

2. Store temperature:-40 -85°C

3. Working humidity:10-90%

4. Lifespan:(MTBF)50,000 hours

5. Case machine specifications

6. Case: plastic case



Safety :

  1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
  2. Withstand Voltage : I/P-O/P: 3000KVAC
  3. Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Product parameters:

        Item No.

Input voltage(vAC)

Working Frequency
(Hz)

Output voltage
(vDC)

Output Current

power(Watt)

Working Temp.

IP rate

SMT-012-045VM

100-265vAC

47~63Hz

12V

3.75A

45W

-25~50°C

IP40

SMT-024-045VM

100-265vAC

47~63Hz

24V

1.875A

45W

-25~50°C

IP40



Applications:

Our products are widely used in various industries, such as

  1. indoor/outdoor LED illuminating lights,
  2. LED Neon,
  3. LED urban Decoration
  4. LED Lighting Advertising,
  5. LED Display,
  6. Safety Protection Apparatus,
  7. Telecommunications,
  8. Networks,
  9. Vehicle Lights, Controller Panels, etc.

 connecting diagram of pf 0.95 CE ul 45w single output 110v ac dc 12V led dali dimming driver

pf 0.95 CE ul 45w single output 110v ac dc 12V led panel dali dimming driver

related power cord

we can help you fix / find all kinds of power cords to our drivers as per your request, for example:

pf 0.95 CE ul 45w single output 110v ac dc 12V led panel dali dimming driver

hot sale products



If you are interested in our other series products, please hit bellow products links for details...



Wattage



  1.  waterproof CV/CV series --- 6W~300W

  2.  plastic CV/CC series        --- 3W~50W

  3.  dimmable CC/CV series   --- 6W~200W

  4.  metal case smps series   ---12W~800W

  5.  ac dc adapter series        --- 6W~120W


  Series  reference hot sale products date link
  waterproof ip67 CV/CC series

CV:  12v/24v 12w,  12v/24v 30w,  12v/24v 60w,  12v/24v 200w



CC:  DC20-40v @300ma 12W,   DC12-25v @700ma 17.5W

plastic ip20 CV/CC Series

CV:  12v/24v 15w,   12v/24v 18w,   12v/24v 30w,   12v/24v 36w



CC:  20-30v @300ma 9w,  500ma 20w,    700ma 35w
triac dimmable CV /CC Series

CV: 12V 12W,  12V 45W,  12V/24V 80W,  12V/24v 120W, 12V 200W



CC: 20-45V @320ma 14w,  20-35v @350ma 12w,   700ma 35w
0-10v dimmable CC/ CV series

CV:  12v 20w, 12v 36w, 12v 60w,  12v 100w, 12v/24v 120w



CC: 700ma 17.5w,   350ma 30w, 900ma 45w
DALI dimmable Series

CV: 12v 30w,   12v 100w,   12v 200w



CC: DC30-50v @300ma 15w,     DC30-65v @700ma  45w
metal case smps Series

5V/12V/24V/36V/48VDC: 15w,  50w,   120w,   200w,  150w, 350w,   500w
ac dc adaper Series

12V/24VDC:  6w,    12w,   18w,   60w,   72w,   100w
Packaging & Shipping

inner box-white box + outer carton- standard exporting carton for packing

pf 0.95 CE ul 45w single output 110v ac dc 12V led panel dali dimming driver

pf 0.95 CE ul 45w single output 110v ac dc 12V led panel dali dimming driver

Company Information

Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd ???



1).  Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.



2).  Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.



3).  We give 3 years warranty



4).  We accept trial orders begining..



5). We  have an area of 2000 square meters factory,  about 300-500 production staff. ..

Website:



our team:

pf 0.95 CE ul 45w single output 110v ac dc 12V led panel dali dimming driver



certifications:

CE, UL/CUL, ROHS approval.

pf 0.95 CE ul 45w single output 110v ac dc 12V led panel dali dimming driver

our market

Our major markets are in EU & North America,it takes about 70% markets share. view  transaction history



pf 0.95 CE ul 45w single output 110v ac dc 12V led panel dali dimming driver



factory & equipments view:

pf 0.95 CE ul 45w single output 110v ac dc 12V led panel dali dimming driverpf 0.95 CE ul 45w single output 110v ac dc 12V led panel dali dimming driver

our services & FAQ

Our service & FAQ



Q1.    What's the trade terms you can do??
A1:    We accept EXW,FOB..(Optional)

Q2.    What's shipping mode can we choose?
A2:    Express, Ocean and air transportation (optional).

Q3.    What's the MOQ?
A3:    Our MOQ is 10pcs. better price for large quantity;

Q4.    What can you do if the product is broken?
A4:    We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5.    Can i get products with my own logo??
A5:    Sure, you can, MOQ is 500pcs.



Q6.    Can i get a sample for testing??
A6:    Sure, but sample fees should be charged on your account.

Q7.    What's the mormal lead time??
A7:    7 working days for samples, 15 working days for mass production.

Q8.    What's the payment conditon?
A8:    All are paid before production or 30% deposit and 70% before delivery (optional)

Q9.    What's the Payment do you have?
A9:    We accept payment be sent via T/T, L/C,  Trade Assurance, WESTERN UNION, PAYPAL.
