12v 45w 220v Rohs ce ul Listed Dali Dimmable cv Driver

12v 45w 220v Rohs ce ul Listed Dali Dimmable cv Driver thumbnail-1
12v 45w 220v Rohs ce ul Listed Dali Dimmable cv Driver thumbnail-2
12v 45w 220v Rohs ce ul Listed Dali Dimmable cv Driver thumbnail-3
12v 45w 220v Rohs ce ul Listed Dali Dimmable cv Driver thumbnail-4
12v 45w 220v Rohs ce ul Listed Dali Dimmable cv Driver thumbnail-5
12v 45w 220v Rohs ce ul Listed Dali Dimmable cv Driver thumbnail-6
12v 45w 220v Rohs ce ul Listed Dali Dimmable cv Driver photo-1
12v 45w 220v Rohs ce ul Listed Dali Dimmable cv Driver photo-2
12v 45w 220v Rohs ce ul Listed Dali Dimmable cv Driver photo-3
12v 45w 220v Rohs ce ul Listed Dali Dimmable cv Driver photo-4
12v 45w 220v Rohs ce ul Listed Dali Dimmable cv Driver photo-5
12v 45w 220v Rohs ce ul Listed Dali Dimmable cv Driver photo-6
US$ 15 - 25 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
SMARTS
Model Number:
SMT-024-045VM
Contact Supplier Request Quote Chat Now
Quanzhou Smarts Electronic & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name SMARTS
Model Number SMT-024-045VM
Output Power Other, 45Watt
Output Type Single
Input Voltage Other, 100-265vAC
Output Voltage 24vDC
Output Frequency 47-63Hz
Output Current 1875mA

12v 45w 220v rohs ce ul listed dali dimmable cv driver

Product Description
Product parameters:
Model # INPUT
FREQUENCY
(Hz)		  Input (vAC)

Output

Power

(Watt)

Output

Current

(amp)

Output

Voltage

(vDC)

 Warranty Certificate

Waterproof

Rate



SMT-012-020VM



 47-63Hz 100-265Vac 20W 0-1666mA 12V 3 years CE/UL/ROHS IP40



SMT-024-020VM



 47-63Hz 100-265Vac 20W 0-833mA 24V 3 years CE/UL/ROHS IP40



SMT-012-030VM



 47-63Hz 100-265Vac 30W 0-2500mA 12V 3 years CE/UL/ROHS IP40



SMT-024-030VM



 47-63Hz 100-265Vac 30W 0-1250mA 24V 3 years CE/UL/ROHS IP40



SMT-012-036VM



 47-63Hz 100-265Vac 36W 0-3000mA 12V 3 years CE/UL/ROHS IP40



SMT-024-036VM



 47-63Hz 100-265Vac 36W 0-1500mA 24V 3 years CE/UL/ROHS IP40



SMT-012-045VM



 47-63Hz 100-265Vac 45W 0-3750mA 12V 3 years CE/UL/ROHS IP40



SMT-024-045VM



 47-63Hz 100-265Vac 45W 0-1875mA 24V 3 years CE/UL/ROHS IP40

Specifications:

  • Energy transfer: AC-DC
  • Dimming mode: Triac/ 0-10V/PWM / DALI dimmable
  • PF:>0.90
  • Efficiency: 88%
  • RippleI & Noise (max.) : 150mVp-p
  • Voltage Tolerance : ±5%
  • Line Regulation : ±1%
  • Load Regulation : ±2%
  • Case material:  Plastic / Aluminum housing
  • Waterproof rate:  IP
  • Produt cord:connecting terminal(IP20) / 18AWG*20CM
  • CE, UL&CUL, ROHS approval
  • 2 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

Features:

  • High efficiency,save energy ,protected environment.
  • High stability and low ripple, increase light efficiency and decrease light attenuation.
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant voltage./current
  • Protections:Short circuit/Overload/Over temperature
  • Cooling by free air convection
  • 100% full load burn-in test.
  • Suitable for LED lighting
  • Brand electrotronic components.
  • ROHS material.

Environment:

  • Working temp: -30~+50℃ (Refer to output load derating curve)
  • Working humidity: 20~99% RH non-condensing(Waterproof)
  • Storage temp. humidity:  -40~+80℃,10~99%RH

Safety:

  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Application:
  • indoor LED illuminating lights, LED Neon
  • LED urban Decoration,LED Lighting Advertising
  • LED Display, Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels



12v 45w 220v rohs ce ul listed dali dimmable cv driver



Related Products

Triac Dimmable Constant Current & Constant Voltage  LED Driver

12v 45w 220v rohs ce ul listed dali dimmable cv driver

12v 45w 220v rohs ce ul listed dali dimmable cv driver

0-10V Dimmable Constant Current & Constant Voltage LED Driver

12v 45w 220v rohs ce ul listed dali dimmable cv driver

12v 45w 220v rohs ce ul listed dali dimmable cv driver



Packaging & Shipping
Packing
N.W./pcs G.W/ctn Qty/ctn Carton Size(mm)
 12v 45w 220v rohs ce ul listed dali dimmable cv driver
400g/pcs 9.0kg/ctn 20pcs 324*298*188mm

 Packing:
12v 45w 220v rohs ce ul listed dali dimmable cv driver

Shipping

12v 45w 220v rohs ce ul listed dali dimmable cv driver

Company Information
Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes...View this Supplier's Website

Our team                                                                                                                                                               12v 45w 220v rohs ce ul listed dali dimmable cv driver

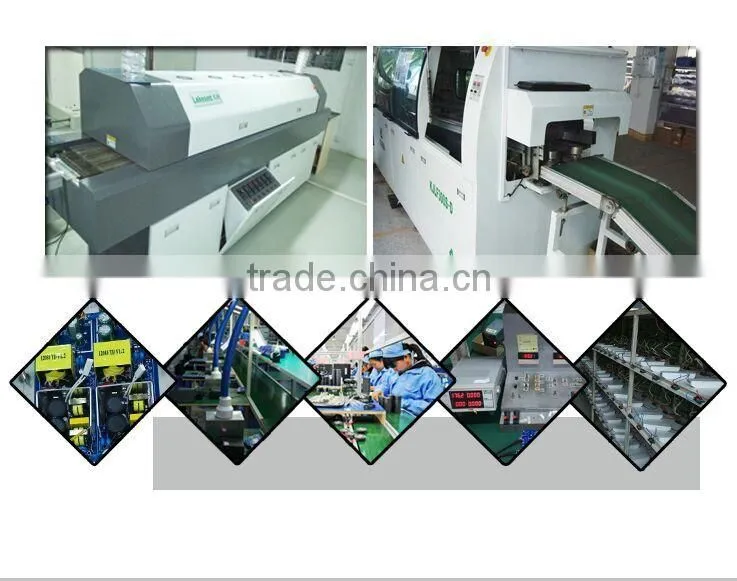

Factory & Equipments view
12v 45w 220v rohs ce ul listed dali dimmable cv driver

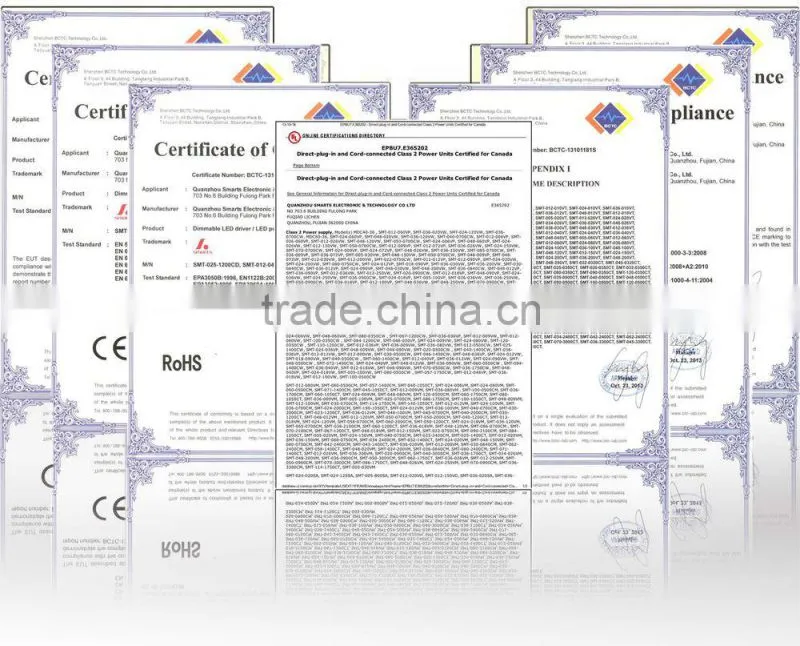

 CE UL/cUL ROHS Certification

12v 45w 220v rohs ce ul listed dali dimmable cv driver

Our Services
  • We are UL/cUL audited LED drivers/power supplies enterprise in China
  • Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial  experience. It will guarantee your order 100% safe
  • Price is negotiable if you have large quantity demand
  • 100% QC inspection Before Shipping
  • Best Quality & Best Service with Competitive price
  • Shipping will be the most economical for you and freight cost is informed in advance
  • consideration.decision for the shipping terms will be made according to your requirements
  • We have our engineer team, if you have any question about your LED applications, let  us know freely, we will give you the best solution
  • Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours
  • OEM design & OEM packing welcome
  • Samples will be ready within 7 working days
FAQ

Q1. What's type power supply do you have?

A1: We specialized in constant voltage & current LED drivers, 0-10v/triac/DALI

       dimmable led drivers, enclosure power suppliers, power adapters.



Q2. What's shipping mode can we choose?

A2:1.FedEx/DHL/UPS/TNT/Express for samples;

      2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

      3. Customers specifying freight forwarders or negotiable shipping methods!



Q3. What's the MOQ?

A3: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.



Q4. What can you do if the product is broken?

A4: We promise to replace new ones to you if there is any defective happen during

      the warranty period, but we need pictures or video to prove the defective comes

      from our quality problem.



Q5. How about the protection of product?

A5: Most of our products have protection of short-circuit, overload, over voltage,

       over current and reserve polarity. About the specific product, please consult

       our sales stuff.



Q6. How about the transportation?

A6: For small order,express will be best.And for bulk order,sea ship way is best but

       take much time. For urgent orders,we suggest via air to airport plus our ship partner

       send to your door. We will cooperate with your choice.



Q7. What's the Payment do you have?

A7: To assure you the maximum comfort and satisfaction, Currently, you can pay via

        T/T, L/C, WESTERN UNION, PAYPAL. More payment options will be added in the

        near future.
