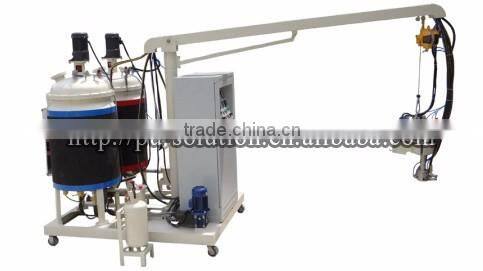

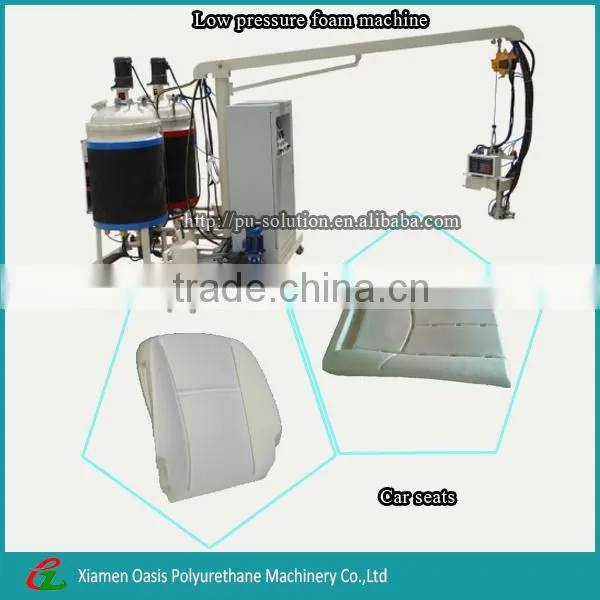

Used pu Car Seat Mat Making Machine/polyurethane Spray Foam Machine.

Used pu Car Seat Mat Making Machine/polyurethane Spray Foam Machine. photo-1
Used pu Car Seat Mat Making Machine/polyurethane Spray Foam Machine. photo-2
Used pu Car Seat Mat Making Machine/polyurethane Spray Foam Machine. photo-3
Used pu Car Seat Mat Making Machine/polyurethane Spray Foam Machine. photo-4
Used pu Car Seat Mat Making Machine/polyurethane Spray Foam Machine. photo-5
Used pu Car Seat Mat Making Machine/polyurethane Spray Foam Machine. photo-6
US$ 10,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, Polyurethane foam machine
Place of Origin:
Fujian, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Other, Polyurethane foam machine
Place of Origin Fujian, China
Brand Name Oasis
Model Number LZ-208B
Voltage 220V/380V
Power(W) 18kw
Dimension(L*W*H) 2.5m*1.8m*2.85m
Weight 1.2T
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Our Advantage

Low price

We have our own factory, in addition, we have 20 years PU machine manufacture experience, so the cost is lower than any other factory and trading company.

Title goes here.

Our PU injection machine is easy to maintain and operate: Highly efficient under any production condition, highly efficient, self cleaning, saving costs, direct material calibration at measurement, high mixing precision, good repeatability and evenness, accurate material mixing ratio control.

Product Description
NO.
Origin Name
Origin
1
Body frame
In-house,China
2
POLY(Polyether Polyol Measuring Pump: K2.4)
Korea
3
ISO(poly isocyanate Metering pump: K2.4)
Korea
4
Pressure limiting and controlling system
Sino-foreign Joint venture
5
Feeding bucket(250L)
Standard stainless steel 304 inner liner
6
Pneumatic solenoid valve
Taiwan
7
Mixing motor reducing the mixing speed by 96RPM
Taiwanese manufacture,China
8
Feeding Tank with inner and outer thermal insulation layers
250L Working pressure 0.05-0.3MP
9

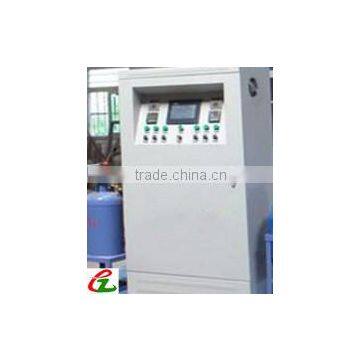

PLC/Touch screen
Taiwan

Microcomputer PLC control

TAIAN electrical components imported for automatic,accurate and reliable control. It can be imputed with more than 500 working position data such as pressure, temperature, rotation rate digital tracking, display and automatic control; abnormity and fault alarm devices, ect.

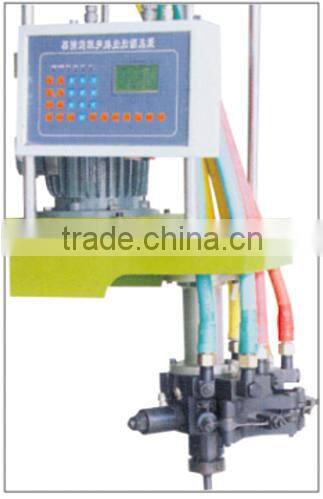

Headpiece

Material injection by a precision needle valve, which is taper sealed, never worn, and never clogged.. The mixing head produces complete material stirring, precise metering.
Single button convenient operation; switching to a different density or color any time.

Stainless inner tank

Pipe heating way keep the inner tank in a stable temperature and humidity. More than 3 silos solution for your possible requirement of multicolor or multidensity in your product..

Detail Images
Technical Date
NO.
Item
Technical date
1
Power
12kw
2
Injection pressure
0.1MPA-3.99MPA
3
Total injection of A&B
15g-50g/S
4
Mixing rate
100:50-120
5
Consistency
POLY/ISO:500-2000MPAS
6
Injecting time
0.01-9.99/S
7
Injecting accuracy
0.1/100
8
Injecting head
Material injected by a precision needle vaue
9
Control type
PLC control
10
Heating system
Automatic thermal controlling
Packing&Delivery
