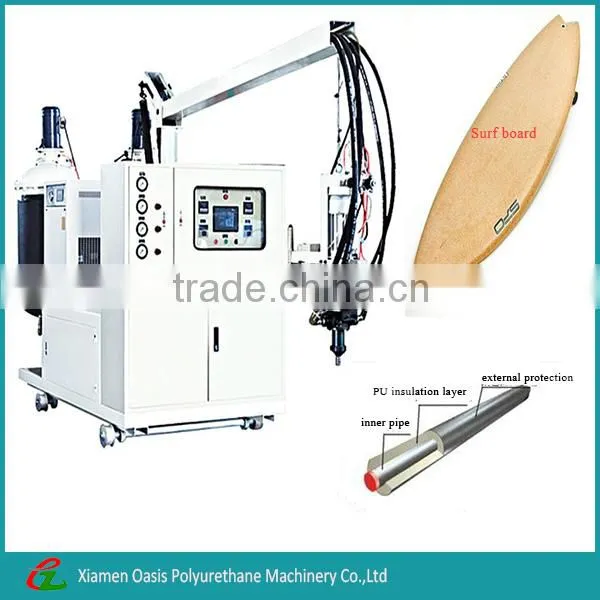

Polyurethane Foam Injection Machine

Polyurethane Foam Injection Machine photo-1
US$ 12,500 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, car seat;shoe sole ;toys;surf board;insulation pipe
Place of Origin:
Fujian, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Other, car seat;shoe sole ;toys;surf board;insulation pipe
Place of Origin Fujian, China
Brand Name Oasis
Model Number LZPU-802B
Voltage 220V/380V
Power(W) 12KW
Dimension(L*W*H) 2200*1800*2850mm
Weight 1.2T
Certification Other, ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Features

Continuous foaming machine for flexible polyurethane foam

Foaming machine for polyether and polyesters polyurethane system with :

--Two components (polyol+Isocyante)

--Multi-component (polyol+Isocyanate+additives+catalysts)

--Double-densinty (Poly1+ISO1  , Poly2+ISO2)

--Air nucleator

--Colouring unit

Stainless steel tank,with moveable flanged lid to ease cleaning perations.Stirrer to homgeize material,oil bath doubble jacket and heat exchanger for the most accurate temperature control of components:

1.Automatic loading /Feeding pump (upon request).

2.Independent temperature control for each component.

3.Metering groups,electronic check of output and mixing ratio.

4.Mixing head on moveable bean.

5.Comfortable button box,with main cotrols.

6.Operator panel with touch screen.

7.User friendly software,to set and store process parameters



Models

Low pressure foaming machine:

--Gear dosing pumps.

--Dynamic mixing head,with vairable speed mixer.

--Automatic flushing system of the mixing chamber.


High pressure foaming machine:

--Axial pistons dosing pumps

--Self-cleaning mixing head

--No pre-casting material wastage.

--Automatic mixing chamber cleaning with non solvent
