Home > Products > Touch Screen Monitor > Economic Style 15'' LCD Touch Monitor

Economic Style 15'' LCD Touch Monitor

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

15'' touch monitor
interface: VGA, BNC, HDMI , Audio,USB
5 wires resistive touch
Certificate of CE,RoHS ,FCC ,C-tick

Economic style 15'' LCD Touch monitor

Specification
Model No.		AKA-1518MA
Display	Screen size	15 Inch
	Panel type	TFT LCD Display
	Max. Resolution	1024 x 768
	Pixel Pitch	0.297 mm
	Brightness	300 cd/square meter
	Contrast ratio	700:1 typical
	Aspect Ratio	4:3
	Viewing Angle(H /V)	135/ 150 degree
	Display color	16.7 Million
	Response Time	8ms
	Power Consumption	Approx. 15 Watts
	Video system	NTSC / PAL
Interface	Solution No.	M2(Economic Style)
	Video 1 Input	CVBS Input(BNC type)x1
	Video 2 Input	CVBS Input(BNC type)x1
	Video 2 Output	CVBS Output(BNC type)x1
	PC-RGB Input	VGA (15Pin D-Sub)x 1
	Audio Input	Stereo 3.5mm input x1
	Audio Output	Stereo 3.5mm Output x1
	HDMI Input	1
	USB (for touch use)	5 wires resistive touch
	DC 12V Input	1
Features	Built in Comb Filters	2D
	Built in De-interlace	3D
	Source	PC / Video1 / Video2 / HDMI
	Multi-Language	English, Chinse,French ,German,
	Multi-Language	Italian , Portuguese , Spanish
Audio	Built in Speakers(Option)	2
Cabinet	Color	Black
	Material	ABS Plastic
	Wall Mount	VESA
	Base Stand	Desktop Stand
Circumstance	Operating Temperature	0°C ~ 50°C / 32°F~122°F
Circumstance	Storage Temperature	20°C~60°C / 4°F~140°F
Packings	Unit N.W./G.W.	Approx. 3.5KG/4.5KG
Packings	Gift Box Dimension	375x146x390 mm (LxWxH)
Regulations	RoHs , FCC , CE , C-tick , and so on.
Specification are subject to change without notice

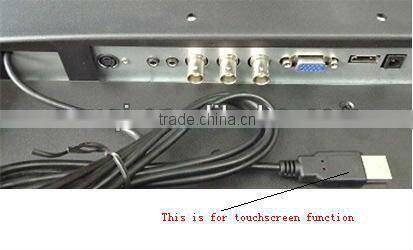

Interface for your reference:

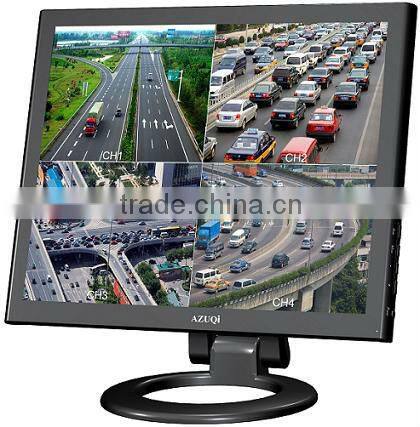

Pictures for your reference:
