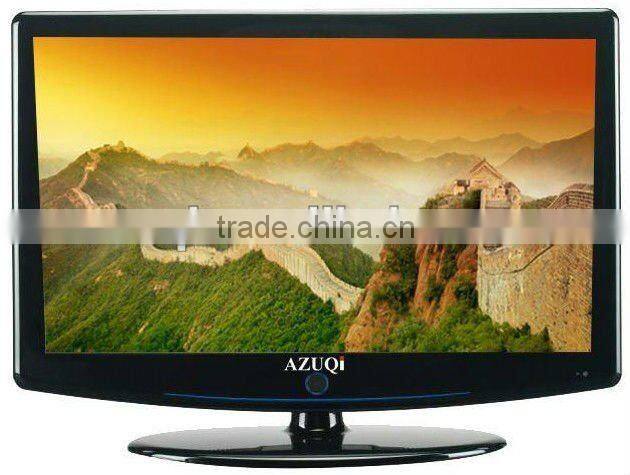

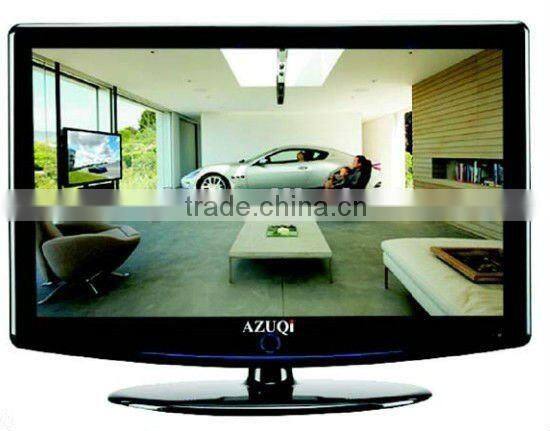

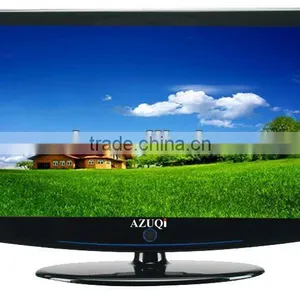

32" Touch Screen Monitor

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Sreen size:26'' / 32'' /37"/42"
Connectors: DC 12V/S-Video/VGA/BNC/RCA/Audio
Response time:8ms

This is an ideal choice for all Offices, CCTV Security, Education, Home and Government Users.

Features:

♦ Touch Screen: IR Single Touch, IR Dual Touch (Win.7)

♦ PIP/POP/PBP

♦ 3D Noice Reduction

♦ Full HD 1920x1080P

♦ Full series include 26"/32"/37"/42"

26'' /32'' HD LCD CCTV Monitors

Model No.	AKA-2602MA	AKA-3202MA
Panel type	26''(16:9) TFT Color LCD	32''(16:9) TFT Color LCD
Solution No.(option)	M2(Ultra-Hi Definition)	M6(Ultra-Hi Definition)
Video inputs Video outputs	CVBS input(BNC)x2 CVBS Loop output(BNC)x1 S-video x1 HDMIx1 USBx1 Scartx1	CVBS input(BNC)x2 CVBS Loop output(BNC)x1 S-video x1 HDMIx1
Audio inputs Audio outputs	RCA jack (L/R)x2 Stereo 3.5mm input x1	RCA jack (L/R)x2 Stereo 3.5mm input x1 Stereo 3.5mm onput x1
Built in comb filters Built in De-interlace	3D 3D	3D 3D
Recommended resolution	WXGA(1366x768)
Power consumption	approx. 37 watts	approx. 46 watts
Display colors	16.7 million colors
Pixel pitch	0.422mm	0.511mm
Contrast ratio	1500:1 typical	2000:1 typical
Brightness	500cd/m² typical
Response time	8ms (GTG)
PC input	15 pin D-Sub (analog RGB) for VGA input
Power supply	AC 100V~240V
Screen control	OSD multi-language menu
Radiation standard	TCO 99
Wall mount	VESA
External Carton	852x172x515 (LxWxD mm)	863x260x673 (LxWxD mm)

Full HD (1920x1080P) 37'' /42'' LCD CCTV Monitor

Model No.	AKA-3702MA	AKA-4202MA
Panel type	37''(16:9) TFT Color LCD	42''(16:9) TFT Color LCD
Solution No.(option)	M2(Ultra-Hi Definition)	M6(Ultra-Hi Definition)
Video inputs Video outputs	CVBS input(BNC)x2 CVBS Loop output(BNC)x1 S-video x1 HDMIx1 USBx1 Scartx1	CVBS input(BNC)x2 CVBS Loop output(BNC)x1 S-video x1 HDMIx1
Audio inputs Audio outputs	RCA jack (L/R)x2 Stereo 3.5mm input x1	RCA jack (L/R)x2 Stereo 3.5mm input x1 Stereo 3.5mm onput x1
Built in comb filters Built in De-interlace	3D 3D	3D 3D
Recommended resolution	Full HD (1920x1080)
Power consumption	approx. 53 watts	approx. 58watts
Display colors	16.7 million colors
Pixel pitch	0.2(H)x0.6(V)	0.511mm
Contrast ratio	15000:1 typical
Brightness	450cd/m² typical	500cd/m² typical
Response time	8ms (GTG)
PC input	15 pin D-Sub (analog RGB) for VGA input
Power supply	AC 100V~240V
Screen control	OSD multi-language menu
Radiation standard	TCO 99
Wall mount	VESA
External Carton	1125x194x669 (LxWxD mm)	1235x197x720 (LxWxD mm)
