Home > Products > LCD VGA Computer Monitors > 10 inch lcd monitor

10 inch lcd monitor

FOB Price

US$ 56 - 75 / Piece

500 Pieces(Min. Order)

Port F.O.B. Hong Kong or Shen Zhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Application	Desktop	Screen Size	Other, 10"
Response Time	8ms	Brightness	300cd/m
Interface Type	D-Sub, HDMI, Other, D-Sub, HDMI, Audio	Contrast Ratio	400:1
Resolution	Other, 800x600	Widescreen	No
Panel Type	TFT	Brand Name	AZUQI
Model Number	AKA-104MA	Place of Origin	Guangdong, China

Product Description

Specifications

10 inch LCD video monitor
Connectors: VGA/ Audio/DC A2V
Regulations: RoHS, CE (EMC & LVD), FCC, C-TICK

Application Field:

SOHO Offices

Shopping Mall

School

Government Users

10" 4:3 LCD Monitor With HDMI Input

I. Specifications

Model No.	AKA-104MA
Display	Screen Size	10.4" 4:3 TFT Color LCD
	Max. Resolution	800x600
	Pixel Pitch	0.33 mm
	Brightness	380cd/m²
	Contrast Ratio	300:1 Typical
	Viewing Angle (U/D/L/R)	65/65/65/65
	Display Color	262K Colors
	Response Time	8ms Typical
	Power Consumption	Approx. 15Watts
	Video System	NTSC / PAL
Interface	Solution No.	M2 ( Economy Solution )
	Video 1 Input	CVBS Input (BNC type) x1
	Video 2 Input	CVBS Input (BNC type) x1
	Video 2 Output	CVBS Output (BNC type) x1
	PC-RGB Input	VGA (15Pin D-Sub) x1
	Audio Input	Stereo 3.5mm Input x1
	Audio Output	Stereo 3.5mm Output x1
	HDMI Input	1
	DC 12V Input	1
Features	Built in Comb Filter	2D
	Built in De-interlace	3D
	Source	VGA/VIDEO 1/VIDEO 2/HDMI
	Multi Language	English, Chinese, French, German, Spanish, etc
Audio	Built-in Speakers	2
Cabinet	Color	Black
	Material	ABS Plastic
	Wall Mount	VESA
	Base Stand	Desk Top Stand
Circumstance	Operating Temperature	0 ~ 50° C / 32 ~ 122° F
Circumstance	Storage Temperature	-20 ~ 60° C / -4 ~ 140° F
Packing	Unit N.W./G.W.	Approx. 1.2KG/2KG
Packing	Gift Box Dimension	333x135x295 mm
Regulations	RoHs, FCC , CE, C-tick, and so on.
*Specifications are subject to change without notice.

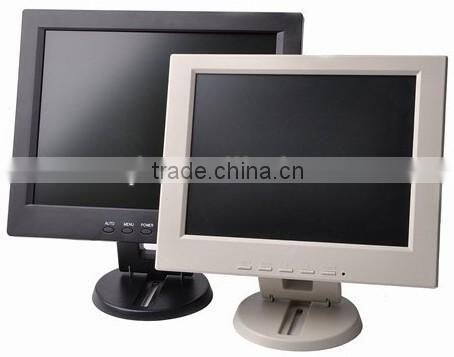

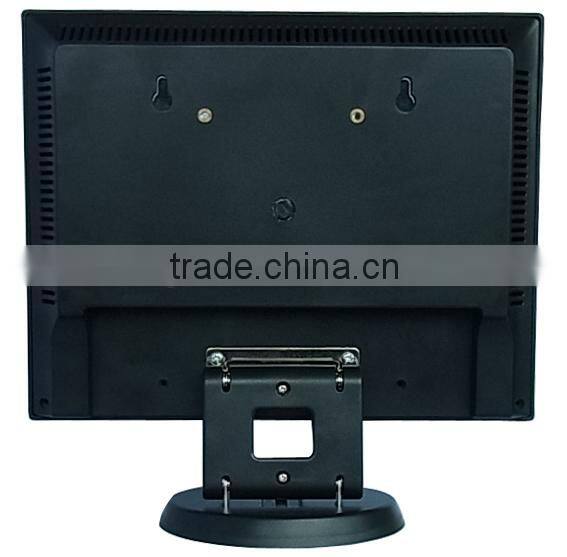

II. Product Pictures For Reference

III. Interface for Reference

IV. Company Overview and Certifications for Reference

V. More products for your choice

VI. Our Service

1. Inquiries would be replied within 48 hours

2. OEM/ODM service is available:

Silkpirnt OEM logo on the monitor; big quantities order would share customized gift box.

3. After-sale service:

All products have been strictly checked the quality and packed perfectly before shipping;

All products would share 1 year warranty after delivery according to our RMA policy;

4. Payment term:

T/T, L/C, Western Union

5. Delivery

We have strong relationship with many express companies and logistic companies. And some of our forwarders as follows:

PS: Please send e-mail to us directly or chat online by trademanager for more details.
