Specifications
10 inch HDMI computer monitorResolution:1024x600
Connectors: VGA,BNC,HDMI,Audio
Certificate: CE, RoHS, FCC, C-tick
10 Inch HDMI LCD Monitor
Application Field:
1. SOHO Offices
2. Shopping Mall
3. Government Users/Home User
Premium Solution Feature:
USB/HDMI Input
Video Input/Output:
Display CVBS Signal by BNC Connector
Add S-Video Input (Option)
Built in 3D Comb Filter
I. Specifications:
| Model No. | AKA-101MA | |
| Display | Screen Size | 10.1" 16:9 TFT Color LED |
| Max. Resolution | 1024x600 (WSVGA) | |
| Pixel Pitch | 0.0725×0.2088 mm | |
| Brightness | 200cd/m² | |
| Contrast Ratio | 300:1 Typical | |
| Viewing Angle (U/D/L/R) | 60/60/60/60 | |
| Display Color | 262K Colors | |
| Response Time | 8ms Typical | |
| Power Consumption | Approx. 12Watts | |
| Video System | NTSC / PAL | |
| Interface | Solution No. | M5 ( Premium Solution ) |
| Video 1 Input | CVBS Input (BNC type) x1 | |
| Video 2 Input | CVBS Input (BNC type) x1 | |
| Video 2 Output | CVBS Output (BNC type) x1 | |
| PC-RGB Input | VGA (15Pin D-Sub) x1 | |
| Audio Input | Stereo 3.5mm Input x1 | |
| Audio Output | Stereo 3.5mm Output x1 | |
| HDMI Input | 1 | |
| USB Input | 1 (Compatible with JPEG, BMP,PNG; RM, MPEG1, MPEG2, RMVB, MOV, MJPEG, DivX; WMA, MP3, M4A ) | |
| DC 12V Input | 1 | |
| Features | Built in Comb Filter | 3D |
| Built in De-interlace | 3D | |
| Source | VGA/VIDEO 1/VIDEO 2/HDMI/MEDIA | |
| Multi Language | English, Chinese, French, German, Spanish, etc | |
| Audio | Built-in Speakers | 2 |
| Cabinet | Color | Black |
| Material | ABS Plastic | |
| Wall Mount | VESA | |
| Base Stand | Desk Top Stand | |
| Circumstance | Operating Temperature | 0 ~ 50° C / 32 ~ 122° F |
| Storage Temperature | -20 ~ 60° C / -4 ~ 140° F | |
| Packing | Unit N.W./G.W. | Approx. 1KG/1.8KG |
| Gift Box Dimension | 315x110x292 mm | |
| Regulations | RoHs, FCC , CE, C-tick, and so on. | |
| *Specifications are subject to change without notice. | ||

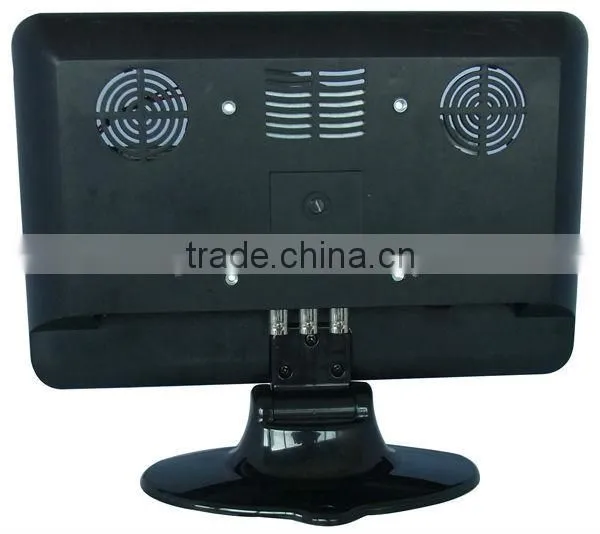

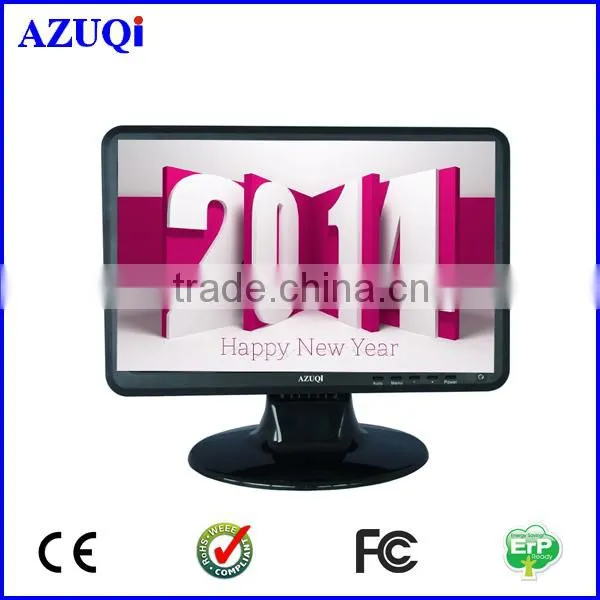

II. Front and Back View for Reference:

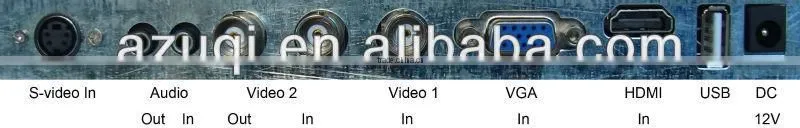

III. Interface for reference:
IV. Factory overview and certification:
V. Our Service
1. Inquiries would be replied within 48 hours
2. OEM/ODM service is available:
Silkprint OEM logo on the monitor; big quantities order would share customized gift box.
3. After-sale service:
All products have been strictly checked the quality and packed perfectly before shipping;
All products would share 1 year warranty after delivery according to our RMA policy;
4. Payment term:
T/T, PayPal, L/C, Western Union
5. Delivery
We have strong relationship with many express agents and logistic companies. And some of our forwarder partners as follows:
V. More products for your choice
*For more requirements, please send me messages online by trademanager or send me e-mail.
