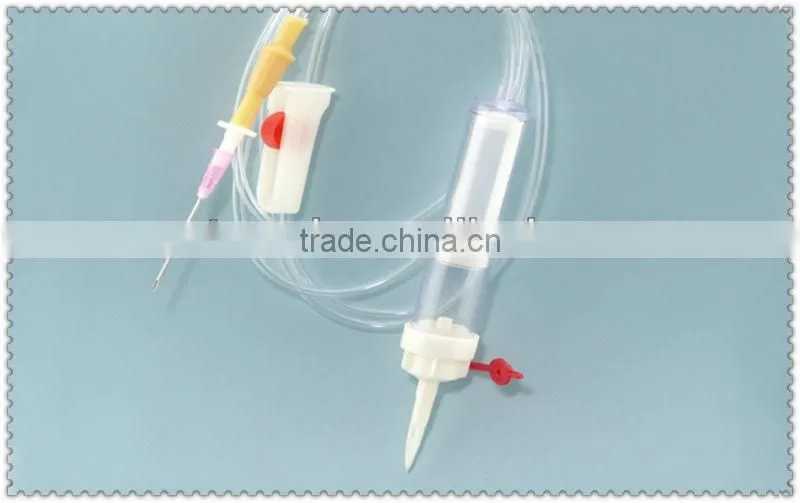

Medical blood transfusion set
Specifacion:
1.With air-filter
2.Big flexible and clear drip chamber
3.With blood filter and roller clamp
4. Non-toxic,Non-Pyrogenic fluid path
5.Luer slip or luer lock adapter
6.Latex or latex free “Y” injection site
7.For Gravity Use and PVC tube 1350-1500mm
8.Protective cap:Made of PP or PE
9.Air inlet cap :Made of red,white or blue PP
10. Flow regulator:Made of PP or ABS, normal shape, small size or Horned shape, large size.
The instructions on medical application:
1.Read ‘direction of use’ carefully before use
2.Do not touch the needle
3.This set is only for single use
4.Do not store under direct sunlight or extreme temperatures
and keep dry
5.Do not use if package is damaged or open
6.Do not use after expiry date
7.Discard after use
8.Never use if any part of the set is disconnected, or if protective cap is detached or loose
The blood transfusion structure:
Figure1 transfusion set
Key
tective cap of the closure-piercing device
2.closure-piercing device
3.fluid channel
4.drip tube
5.drip chamber
ter for blood and blood components
7.tubing
8.flow regulator
9.injection site
10.male conical fitting
tective cap of the male conical fitting a Indicates alternative locations of the filter for blood and
blood components. Other designs are acceptable if the same safety are ensured.
b Injection site is optional
Figure2 air-inlet device
Key
tective cap
2.closure-piercing device or needle
3.tubing
4.clamp
5.air-inlet with air filter
Other designs are acceptable if the same safety aspects are ensured
Figure3 Reference filter assembly
Key
1.inlet tube(internal diameter)
2.filter chamber
3.reference filter
4.drip tube outlet from filter chamber delivering 20 drops/ml

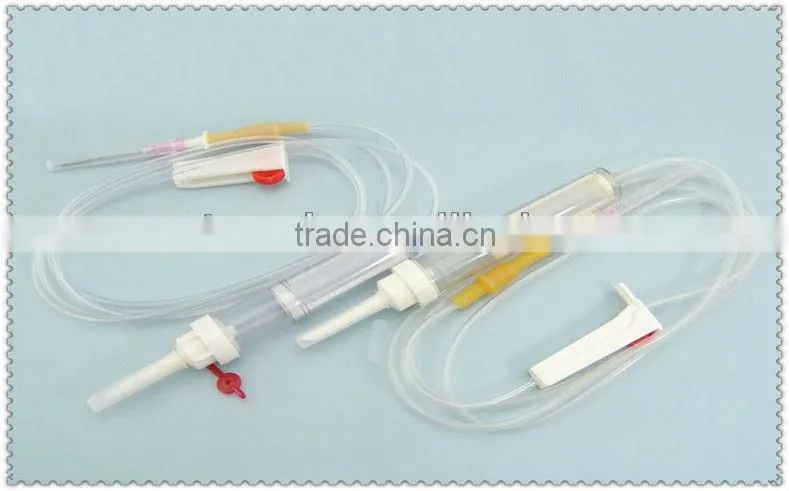

Blood transfusion set:

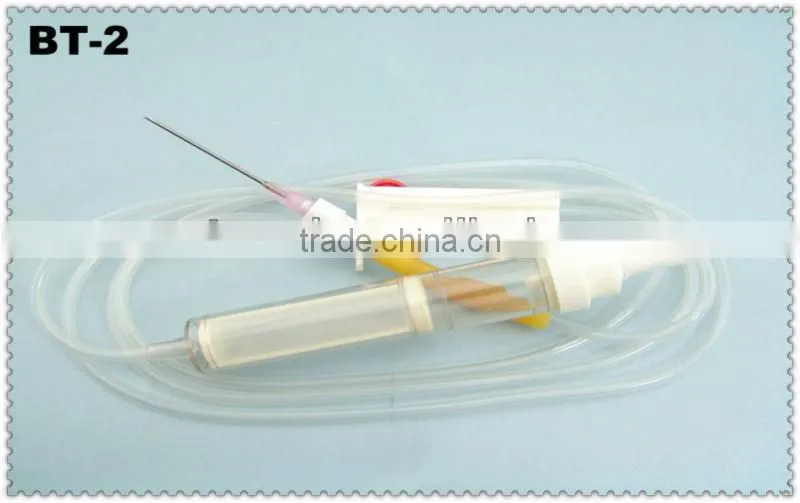

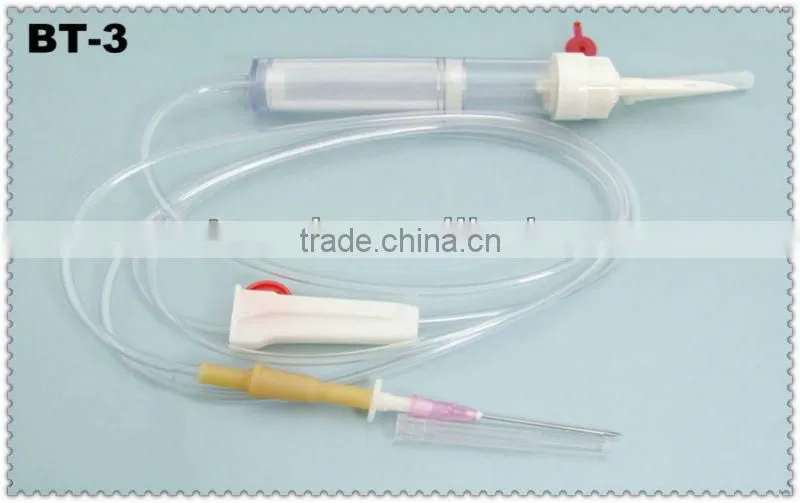

Different type:

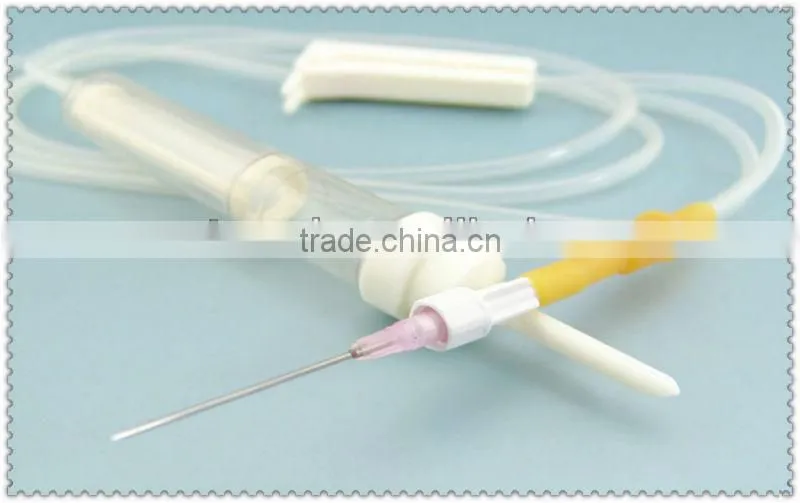

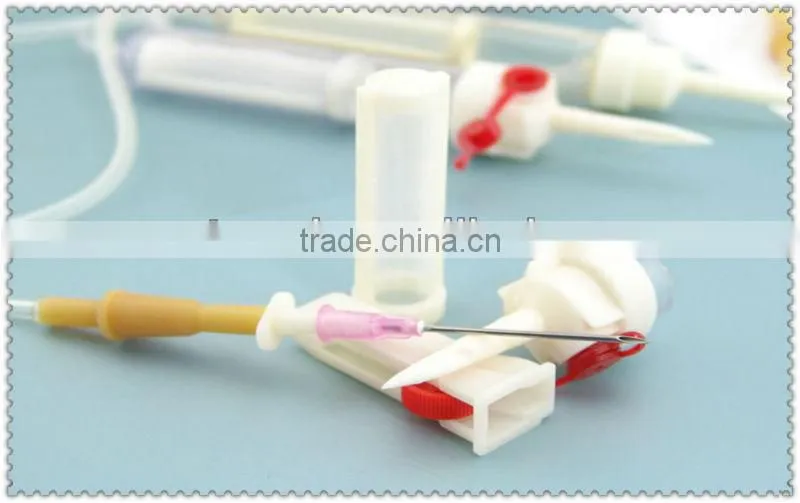

Product details:

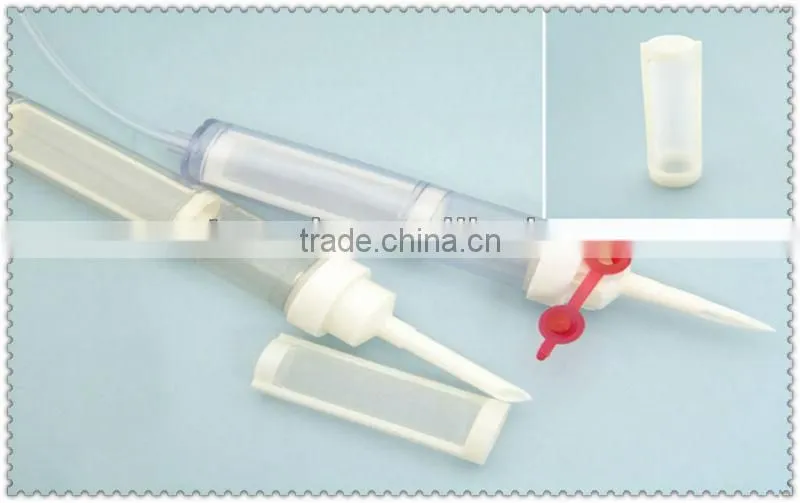

Reference filter assembly:
PVC tube:
Roller clamp:
Steel needle:
Quality Management System Certificate:
