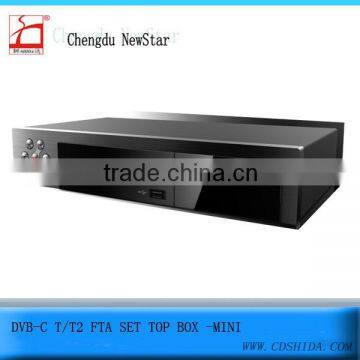

SDC-3000T decoder hd receiver

Name: SDC-3000T decoder hd receiver
Brand: SHIDA
Availability: InStock

FOB Price

US$ 1 - 20 / Piece

100 Pieces(Min. Order)

Port shengzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

SHIDA

Model Number

SDC-3000T2

Product Description

Specifications

Support DVB-T/T2
Capable to FTA or CAS embeded
Support 3D HD decoding
Capable to receive both digital TV and Analog TV

Product Description

SDC-3000T2 HD SET TOP BOX

Characteristics

1.Video decoder: MPEG-2 MPHL/ MPEG-4/ H.264L4.1, AVC/ MHEG-5 support(Optional)

2.Video decoder: MPEG-2 MPHL/ MPEG-4/ H.264L4.1, AVC/ MHEG-5 support(Optional)

3.Audio decoder: AAC/HE-AAC/AC3,DD+(Optional)/PCM Compliat

4.Full HD and HDMI 1.3/HDCP 1.1 Copy protection

5.DVB Subtiling-ETSI 300473 Compliant, and support VBI/OSD Teletex

6.EPG (Electronic Program Guide) with now & next and 7 days events ready

7.Channel search with automatic/manual scan

8.Parental lock function for menu and selectable per channel

9.Multi-lingual support on screen menu (OSD)

10.Edit functions for TV or Radio programme name

11.Signal strength bar for digital transponders

12.8 Timers for recording and/ or sleep-timer with 3 modes (daily, weekly, once)

13.PVR/ Multimedia Playback/ Software Update via USB

14.Support Logic Channel Number(LCN)

Specification

Tuner

IF input frequency: VHF: 174MHz - 230MHz/UHF: 474MHz - 866MHz

Bandwith: 6/7/8MHz

Input level:-83dBm ~ -5dBm

Signal input: IEC-type female

Chipset: MSD7802

Mpeg transport stream and A/V decoding

Video standard: MPEG-2/MPEG-4 AVC/H.264 HP@L4, AVC

SCART video model CVBS/RGB

Aspect ratio: 4:3 LB, 4:3 PS, 16:9, AUTO

Video resolution: 576i, 576p, 720p and 1080i,1080p

Audio standard: ISO/IEC 14.496-3, AC3(optional), AAC, AAC+

Audio mode: mono, dual-channel, stereo

Demultiplexer

Standard ISO/IEC 13818-1; ARIB STB-B10

Input max. bit stream rate: 120Mbps (serial)/15MBps (parallel)

Multimedia format:

Picture: JPEG,BMP,PNG

Audio:WMA,MP3,AC3,AAC (.wma,.mp3,m4a)

Video: MPEG1,MPEG2,MPEG4,H264,Motion JPEG (.avi,.mpg,.dat,.vob,.div,.mov,.mkv,)

Front panel

Display LED display

USB slot for software upgrading/PVR/multimedia playback

Channel decoding

Standard: DVB-T2

Demodulation: QPSK, 16QAM, 64QAM

FEC: 1/2, 2/3, 3/4, 5/6, 7/8, automatic

Guard: 1/4,1/8,1/16,1/32

Mode: 2K, 8K

Carton size : 0.56m*0.33m*0.44m
Carton content:20 pieces se top box

Carton weight : 18kg

Our Services

Lifetime software support & In time solution for any problem
