Home > Products > DVB-T/T2 set top box > SDC-3000T2 receiver dvb-s2 dvb-t2
SDC-3000T2 receiver dvb-s2 dvb-t2
USD $1 - $30
/ Piece
1 Piece(Min.Order)
- 50000 Piece / Pieces per Month
- chengdu
- T/T Credit Card
You May Like
Product Details
| Brand Name | SHIDA | Model Number | SDC-3000T |
Product Description
Product Description

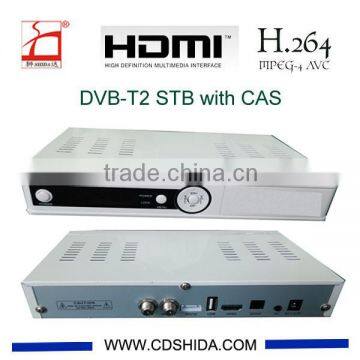

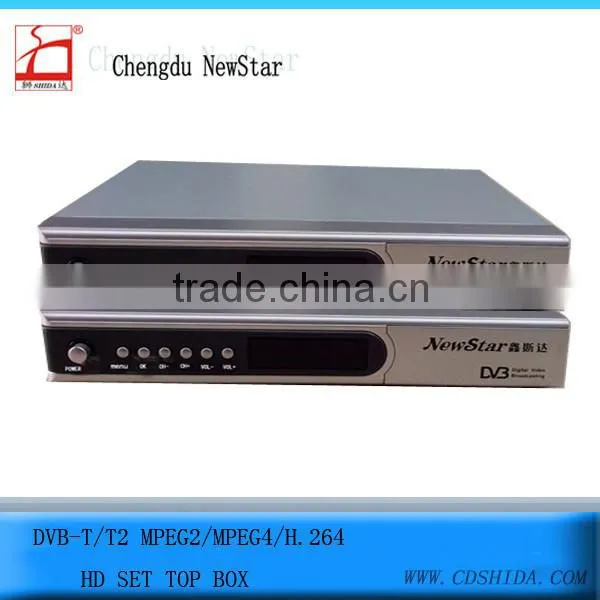

SDC-3000T2 HD SET TOP BOX
| Feature : | |||
| 1, Single-chip H.264/MPEG-2/AVS HD decoder SoC;Low power consumption with standby mode;RoHS complian | |||
| HD/SD Video Encoding & Output | |||
| 2, HD formats supported: 480i/p, 576i/p, 720p, 1080i/p | |||
| 3, SD formats supported: NTSC 480i, PAL 576i, including VBI function | |||
| 4, Programmable output (HD YPbPr and SD CVBS/S- | |||
| 5,Video/SCART) over 4 VDACs | |||
| 6,Applications:FTA or Pay-TV HD set-top boxes | |||
| 7,Its high performance, rich features and low power consumption enable easy design-in to various customer platforms in HD environments. | |||
| DETAIL SPECIFICATION | |||
| Main system | |||
| CPU | Dual Core,350MHz | ||
| Flash Memory | 8MB | ||
| DDR2 | 128MB | ||
| Tuner & Demodulator | |||
| ANT Connector | F female (ANSI/SCTE 02 2006). | ||
| Loop Output | IEC TYPE, male (not necessary) | ||
| Input Frange range | 44MHz-1002MHz | ||
| Input Impedance | 75 | ||
| Input Signal level | -78dbm | ||
| Demodulator | DVB-T2/T/C | ||
| Mpeg Audio/ Vedio Decocding | |||
| Video | MPEG 2(ISO/IEC 13818-2) | ||
| MPEG4 Part10/H.264 (ISO/IEC14496-10) | |||
| AVS | |||
| Profile Level | MPEG-2MP HL H.264HP L4.1 | ||
| Input rate | Max 170Mbit/sec | ||
| Aspect ratio | 4:3 / 16:9 | ||
| Video Resolution | 1920*1080i/p:720*480p 720*480i:720*576p: 720*576i | ||
| Audio decoding | MPEG-1/2 Layer I/II/III | ||
| MPEG-2/4 LC-AAC MPEG-4 HE-AAC Level 4 | |||
| Audio mode | Mono/Joint Stereo/Stereo | ||
| Sample rate | 32 44.1 & 48 MHz (44.1MHz) | ||
| Audio/video data in/out | |||
| TV System | PAL-D/NTSC | ||
| AV output | Video output CVBS Audio R/L | ||
| S/PDIF Audio | Optional | ||
| HDTV output | HDMI 1.2 | ||
| YPbPr | |||
| USB | USB 2.0 host x2 | ||
| Power supply | |||
| Input voltage | AC110V-240V 60Hz Adaptor | ||
| Type | AC Power Supply | ||
| Consumption | Max 5V/1.5A | ||
| Protection | Separate fuse & chassis ground | ||
| or electric shock protection | |||
| Power supply | |||
| Input voltage | AC110V-240V 60Hz Adaptor | ||
| Type | AC Power Supply | ||
| Consumption | Max 5V/1.5A | ||
| Protection | Separate fuse & chassis ground | ||
| or electric shock protection | |||

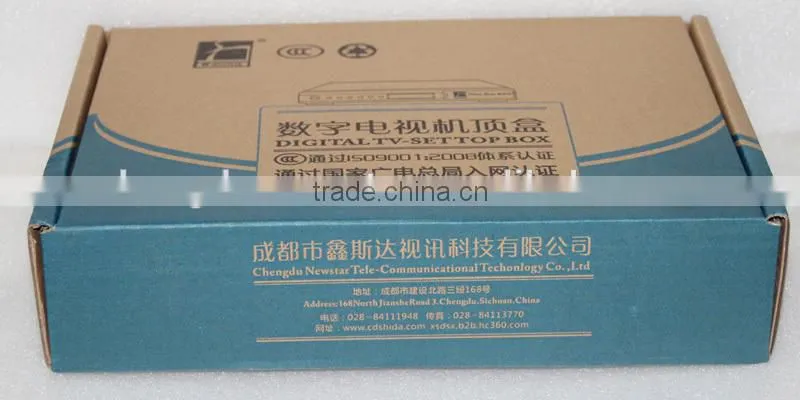

Packaging & Shipping
Carton size : 0.56m*0.33m*0.44m
Carton content:20 pieces se top box
Carton weight : 18kg
