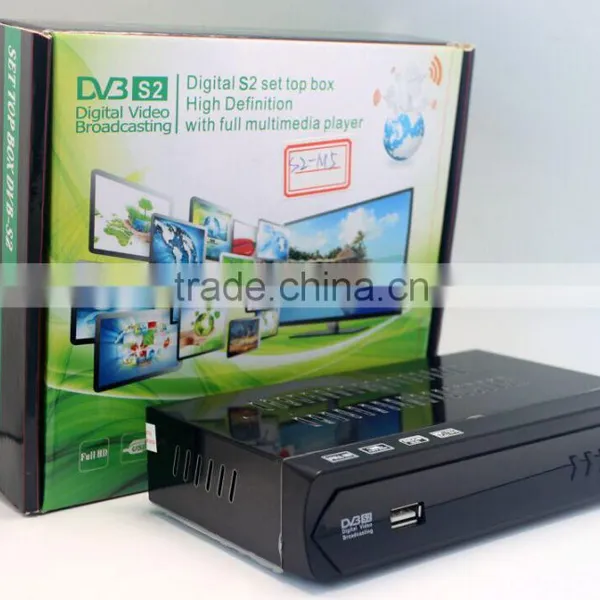

Stable Fta Mini Dvb Satellite Receiver

Hardware

CPU

MSTAR-MSD7802(128 pin) MIPS 34Kf@600MHz

Memory

32X16Mbit DDR2 Frequency1066

Flash

32M bytes

Demodulator Type

MSB1310 Chip Set

TUNER

AV2018

USB 2.0

Embedded One Host,

Front Panel

4-digit LED display on front panel

red LED Standby,green LED Lock

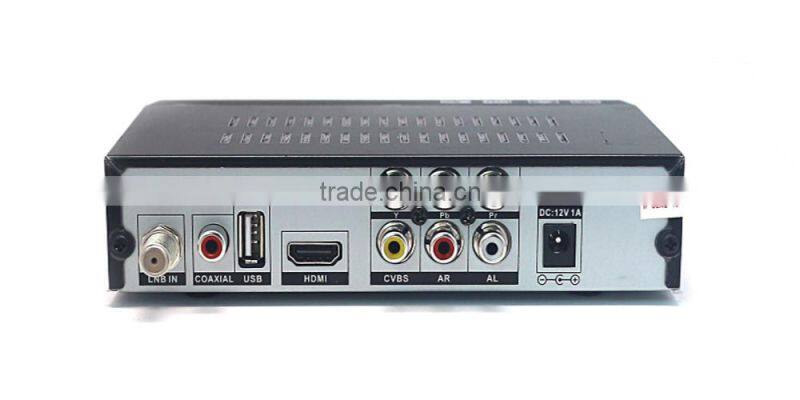

Rear Panel

Tuner RF input connector

IEC60169-2/T-TYPE 75Ohm Unbalanced

Tuner RF Loop through connector

IEC169-2/F-TYPE

HDMI V1.3

AV RCA x1

Ypbpr RCAx1

Coaxial x1

Power AC100~240V   50Hz/60Hz

Channel Decoder

Demodulation

Frequency Range

850MHz to 2500MHz

Sensitivity Level

- 10~ - 81dBm

DeModulation

COFDM

Mode IFFT

2k,8k

FEC Mode

1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Guard intervals

1/4,1/8,1/16,1/32

Constellation

QPSK,8PSK,16APSK,32APSK

Neighboring channels
immunity and Protection

According to ETSI TR 101 190 V1.2.1

Active Ant Power

13/18V DC @ 500mA MAX,Overload Protection

Sortware Features

•Fully comply with DVB-S/S2, MPEG-2/4 H.264 Standard

•Automatic PAL/NTSC conversion

•DiSEqC 1.0 / 1.1 / 1.2/1.3 & USALS

•Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)

•Support teletext/subtitle/muti-language

•Powerful and highly effective 7-day EPG function

•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen

•USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback

•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P

Decoder

Video Decoder

Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)

Audio Decoder

MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA
E-AC-3 (Dolby Digital Plus) decoding   HE-AAC 5.1 multi-chhannel decoding

Powerful Multimedia Features

MediaCodec

avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc

Audio Codec

WMA,MP3,AAC (.wma,.mp3,m4a)

Photo Codec

JPEG, BMP, PNG

Accessories

Accessories

gift box

AV cable optional

HDMI cable optional

IR remote control

User Manual
