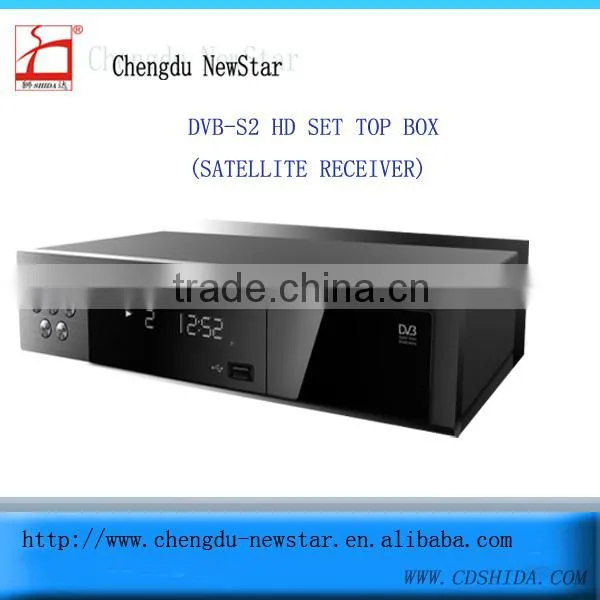

Digital Satellite Receiver SDC-3000S

Chengdu Star-Xinhui Tel-Communicational Co., Ltd.

US$ 1 - 20 MOQ: 1 Piece

Key Specifications

Model Number:

SDC-3000S

Payment & Shipping

Payment Methods:

Port of Shipment:

shengzhen

Delivery Detail:

Delivery time depends on order quantity.

Model Number SDC-3000S

Product Description

SDC-3000S2 HD FTA SET TOP BOX

Hardware Specification

	Chipset	Mstar 7816MIPS 34Kf 550MHz.55nm process
	Flash memory	32M bytes
	SDRAM	32X16Mbit DDR2 Frequency1066MHz
	Demodulator Type	MSB1310 Chip Set
	Tuner	AVL2012 BOARD TUNER Design
	Audio Amp	DIO2112
	PCB	2 layer FR4
Right panel	HDMI output	V1.3 1080p50Hz *1
Right panel	Power suply	External power supply, DC12V1.5A Input Voltage: AC 90~250V,50Hz/60Hz
Left panel	LNB Input Connector	IEC60169-2/T-TYPE 75Ohm Unbalanced
	LNB Output Connector	IEC169-2/F-TYPE
	Video output	CVBS
	Audio output	Single/Dual mono/Stereo/Joint Stereo
	USB socket, q-ty/type	USB2.0*1, It is used to software upgrade and media playback.

Software Features

Software General Features	MPEG4	Fully comply with DVB-S/S2, MPEG-2/4 H.264 Standard
	PAN/NTSC	Automatic PAL/NTSC conversion
	Channels Number	5000 channels memory capacity
	Favorites	8 different favorite groups selection
	OSD Language	English French Czech Danish RUSSIAN German Italian Dutch Danish Swedish Finnish Turkish -etc
	EPG	Fully support to 7 days Electronic Program Guide(EPG)
	Channel Search	Channel search in automatic, manual and network search
	Channel Edit	Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)
	Parental Lock	Parental control for channels
	DiSEqC	DiSEqC 1.0 / 1.1 / 1.2/1.3 & USALS
	Easy Menu	Plug and Play installation, with an ease to use Menu System
	SoftUpgrade	Software upgrades through USB
	Teletext	Support OSD/VBI Formart
	Subtitle	Subtitle support
	Save Channel	Automatic save for last channel
	LCN	Support Logic Channel Number(LCN)
	Power	Auto Power Down
	Ant-Ana Ctrl	Active Antenna Power supply control
TV system	Video resolution:	480i/576i/480P/576P/720P/1080i/1080P
TV system	Aspect ratio:	4:3LETTER BOX,4:3pan scan,4:3full,16:9pan scan,16:9pillar BOX,16:9wide screen,auto
Time setup	Select GMT	Time set by GMT offset automatic and manual,Summer Time support
	Region time	optional
	User setup	Manual User setup
	Timer EPG	Fully support to 7 days Electronic Program Guide(EPG)
	Sleep timer	YES
	Timer on/off power	YES

Channel Decoder

DVB-S2 Tuner Channel Decoder	Demodulator Type	MSB1310 Chip Set
	Tuner Type	AVL2012 BOARD TUNER Design
	LNB Input Connector	IEC60169-2/T-TYPE 75Ohm Unbalanced
	LNB Output Connector	IEC169-2/F-TYPE
	Frequency Range	850MHz to 2300MHz
	Sensitivity Level	- 10~ - 80dBm
	DeModulation	COFDM
	Mode IFFT	2k,8k
	FEC Mode	1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
	Guard intervals	1/4,1/8,1/16,1/32
	Constellation	QPSK,8PSK,16APSK,32APSK
	Neighboring channels immunity and Protection	According to ETSI TR 101 190 V1.2.1
	Active Ant Power	13/18V DC 500mA MAX,Overload Protection

VIDEO Decoder

VIDEO	Decoder	MPEG-4 part10/MPEG-2 ISO/IEC13818
	Decoder	MPEG-2 MP@HL,MPEG1 CC ASP L5 HD;H.264 ISO/IEC14496-10 High profile up to level 4.0
	Video output	HDMI V1.3 480i/576i/480P/576P/720P/1080i/1080P
		A-R, A-L
		CVBS
	Output resolution	480i/576i/480P/576P/720P/1080i/1080P
	Aspect ratio out	4:3LETTER BOX,4:3pan scan,4:3full,16:9pan scan,16:9pillar BOX,16:9wide screen,auto

Audio Decoder
