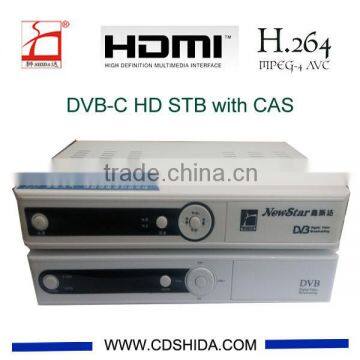

Customization hd Digtial Cable tv Set Top Box With CAS
- shengzheng
- T/T Money Gram Credit Card
You May Like
Product Details
| Brand Name | SHIDA | Model Number | SDC-3000CH |
Product Description
Feature
1 The device meets the DVB standard and supports English and Chinese interfacing as well as multi-condition receiving system,
2 PAL/NTSC auto switching, EPG pre-viewing.
3 Power- off memory function.
4 Contains the Locking functions, LED display.
5 Single voice channel, dual voice channel and stereo channels.
6 Contains a range of games and supports Loader technology.
7 On-line upgrade, on display of advertises and advertise menu.
8 Support broadcasting,email.
9 Support receiving Mosaic effect program.
10 Support 5 ways advertisement ( if choose to use ADS system)
11 Support 1000 channels memory
12 Subtitle available
13 Double AGC control
14 Built in OTP
l5 Support MPEG1/2/4,H.264,AVS/AVS+
l6 MIPS high speed CPU, main frequency to 400M
l7 Support remote online upgrade
l8 support AD system
l9 Support VBI data input for WSS /Teletext/CC/VPS
Specification
Technical Specification | |
| |
Item | Specs |
Input frequency | 110-862MHz |
input Level | 35dB-85dB |
Input reflecting loss | >8dB |
Input Resistance | 75Ω |
modulation | 16QAM32QAM64QAM128QAM256QAM |
symbol rate | 0-9Mbauds |
bandwidth | 8MHz/7MHz/6MHz |
Decoding mode | MPEG-I MPEG-2 |
Resolution | 720×576(PAL)720×480(NTSC) |
Picture output | 1VP-P 75Ω |
C/N | <26db 64QAM <33dB 256QAM |
Flash | 4 MByte |
RAM | 32MByte |
CA | support
|
Audio decoding
Audio decoding | MPEG-1-Audio LayerⅠ/Ⅱ MPEG-2-Audio Mono / stereo |
Audio sampling rate | 32,44.1,48KHz |
PCR jitter adaptive capacity | >500ns,<-500ns |
The channel switching time | < 2.5S |
storable programs | 1000 |

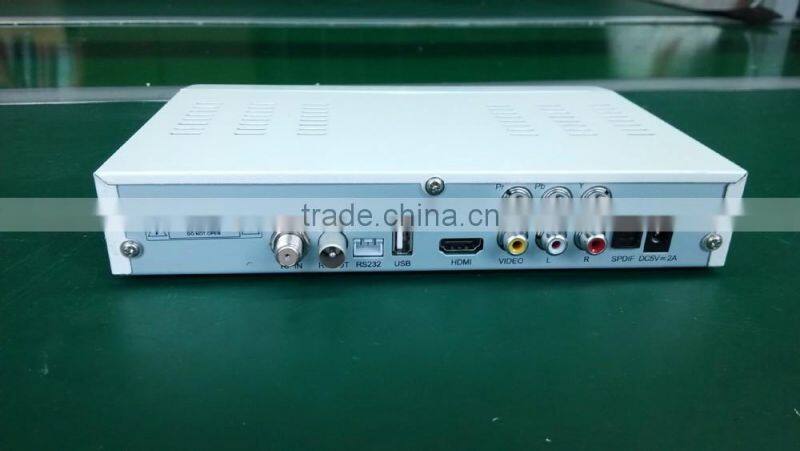

Interfaces
RF input RF | F-type, Female |
Loop through Output | IEC male |
AV output | (1 Left Audio, 1 Right Audio, 1 Video) |
RS232 | 1 |
Our Service:
1). We accept T/T,L/C,WESTUNION
2). We provide professional system design & construction
3). 1 years warranty
4). Lifelong maintenance
5). 24-Hour technical support
