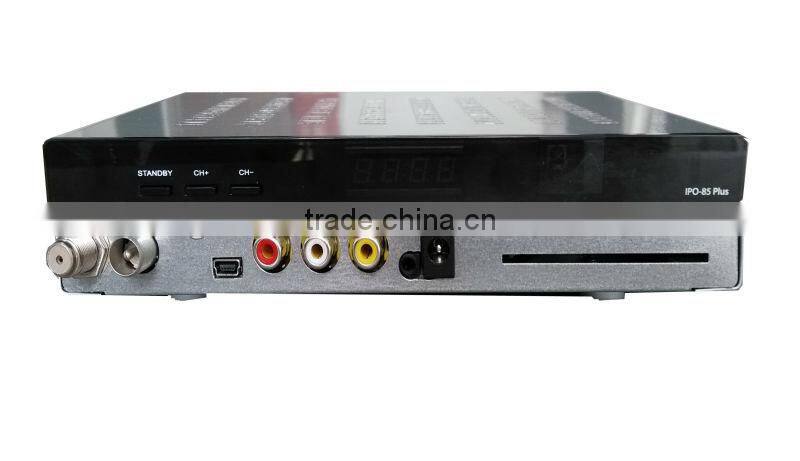

Mpeg2 SD Digital Cable Receiver

Name: Mpeg2 SD Digital Cable Receiver
Brand: shida
SKU: 134428565
Availability: InStock

Chengdu Star-Xinhui Tel-Communicational Co., Ltd.

US$ 1 - 20 MOQ: 100 Pieces

Key Specifications

Brand Name:

shida

Model Number:

SDC-3000C5

Payment & Shipping

Payment Methods:

Port of Shipment:

Shengzheng

Delivery Detail:

Delivery time depends on order quantity.

Brand Name shida

Model Number SDC-3000C5

Specifications

Support 5 ways advertisemen
MINI metal casing
free software support for lifetime

Product Description

Characteristics

l The device meets the DVB standard and supports English and Chinese interfacing as well as multi-condition receiving system,

2 PAL/NTSC auto switching, EPG pre-viewing.

3 Power- off memory function.

4 Contains the Locking functions, LED display.

5 Single voice channel, dual voice channel and stereo channels.

6 Contains a range of games and supports Loader technology.

7 On-line upgrade, on display of advertises and advertise menu.

8 Support broadcasting.

9 Support receiving Mosaic effect program.

10 Support 5 ways advertisement ( if choose to use ADS system)

11 Support 500 channels memory

12 Subtitle available

l3 Double AGC control

l4 Built in OTP

Technical Specification

Item	Specs
Input frequency	87-862MHz
input Level	40dB-90dB
Input reflecting loss	>8dB
Input Resistance	75Ω
modulation	16QAM32QAM64QAM128QAM256QAM
symbol rate	3.6---6.952Mbauds
bandwidth	8MHz
Decoding mode	MPEG-I MPEG-2 mpeg4 MP@ML
Resolution	720×576(PAL)720×480(NTSC)
Picture output	1VP-P 75Ω
C/N	<26db 64qam <33dB 256qam
CPU	HM1521
Flash	2 MByte
RAM	16MByte
Tuner	NXP18250
CAS	DEXIN 5.1
Frequency capture range	±150KHz 64QAM,6.875Mbaud
Audio decoding	MPEG-1-Audio LayerⅠ/Ⅱ MPEG-2-Audio Mono / stereo
Audio sampling rate	32,44.1,48KHz
PCR jitter adaptive capacity	>500ns,<-500ns
Boot time	<30S
The channel switching time	< 2.5S
storable programs	1000
