SDC-3000C3 Hi-tech Digital Receiver

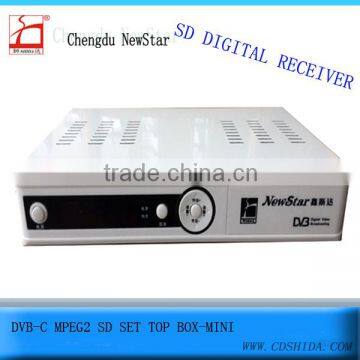

SDC-3000C3 Hi-tech Digital Receiver photo-1
US$ 1 - 20 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
SHIDA
Model Number:
SDC-3000
Payment & Shipping
Payment Methods:
Port of Shipment:
shengzheng
Delivery Detail:
Delivery time depends on order quantity.
Brand Name SHIDA
Model Number SDC-3000

Specifications

DVB-C SD
MEPG2/MPEG4/H.264
Offer CAS software by free
stable quality, In time after -sale service


Product Description



 Features :















The device meets the DVB standard and supports English and Chinese interfacing as well as multi-condition receiving system,

PAL/NTSC auto switching, EPG pre-viewing.

Power- off memory function.

Contains the Locking functions, LED display.

Single voice channel, dual voice channel and stereo channels.

Contains a range of games and supports Loader technology.

On-line upgrade, on display of advertises and advertise menu.

Support broadcasting,email.

Support receiving Mosaic effect program.

10 Support 5 ways advertisement ( if choose to use  ADS system)

11 Support 1000 channels memory

12 Subtitle available

13 Double AGC control

14 Built in OTP

15 Support MPEG1/2/4,H.264,AVS/AVS+

16 MIPS high speed CPU, main frequency to 400M

17 Support remote online upgrade

18 support AD system

19 Support VBI data input for WSS /Teletext/CC/VPS







  Technical Specification





Item

Specs

Input frequency

110-862MHz

input Level

35dB-85dB

Input reflecting loss

>8dB

Input Resistance

75Ω

modulation

16QAM32QAM64QAM128QAM256QAM

symbol rate

0-9Mbauds

bandwidth

8MHz/7MHz/6MHz

Decoding mode

MPEG-I MPEG-2

Resolution

720×576(PAL)720×480(NTSC)

Picture output

1VP-P   75Ω

C/N

<26db  64QAM

<33dB  256QAM

Flash

4 MByte

RAM

32MByte

CA

support



Audio decoding

MPEG-1-Audio LayerⅠ/Ⅱ

MPEG-2-Audio/MPEG4-Audio /H.264-Audio

Mono / stereo

Support MP3,AC3,WMA,AAC,DTS audio format

Audio sampling rate

32,44.1,48KHz

PCR jitter adaptive capacity

>500ns,<-500ns

The channel switching time

< 2.5S

storable programs

1000



Voltage

100-250V   50/60Hz

Power

<10W

Casing

Metal

Size

21.8CM×16.5CM×4.0CM

Work Temperature

0-45 centigrade

RF input RF

F-type, Female

Loop through  Output

IEC male

AV output

(1 Left Audio, 1 Right Audio, 1 Video)

RS232

1
