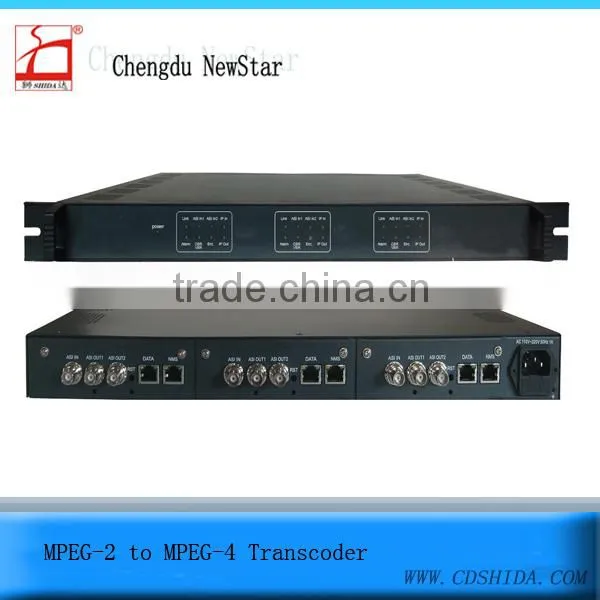

MPEG-2 to MPEG4 Transcoder Digital Catv Digital Headend

MPEG-2 to MPEG4 Transcoder Digital Catv Digital Headend photo-1
US$ 1 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
SHIDA
Model Number:
SDC-3000TR
Payment & Shipping
Payment Methods:
Port of Shipment:
chengdu
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Sichuan, China
Brand Name SHIDA
Model Number SDC-3000TR

Specifications

TS Transcoder Device
MPEG-2 Encoding format to MPEG-4 AVC/H.264
with IP TS input function


Product Description



Features:

Modularized Design, Up to 3 Transcoding Modules in 1U housing.

1×ASI Input Interface

3 Supporting 720x576i, 720x480i Standard Definition

4 Audio MPEG-1 Layer2, AAC (optional)

5 Supporting MPEG-2 to MPEG-4 AVC/H.264 Encoding format

6 Supporting CBR and VBR

7 Supporting IP Output (SPTS over UDP protocol)

8 Supporting NMS management

Specifications:

Input

1×ASI input, BNC interface

Video

Resolution

D1   720x576i, 720x480i

Transcoding

MPEG-2 to MPEG-4 AVC/H.264

Rate Control

CBR/VBR

Audio

Encoding

MPEG-1 Layer2

Sampling rate

48KHz

Resolution

24 bit

Bit Rate

64Kbps ~ 384Kbps

Stream output

2 × ASI Outputs, BNC Interface

SPTS over UDP,10/100Base-T Ethernet Interface

(UDP unicast / multicast)

System function

NMS support

Ethernet software upgrade

General

Dimensions (WxDxH)

482mm×455mm×44.5mm

Approx weight

6Kg

Temperature range

0~45°C(Operation), -20~80°C(Storage)

Power requirements

AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz

Power consumption

17.6W
