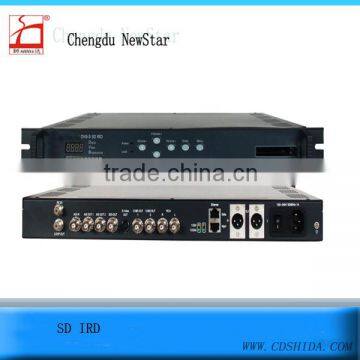

Help CenterDVB-S SD IRD SD IRD Digital Satellite Receiver DVB Digital TV Digital Headend
Related Products
-
DVB-T SD IRD Digital Satellite Receiver DVB Digital TV Digital HeadendUS$ 1 - 10,000MOQ: 1 Piece -
DVB-S2 SD IRD Digital Satellite Receiver DVB Digital TV Digital HeadendUS$ 1 - 10,000MOQ: 1 Piece
-
Star Max Digital Satellite ReceiverUS$ 1 - 10,000MOQ: 1 Piece
-
DVB-T Basic Model SD IRD Digital Satellite Receiver DVB Digital TV Digital HeadendUS$ 1 - 10,000MOQ: 1 Piece
-
DVB-S2 Basic Model SD IRD Digital Satellite Receiver DVB Digital TV Digital HeadendUS$ 1 - 10,000MOQ: 1 Piece
Specifications
decode transport stream (compliant with MPEG2) from ASICAM module( option)
2 ASI outputs and digital video & audio output
Features
1,MPEG-2 digital & Fully DVB compliant
2.QPSK demodulation support
3.Two routes MPEG-2 transport stream output
4.QPSK modulation frequency: 950~2150MHz, symbol rate:2~45Msps 5.User can edit various satellites and transponders information
6.PAL / NTSC format TV
7.Can receive C / Ku-band SCPC / MCPC information from Satellite
8.256 colors display
9.PAL / NTSC automatic conversion
10.Channels automatically saved
11.2 CVBS outputs, 2 AUDIO outputs
12.2 PCMCIA Interfaces
13.One RJ45 interface, support NMS, TCP / IP network transport protocols to convenient network management 14
14.2 TS stream outputs, One TS Stream Input
15.One S-Video
16.2 separate CIM modules, each supports up to decrypt 8 channel Programs
17.One LNB input, one LNB output
18.2 Video outputs
DVB-S SD IRD:
Input Frequency Range: |
950-2150MHz |
Symbol rate: |
2-45Mbps |
Signal Strength: |
-65--25dBmV |
Demodulation Mode: |
1/2 2/3 3/4 5/6 7/8 QPSK |
Series Specification
Ethernet |
Connector |
RJ-45 |
Interface Type |
10/100 Base-T |
|
Protocols |
TS Over IP: UDP ; NMS: UDP |
|
DVB-CI |
Descrambler |
DVB-CSA |
Smart Card interface |
ISO7816 |
|
Separate (between TS, converter and card), interface |
PCMCIA |
|
Video output |
2 CH CVBS |
BNC interface, |
Audio output |
Stereo unbalanced audio |
BNC interface, |
ASI input |
BNC interface |
Input impedance 75 |
Max transport rate |
54Mbps |
|
ASI output |
BNC interface |
Output impedance 75 |
Max transport rate |
54Mbps |
|
Physics interface |
DB9 Female |
|
General |
Voltage |
AC :110-240V~, 50/60Hz |
Power |
<20W(Max) |
|
Temperature |
0~40°C(Operation); 10°C~35°C(Storage) |
|
Humidity |
10%~90% |
|
Dimension |
44mm*482mm*360mm |
|
Approx weight |
3.2kg |
