8 GYFTA Stranded Loose Tube No-metallic Strength Member No-Armored Cable

8 GYFTA Stranded Loose Tube No-metallic Strength Member No-Armored Cable thumbnail-1
8 GYFTA Stranded Loose Tube No-metallic Strength Member No-Armored Cable photo-1
US$ 0.7 - 0.8 MOQ: 1 Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OMC or OEM
Model Number:
GYFTA
Contact Supplier Request Quote Chat Now
Shenzhen Omc Optical Communication Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OMC or OEM
Model Number GYFTA
Type Cat 6a

GYFTA Stranded Loose Tube No-metallic Strength Member No-Armored Cable

Product Description



Product details

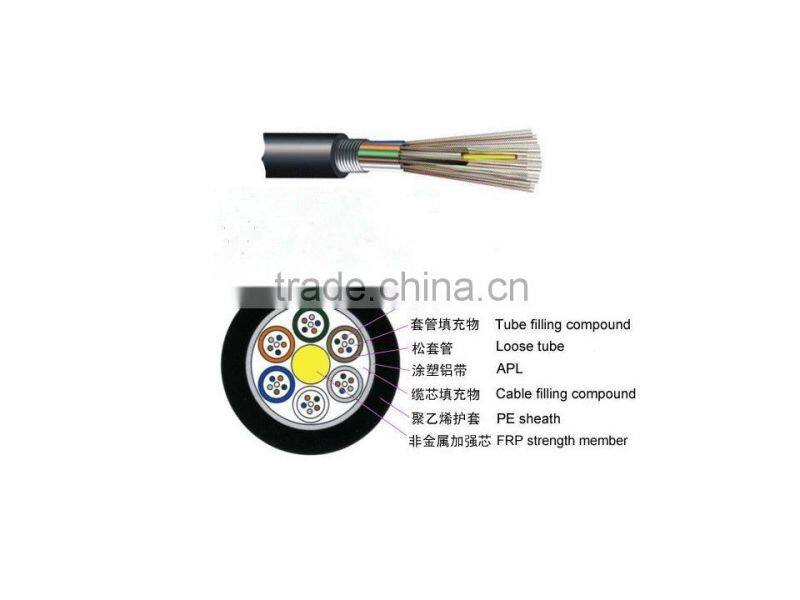

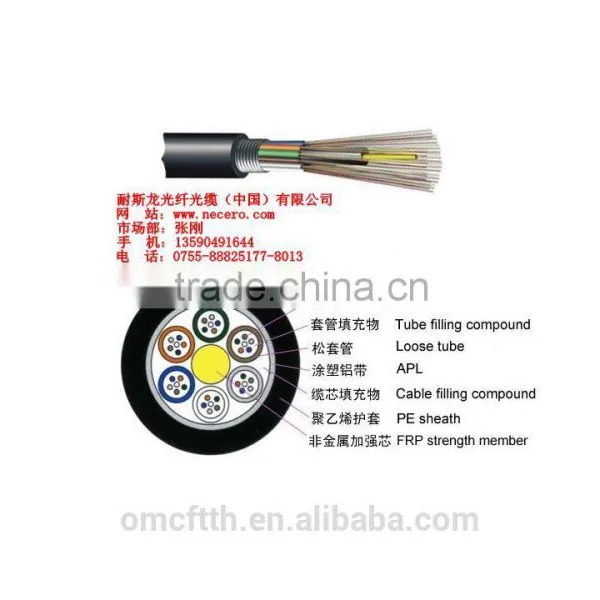

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, the cable is completed with a PE sheath.



Characteristics



Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Specially designed compact structure is good at preventing loose tubes from shrinking

PE sheath protects cable from ultraviolet radiation

The following measures are taken to ensure the cable watertight:

Single Fiber Reinforced Plastic as the central strength member

Loose tube filling compound

100% cable core filling

APL moisture barrier

Standards:IEC 60794-1.



Technical Parameters.



Part No.

Fibers

Tubes

Cable OD

(mm)

Weight

Kg/km

Tensile strength

Long term/short term

(N/1m)

Crush resistance

Long term/short term

(N/1m)

Bending Radius

Static/Dynamic

(mm)

GYFTA-2~6X

2~6

1

11.4

108

500/1000

300/1000

10D/20D

GYFTA-8~12X

8~12

2

11.4

108

500/1000

300/1000

10D/20D

GYFTA-14~18X

14~18

3

11.4

108

500/1000

300/1000

10D/20D

GYFTA-20~24X

20~24

4

11.4

108

500/1000

300/1000

10D/20D

GYFTA-26~30X

26~30

5

11.4

108

500/1000

300/1000

10D/20D

GYFTA-32~36X

32~36

6

11.4

108

500/1000

300/1000

10D/20D

GYFTA-2~12X

2~12

1

12.8

134

600/1500

300/1000

10D/20D

GYFTA-14~24X

14~24

2

12.8

134

600/1500

300/1000

10D/20D

GYFTA-26~36X

26~36

3

12.8

134

600/1500

300/1000

10D/20D

GYFTA-38~48X

38~48

4

12.8

134

600/1500

300/1000

10D/20D

GYFTA-50~60X

50~60

5

12.8

134

600/1500

300/1000

10D/20D

GYFTA-62~70X

62~70

6

12.8

134

600/1500

300/1000

10D/20D

GYFTA-2~6X

2~6

1

12.8

140

600/1500

300/1000

10D/20D

GYFTA-8~12X

8~12

2

12.8

140

1000/3000

300/1000

10D/20D

GYFTA-14~18X

14~18

3

12.8

140

1000/3000

300/1000

10D/20D

GYFTA-20~24X

20~24

4

12.8

140

1000/3000

300/1000

10D/20D

GYFTA-26~30X

26~30

5

12.8

140

1000/3000

300/1000

10D/20D

GYFTA-32~36X

32~36

6

12.8

140

1000/3000

300/1000

10D/20D

GYFTA-38~42X

38~42

7

12.8

140

1000/3000

300/1000

10D/20D

GYFTA-44~48X

44~48

8

14.8

176

1000/3000

300/1000

10D/20D

GYFTA-50~60X

50~60

5

14.8

176

1000/3000

300/1000

10D/20D

GYFTA-62~72X

62~72

6

14.8

176

1000/3000

300/1000

10D/20D

GYFTA-74~84X

74~84

7

14.8

176

1000/3000

300/1000

10D/20D

GYFTA-86~96X

86~96

8

14.8

176

1000/3000

300/1000

10D/20D

GYFTA-98~108X

98~10

8

9

17.1

226

1000/3000

300/1000

10D/20D

GYFTA-110~120X

110~120

10

17.1

226

1000/3000

300/1000

10D/20D

GYFTA-122~132X

122~132

11

19.2

279

1000/3000

300/1000

10D/20D

GYFTA-134~144X

134~144

12

19.2

279

1000/3000

300/1000

10D/20D

Note:

Suffix X denotes fiber type.

The nominal value of the PE sheath thickness is 1.6mm

 8 GYFTA Stranded Loose Tube No-metallic Strength Member No-Armored Cable

Packaging & Shipping

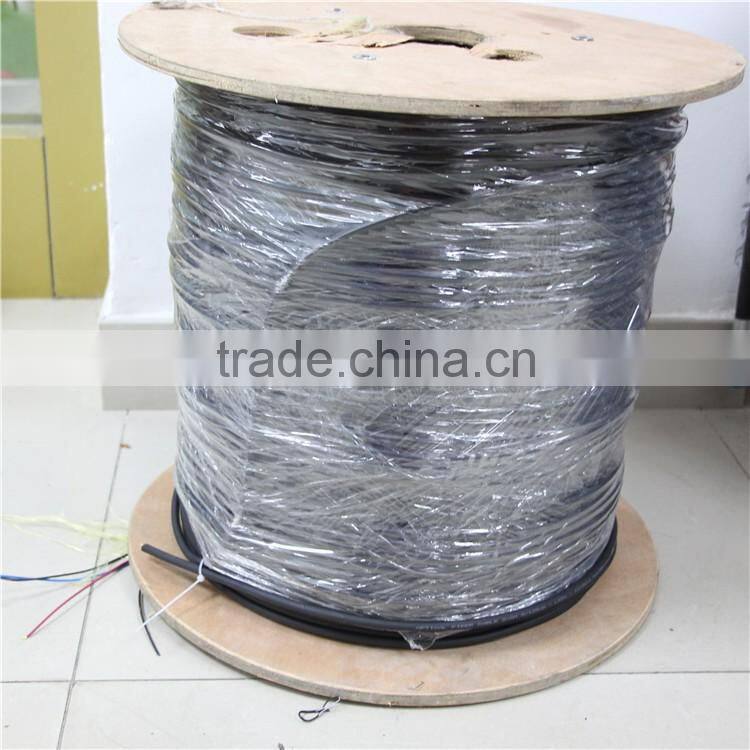

Several meters packed in a wooden drum,then paked in a large paper carton.

Shipped in 3 days after payment



8 GYFTA Stranded Loose Tube No-metallic Strength Member No-Armored Cable

Our Services



We offer the sincere dedicated service!

Before Sale:

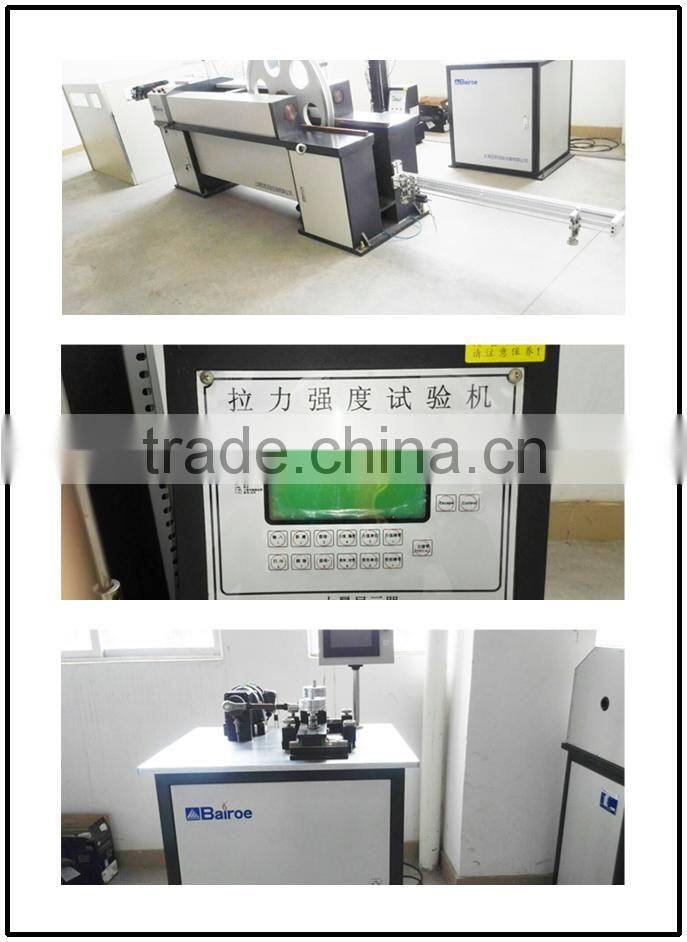

detailed products test report

related specifications



During Cooperation:

OEM Service Offered

Design Service Offered

Buyer Label Offered



After Sale:

Any problems on the product, please contact us
