12/24-Fibers MPO/MTP Fiber Loopback Module
MPO/MTP Loopback modules are used widely within testing environment especially within parallel optics 40 and 100G networks. Devices allow verification and testing of transceivers featuring MPO/MTP interface – 40G BASED-SR4 QSFP+ or 100G BASE-SR10 CXP/CFP devices. Loopbacks are built to link Transceivers (TX) and Receivers (RX) positions of MPO/MTP transceivers interfaces. MPO/MTP loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MPO/MTP trunks/patch leads.
Features
- Ø SM 9/125, MM 50/125, MM 62.5/12512 or 24 Fiber Ferrule
- Ø MPO/MTP LSZH, OFNP, OFNR Cable Jacket Options
- Ø Female and Male MPO/MTP option of Connectors
- Ø Polarity Variants selection40G QSFP+ and 100G CXP/CFP transceivers
- Ø Factory Terminated and Tested MPO/MTP Interface
- Ø MPO/MTP components feature superior optical and mechanical properties
Applications
·Data Centre Infrastructure
·Storage Area Network- Fiber Channel
·Parallel Optics
·InfiniBand
·Emerging 40 and 100Gbps Protocols
Specifications
Item |
Parameter |
Fiber Type |
Singlemode or Multimode |
Fiber Diameter |
9/125um, 50/125um, 62.5/125um |
Insertion loss |
MM<1.2dB, SM(G652D)<1.5dB,SM(G657A1)<0.75dB |
Return loss |
SM>55dB; MM>25dB |
Insert-pull Test |
500times, IL<0.5dB |
Operation Temperature |
-40℃~ +80℃ |
Tensile Resistance |
15kgf |

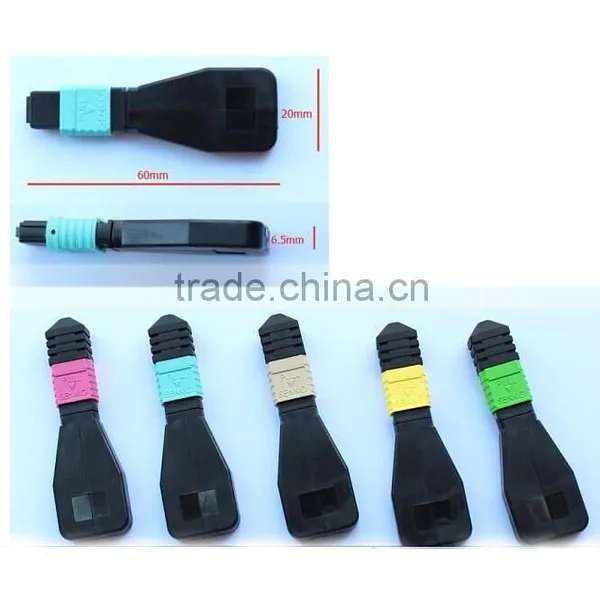

Size |
60mm*20mm |

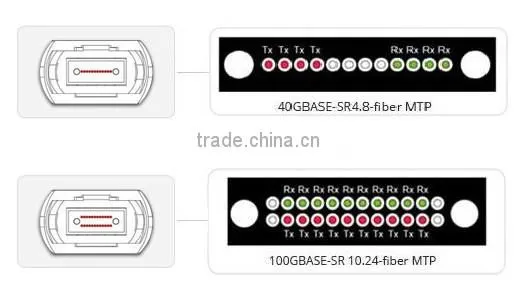

Polarity (Channel Alignment)
12-MTP VS 24-MTP
12-fiber MTP interface for 40 Gig means 4 lanes at 10 Gig per lane over singlemode or multi-mode fiber for a total of 8 fibers (i.e.,4 transmit and 4 receive).
24-fiber MTP interface for 100 Gig means 10 lanes at 10 Gig per lane over singlemode or multi-mode fiber for a total of 20 fibers (i.e.,10 transmit and 10 receive).
Packing: PE bag,carton.
Shipping: by air by DHL by FedEx or upon on requests.
We offer the sincere dedicated service!
Before Sale:
detailed products test report
related specifications
During Cooperation:
OEM Service Offered
Design Service Offered
Buyer Label Offered
After Sale:
Any problems on the product, please contact us
Can I get some samples ?
Yes, Sample order is available for quality check and market test .And you just to pay the express cost.
What's your payment terms ?
We usually accept all these kinds of payment terms .Such as T/T,L/C, Western Union.Cash Etc.
What's the delivery time ?
It usually takes about 3-7 working days .
