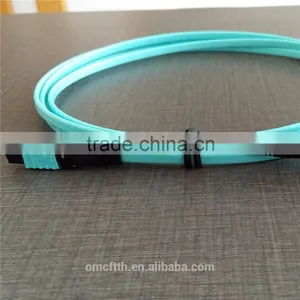

MPO patch cord
MPO Fiber Patch Cord are terminated with MPO connector on both end. All of OMC’s MPO Connectors are fromUS Conec. MPO patch cord is a kind of high density cable assemblies which is generally use in three areas.
1, The Data Center application with high dense degree environment
2, The optical fiber to the building
3, The internal connector application in fiber equipment.
MPO products’ Standard:
Ø Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
Ø Structured cabling per TIA-568-C
Ø Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- InfiniBand Compliant
Ø InfiniBand
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP

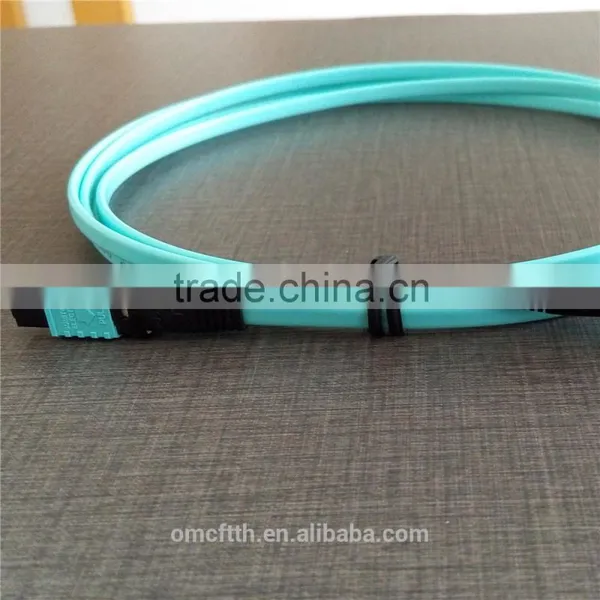

MPO Connector Types
|
|
MPO Male with Pins |
MPO Female without Pins |
|
Two other clearly visible features are the noses and guide grooves (keys) on the top side. (Note: Female connector need to connect with male connector type.) | |
Pre-terminated MPO Technology-Polarity

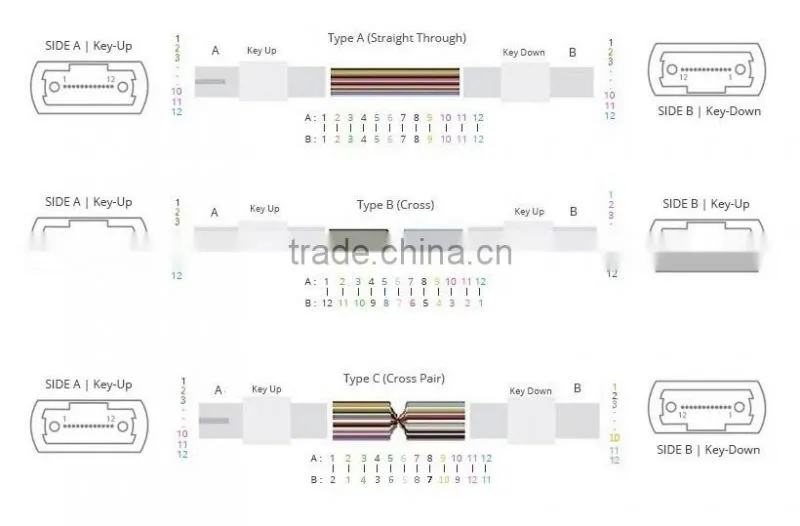

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Please Note: When it is connected with two 40G QSFP+ transceivers, please choose the Type B Cross as polarity; when it is connected with other equipment such as MTP LGX Cassette, you can choose any of the polarities as you need.
MPO patch cord’s Specification:
MPO’s spec items. |
Single mode (UPC Flat polish, APC 8 degree polish) |
Multimode (PC Flat polish) |
Insertion loss |
Standard loss≤0.7dB Low loss≤0.35dB |
Standard loss≤0.5dB Low loss≤0.35dB |
Return loss |
≥55dB |
≥35dB |
Durability |
<0.3dBtypical change, 200 matings |
|
Interchangeability |
≤0.2dB |
|
Tensile strength |
>70N |
|
Operating Temperature |
-40 to + 85°C |
|
Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters, gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters, gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters, gigabit up to 1000m
MPO Interference index
Connector type |
Testing items |
Min |
Max |
MPO PC |
ROC_X(abs)(mm) |
500 |
|
ROC_Y(abs)(mm) |
50 |
||
Angle_X(deg) |
-0.2 |
0.2 |
|
Angle_Y(deg) |
-0.2 |
0.2 |
|
Max.DH.All Fiber(nm) |
-600 |
600 |
|
Max.DH.Ave(nm) |
-300 |
300 |
|
Max.DH.Adj(nm) |
-300 |
300 |
|
Max. Core Dip(nm) |
-300 |
300 |
|
Fiber height(nm) |
-300 |
300 |
|
ROC_X(abs)(mm) |
1000 |
3000 |
|
MPO APC |
ROC_X(abs)(mm) |
500 |
|
ROC_Y(abs)(mm) |
50 |
||
Angle_X(deg) |
-0.2 |
0.2 |
|
Angle_Y(deg) |
7.8 |
8.2 |
|
Max.DH.All Fiber(nm) |
-600 |
600 |
|
Max.DH.Ave(nm) |
-300 |
300 |
|
Max.DH.Adj(nm) |
-300 |
300 |
|
Fiberheight(nm) |
|
|

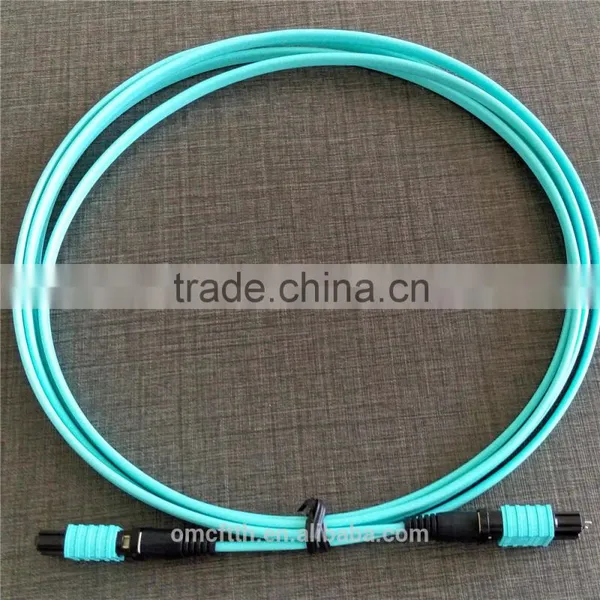

Cable Structure:
Features:
- Ø Low insertion loss, high return loss
- Ø MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Ø Economical solution for mass-termination of fiber
- Ø Designed for low loss and standard loss SM and MM applications
- Ø Ruggedized round cable, oval cable and bare ribbon options available
- Ø Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Ø Good in repeatability and exchangeability
AVAILABILITY:
Ø Ribbon and round cable available;
Ø Patch cord, pigtail cable assemblies available.
Ø MT-MT ribbon patch cord is available.
Ø MPO Loopback available

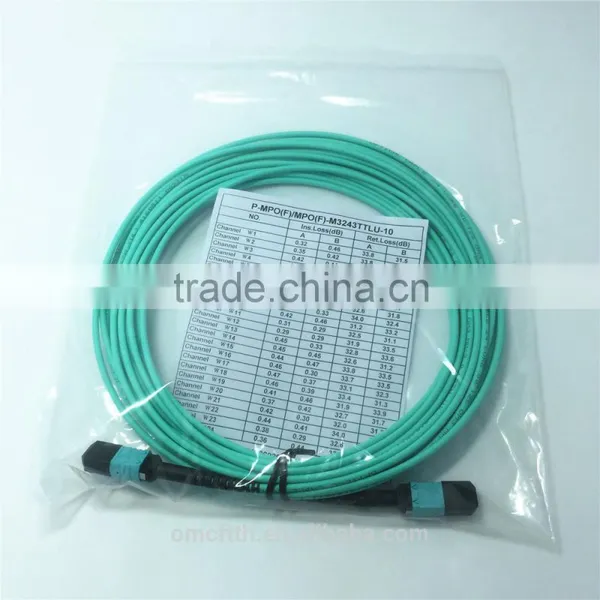

Packaging & Shipping
one piece in a PE Bag
hundreds piece in a cartoon of 54*35*39cm.
other size carton is available too.
OEM service available
We also offer training, pre and post-sales support.
