High quality China-made SC APC Simplex 0.9mm white cable Fiber optic pigtail
- 1000000 Perch / Perches per Month
- Shenzhen
- Credit Card
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OMC or OEM | Model Number: | SC APC Simplex 0.9mm |
Product Description

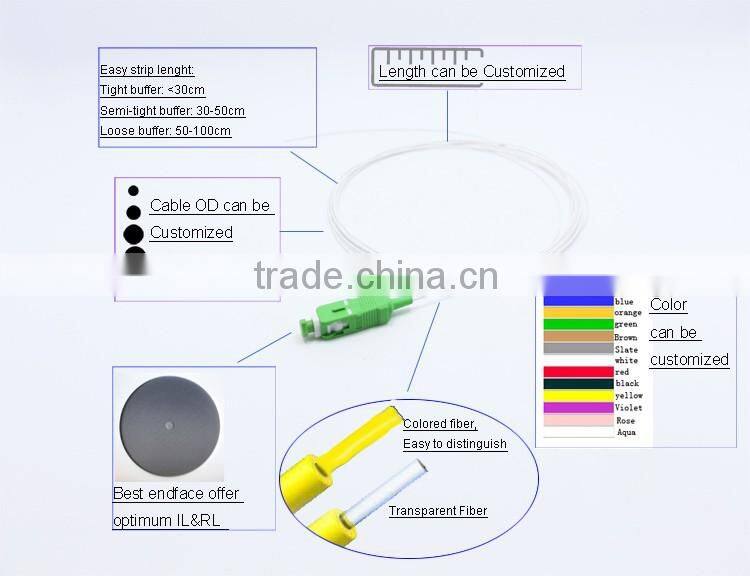

Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length of fiber cable. Meets Telcordia GR-326 Core and ROHS requirements. All of OMC pigtails are factory inspected and tested, with available interferometer data upon request.
Features:
Low insertion loss, Low back reflection loss
Flexible and easy to strip fiber buffering
Identifiable fiber buffer colors under all lighting conditions
Reduces installation time
Avoids incorrect patching by possible fiber flipping
Clean and Scratch-Free End Face
Proportional geometric test is applied to the normal production.
100% interferometer check is available under special requirement.
Products info
Fiber count | 1 | Fiber Mode | 9/125μm |
Connector Type1 | SC/APC | Connector Type2 | Unterminated |
Fiber Mode | SM | ||
Wavelength | 1310/1550nm | Jacket Material | PVC/LSZH |
Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
Return loss | ≥50dB | Vibration | ≤0.2dB |
Operating temperature | -40~75°C | Storage temperature | -45~85°C |
Geometric Specification (only for 3D interferometer tested)
Connector | APC End-face | |
SC | 10~25 mm | |
Apex Offset | ≤50 um | |
Fiber Spherical Height | +/- 50 nm | |
Angular Offset | 8°± 0.2° |
CUSTOM option
OMC also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
Physical Information

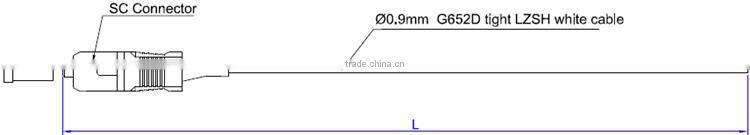

Length tolerance: 0-5M: +5cm/-0cm ; 5-100m:+10cm/-0cm
Packaging & Labeling
This easy to take and well-protected fiber optical cable package has been labelled and marked by OMC as default.
How to Choose The Right Fiber Optic Cable Type?
Designation | Fiber Dia.(μm) | Type | Fast Ethernet 100BASE-FX | 1 Gigabit Ethernet 1000BASE-SX | 1 Gigabit Ethernet 1000BASE-LX | 10Gbps Ethernet 10GBASE | 40Gbps Ethernet 40GBASE SR4 | 100Gbps Ethernet 100GBASE SR4 |
Singlemode | 9/125 | Singlemode | 2000 Meters | 5km at 1310nm | 5km at 1310nm | 10km at 1310nm | N/A | N/A |
How to correctly choose between PVC, LSZH and OFNP?
Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.
