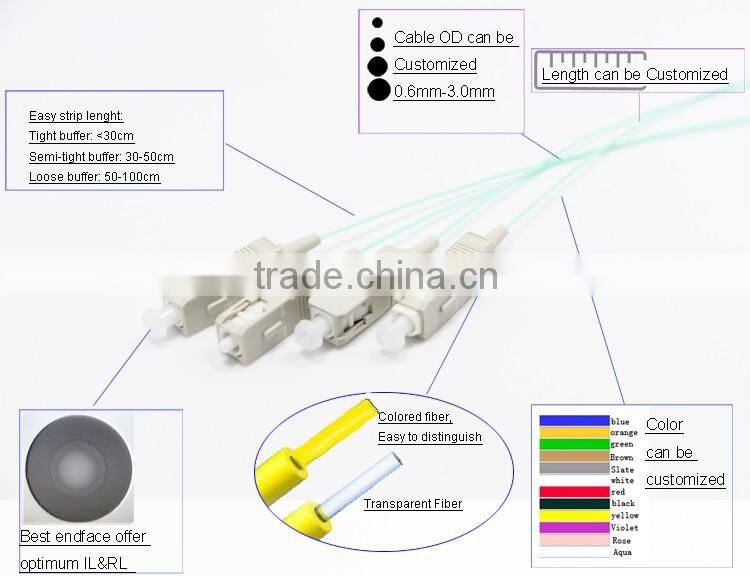

Help CenterHigh Quality China-made SC OM3 Simplex 0.9mm Fiber Optic Pigtail
Related Products
-
High Quality China-made SC APC Simplex 0.9mm White Cable Fiber Optic PigtailUS$ 0.5 - 0.6MOQ: 1 Piece -
High Quality China-made SC SM 12 Core Mini-breakout Fiber Optic PigtailUS$ 6 - 6.5MOQ: 1 Piece
-
High Quality China-made SC APC 12 Core Mini-breakout Fiber Optic PigtailUS$ 6 - 6.5MOQ: 1 Piece
-
High Quality China-made LC SM 12 Core Mini-breakout Fiber Optic PigtailUS$ 6 - 6.5MOQ: 1 Piece
-
High Quality China-made LC OM3 12 Core Mini-breakout Fiber Optic PigtailUS$ 6 - 6.5MOQ: 1 Piece
Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length of fiber cable. Meets Telcordia GR-326 Core and ROHS requirements. All of OMC pigtails are factory inspected and tested, with available interferometer data upon request.
Features:
2. Flexible and easy to strip fiber buffering
3. Identifiable fiber buffer colors under all lighting conditions
4. Reduces installation time
5. Avoids incorrect patching by possible fiber flipping
6. Clean and Scratch-Free End Face
7. Proportional geometric test is applied to the normal production.
8. 100% interferometer check is available under special requirement.
Products info
Fiber count |
1 |
Fiber Mode |
50/125μm |
Connector Type1 |
SC/PC |
Connector Type2 |
Unterminated |
Fiber Mode |
MM |
||
Wavelength |
850/1550nm |
Jacket Material |
PVC/LSZH |
Insertion loss |
≤0.3dB |
Interchangeability |
≤0.2dB |
Return loss |
≥35dB |
Vibration |
≤0.2dB |
Operating temperature |
-40~75°C |
Storage temperature |
-45~85°C |
Geometric Specification (only for 3D interferometer tested)
Connector |
UPC End-face |
|
SC |
10~25 mm |
|
Apex Offset |
≤50 um |
|
Fiber Spherical Height |
+/- 50 nm |
|
Angular Offset |
8°± 0.2° |
|
CUSTOM option
OMC also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
Physical Information
Length tolerance: 0-5M: +5cm/-0cm ; 5-100m:+10cm/-0cm
Packaging & Labeling
This easy to take and well-protected fiber optical cable package has been labelled and marked by OMC as default.
How to Choose The Right Fiber Optic Cable Type?
Designation |
Fiber Dia.(μm) |
Type |
Fast Ethernet 100BASE-FX |
1 Gigabit Ethernet 1000BASE-SX |
1 Gigabit Ethernet 1000BASE-LX |
10Gbps Ethernet 10GBASE |
40Gbps Ethernet 40GBASE SR4 |
100Gbps Ethernet 100GBASE SR4 |
OM1 |
62.5/125 |
Multimode |
2000 Meters |
275 Meters |
550 Meters |
33 Meters |
Not supported |
Not supported |
OM2 |
50/125 |
Multimode |
2000 Meters |
550 Meters |
550 Meters |
82 Meters |
Not supported |
Not supported |
How to correctly choose between PVC, LSZH and OFNP?
Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.
