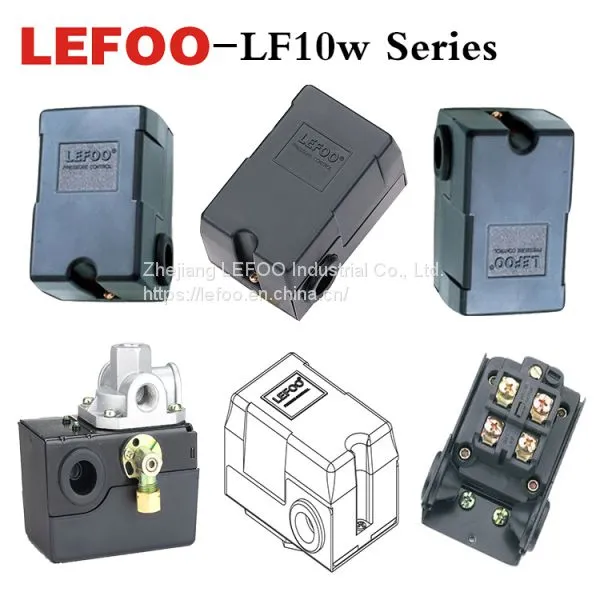

LEFOO LF10-W Water Pump Pressure Switch for automatic water system

Name: LEFOO LF10-W Water Pump Pressure Switch for automatic water system
Brand: LEFOO
Price: USD $2.5 - 7 / Piece

FOB Price

USD $2.5 - $7 / Piece

20 Pieces(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Shanghai
Payment Terms:T/T L/C D/P D/A Credit Card
Delivery Detail:14 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	LEFOO	Place of Origin:	China	Model Number:	LF10-W
Max. Voltage:	240VAC	Max. Current:	26A	Max. Working Pressure:	175PSI

Product Description

LF10-W series pressure switches provide reliable control for automatic water
systems with time function. The switch is universally acceptable for water well pumps and pumping systems usage. LF10-WR can prevent pumps from
starting while system pressure falls considerably below the cut-in pressure. It
will automatically cut the water supply restoration. A manual reset lever will be decreased if system pressure is suitable for automatic operation. The simple design makes it easy to use for both professionals and normal users.

MODEL	Min ON (Cut-In)PSI	Max Off (Cut-Out) PSI	Differential PSI	Factory Setting PSI	Electrical Rating		Pipe Fittings	Contact Arrangement
MODEL	Min ON (Cut-In)PSI	Max Off (Cut-Out) PSI	Differential PSI	Factory Setting PSI	120VAC	240VAC	Pipe Fittings	Contact Arrangement
LF10-WS1	15	80	15-30	20-35	20A	12A	1/4" Male or Female NPT	NC
LF10-WS2	30	100	20-35	30-50	20A	12A	1/4" Male or Female NPT	NC
LF10-WS3	35	150	30-40	85-115	20A	12A	1/4" Male or Female NPT	NC

MODEL	Max On(Cut-in) PSI	Min Off (Cut-In)PSI	Differential PSI	Factory Setting PSI	Electrical Rating		Pipe Fittings	Contact Arrangement
MODEL	Max On(Cut-in) PSI	Min Off (Cut-In)PSI	Differential PSI	Factory Setting PSI	120VAC	240VAC	Pipe Fittings	Contact Arrangement
LF10-WR1	80	15	15-30	35-20	20A	12A	1/4" Male or Female NPT	NO
LF10-WR2	100	30	25-35	50-30	20A	12A	1/4" Male or Female NPT	NO
LF10-WR3	150	35	30-40	115-85	20A	12A	1/4" Male or Female NPT	NO

Other pipe fittings are available on request. Stainless Steel Connection is optional
