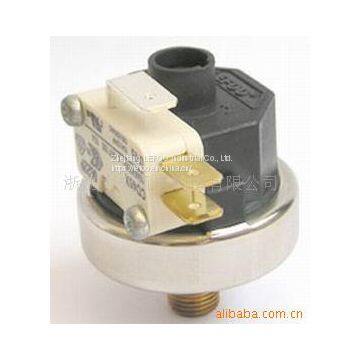

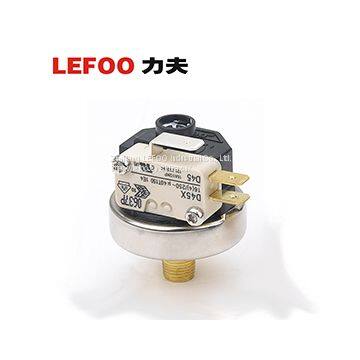

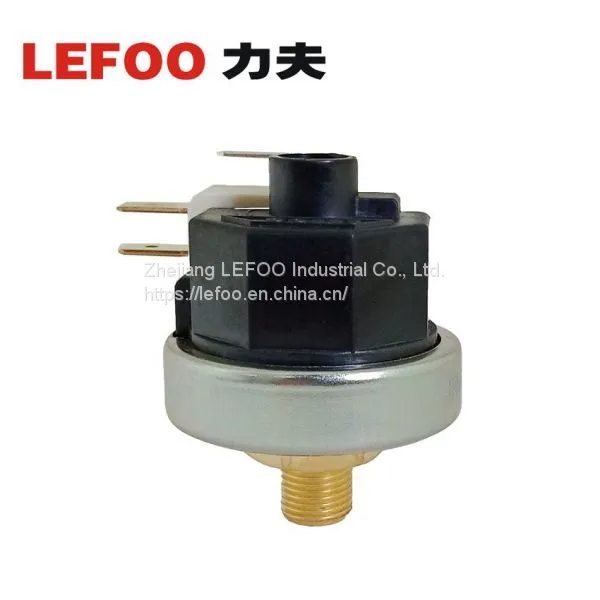

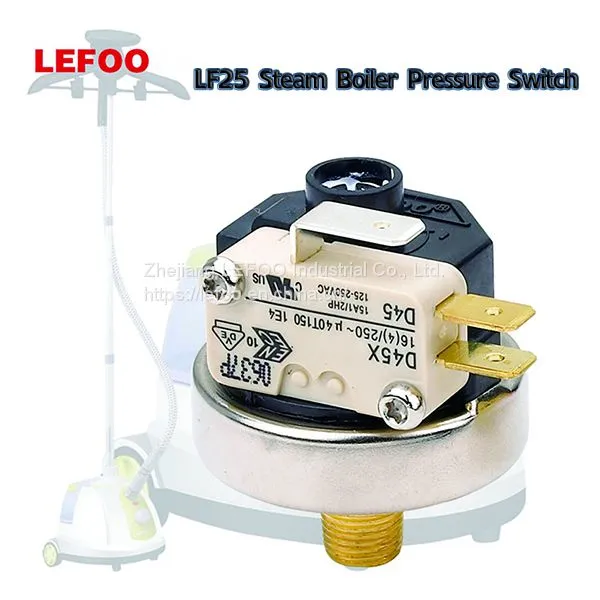

Home > Electrical & Electronics > Switch > Pressure Switch > LF25 CE Approved Steam Boiler Pressure Switch
US$ 4 - 7
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Brand Name:
LEFOO
Model Number:
LF25
Max. Voltage:
250VAC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
LF55 LEFOO Single Low Or High Pressure Switch For Air Compressor,Refrigerant System,water PumpUS$ 3 - 8MOQ: 10 Pieces -
LEFOO LF10-L Pressure Switch/air Compressor Switch/Mechanical Pressure Switch for Air CompressorUS$ 3.5 - 6MOQ: 200 Pieces
-
LF40 Air Pressure Switch for Medical ApplicationUS$ 4 - 7MOQ: 10 Pieces
-
LEFOO LF56 Steam Boiler Pressure Switch for Boiler or Water Tower, Differential Pressure Adjustable Pressure ControllerUS$ 25 - 30MOQ: 10 Pieces
-
LF52 OEM Water Flow Central Air Conditioning Differential Pressure SwitchUS$ 30 - 35MOQ: 10 Pieces
Brand Name
LEFOO
Model Number
LF25
Max. Voltage
250VAC
Max. Current
16A
Max. Working Pressure
9BAR

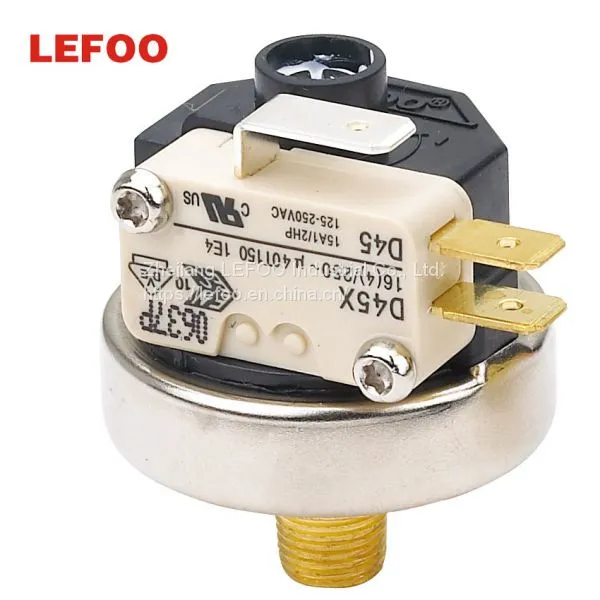

| LF25 steam pressure switch is designed for control pressure with higher current capacity. It is widely used in steam cleaner, steam sadiron and other pressure control system. It provides SPST or SPDT contact form and switch deadband (also referred to as mechanical differential or hysteresis).LF25 switch utilize high-quality miniature snap-action switches. The switch is diaphragm operated. Diaphragm material can be selected for the operating medium, temperature range and other parameters. During the development of a specification, actuation point can be adjusted by the designer. In production, factory setting is required. |
Specification
Model | LF25 | |||||||
Medium | Non hazardous gas, liquid or steam | |||||||
Operating Pressure | 0.2-0.6 bar | 0.5-1.5Bar | 1.2-2.5bar | 1.5-4bar | 3-7bar | 5-9bar | ||
Proof Pressure | 3bar | 4bar | 5bar | 6bar | 8bar | 10bar | ||
Differential | 0.2±0.1bar | 0.2±0.1bar | 0.2±0.1bar | 0.25±0.15bar | 0.35±0.20bar | 0.6±0.20bar | ||
Operating Temperature Range | +85 / +125 Maximum | |||||||
Contact Arrangement | SPST or SPDT | |||||||
Electric Rating | SPST or SPDT/ Normal Close: 16(4) A-250VAC; Other ratings are available on request | |||||||
Terminals | 6.35 or 4.88mm male Q.C. ; Insulation cover available as necessary | |||||||
Connection | NPT 1/8-27 or NPT1/4-18 male, G1/8 male | |||||||
Conversion1Kgf/cm2=14.2PSI 1Bar=14.5PSI
