Home > Products > Plate vulcanizing press > C type tyre tread vulcanizing press
C type tyre tread vulcanizing press
- 60 Set / Sets per Month
- qingdao port or any port of china
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Vulcanizer | Place of Origin: | Shandong, China |
Brand Name: | HONGHESHENG | Model Number: | XLB 350/400/500/600 | Voltage: | 380V/220V/450V |
Power(W): | 2.2 KW | Dimension(L*W*H): | 1450*690*1818 | Weight: | 3600kgs |
Certification: | CE ISO | Warranty: | 2 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
C type tyre tread vulcanizing press
1. Structure:
Main introduction:
this machine is used to hot press tyre tread for tyre retread
1.unit treading working pressure is very high greater than 81kg/cm2.Ensure the tread density,improved wear-resisting performance.
2.Transform the hydraulic systerm process.Reducing the power. Save the energy,total power only 7.5kw.
3.Use PLC control,the automation control.
4.Can be easily recycled the overflow of rubber,reduce the cost.
5.Smooth operation,less easyworm parts.
2 Technical Parameters
| |
XLB 750 × 3800 × 5D, 1150T | |
Pressure | 1150T |
Plate size | 750 × 3800× 70 mm |
Daylight | 150 MM |
Layers | 5 players, 6 plates |
Plunger stroke | 750mm |
Cylinder diameter | Φ14inch*6pcs |
Power supply | 380v/50hz |
Plc control | Auto rise, auto fall, auto alarm, auto exhaust |
3 why choose us:
1 manufacturer direct sale, can ensure delivery time and quality.
2 plunger diameter difference is very small,which ensure pressure.
3 our vulcanizing press is equiped with PLC system. automatic controling temperature and pressure, automatic alarm, automatic loading ,emergency stop ,digital readout and son on.
4 low noise, no oil leakage, no pressure off.
5 small temperature difference of hot plate,
Plate temperature difference: ±1°C, which follows the national standard.
6 the parallelism differnce does not exceed ±0.01-0.02mm
7 hot plate use high quality carbon steel Q-235 material.
7 heating method according to your request : electricity , steam heating , conduction oil heating .
8 we can make machine according to the your request.
9 we can give a good discount according to your quantity
4 detailed pictures,note:machine can be different colour

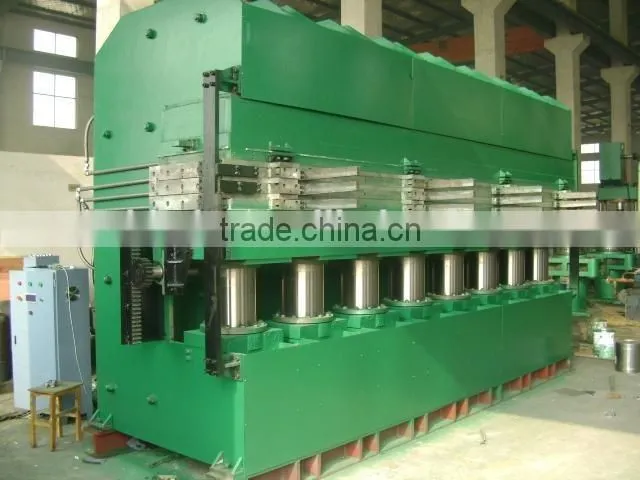

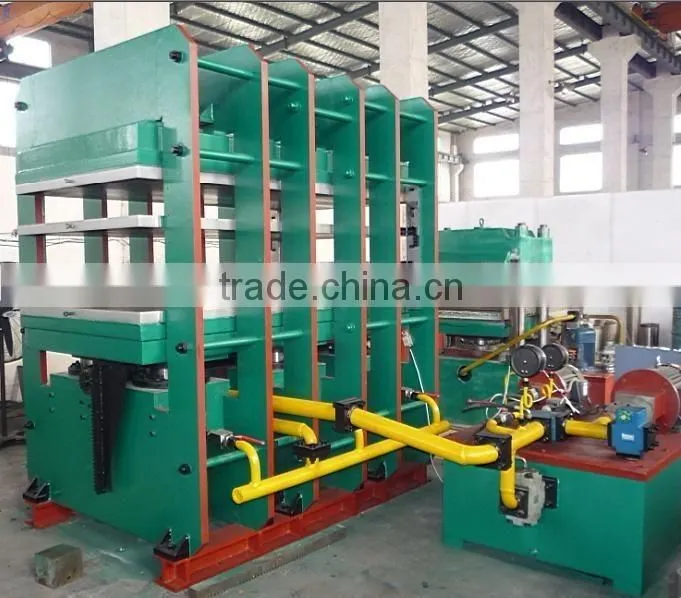

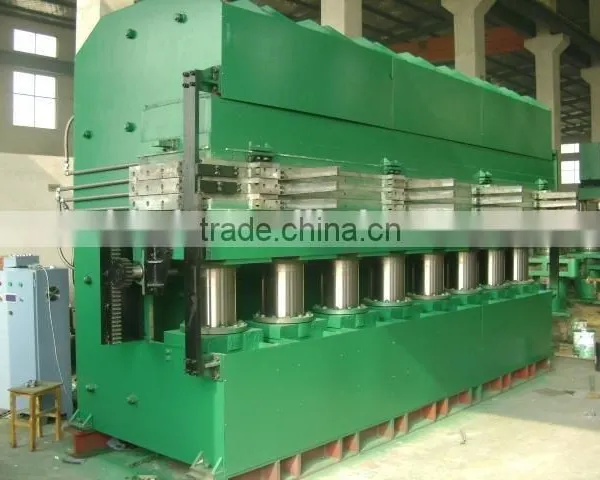

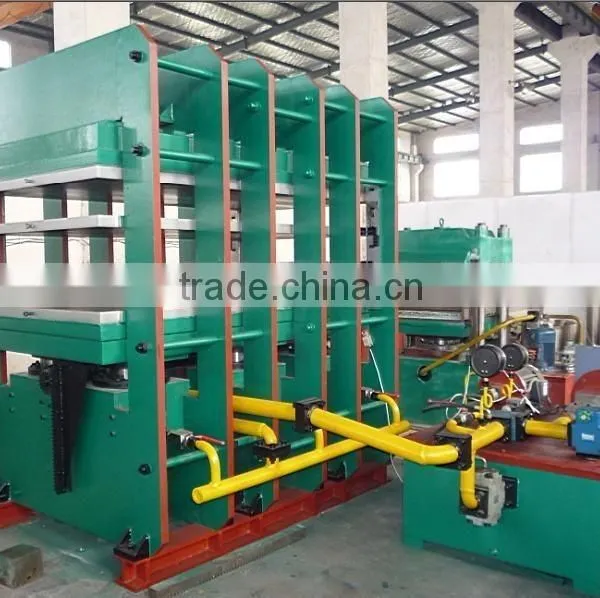

C type tyre tread vulcanizing press
if your budget less, you can choose frame tyrpe tyre tread vulcanizing press
For FCL goods, we usually pack machines with stretched film and then load them to the
container. to ensure safety, we will fix machine with steel .
For LCL goods, we usually pack machines with standard wood boxes first, and then they will be transported .
1 Guarantee : 2 years ,manufacturer sell, We offer lifetime technical support
2After sales:
1 once problems appear, we will reply in 24 hours. And give solutions
2provide facory layout drawing . Engineers available to service machinery overseas; Send the engineers to debug the machines,Train your workers to use machine.
.
Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
welcome to visit our factory!
1. Q: Are you a manufacturer or training company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.
Nearest airport is Qingdao liuting international airport
Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant ,press machine and other machine.
4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.
5 .Q: Are the techncal parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
Leave your cellphong? Skype? whatsApp?viber? so that we can talk efficiently.
Contact Sophie for quotation NOW:
Skype: sophie.xiao3
Cell: +8613573826806 (whatsApp and viber)
