rubber plate vulcanizing press
1. Structure:
♥ This machine is frame and four colomn structure, including main machine, hydraulic station, electric controlling cabinet
♥Main machine is composed by base, plunger piston, platform, beam, automatic mold pushing-out device and compulsory mold opening device
can be used as hydraulic press machine
2 Technical Parameters
Parameters/version
| XLB350*350*2 | XLB400*400*2 | XLB500*500*2 | XLB600*600*2/4 | XLB750*850*2 | XLB1000*1000*2 |
Mould closing force | 0.25MN | 0.5MN | 0.8MN | 1.0MN | 1.6MN | 2.5MN |
Hot plate spacing | 125mm | 125mm | 125mm | 125mm | 125mm | 200mm |
Hot plate layer | 2 | 2 | 2 | 2/4 | 2 | 2 |
Plunger stroke | 250mm | 250mm | 250mm | 250/500mm | 250mm | 400mm |
Heating way | Electricity/stream | Electricity/stream | Electricity/stream | Electricity/stream | Electricity/Stream | Electricity/stream |
Main motor power | 2.2kw | 2.2kw | 2.2kw | 2.2kw | 3kw | 5.5kw |
The thermal power | 2.4kw/board | 3kw/board | 3kw | 7.5kw/board | 9kw/board | 10.8kw/board |
Size(L*W*H)mm | 1450*400*1350 | 1600*400*1440 | 1450*690*1818 | 1880*780*1660 | 2100*1010*1900 | 2400*960*2500 |
Weight(kg) | 1200 | 1500 | 1700 | 2500/3100 | 3560/4300 | 8300 |
if you make nonstandard machine, kindly confirm me below ,so that we can make precise quotation.
-1 what is your rubber plate size ? 500*500mm?1000*1000mm?
-2 pressure? 25T ,50T,80T.100T?
-3 How many layers? 2 plates,1 layer?3 plates ,2 layers?.........
-4 distance between hot plates? 125mm? or other?
-5 what is the plunger stroke? 250mm? 500mm?
-6 Leave your cellphong? Skype? whatsApp?viber? so that we can talk efficiently.
3 why choose us:
1 manufacturer direct sale, can ensure delivery time and quality.
2 plunger diameter difference is very small,which ensure pressure.
3 our vulcanizing press is equiped with PLC system. automatic controling temperature and pressure, automatic alarm, automatic loading ,emergency stop ,digital readout and son on.
4 low noise, no oil leakage, no pressure off.
5 small temperature difference of hot plate,
Plate temperature difference: ±1°C, which follows the national standard.
6 the parallelism differnce does not exceed ±0.01-0.02mm
7 hot plate use high quality carbon steel Q-235 material.
7 heating method according to your request : electricity , steam heating , conduction oil heating .
8 we can make machine according to the your request.
9 we can give a good discount according to your quantity

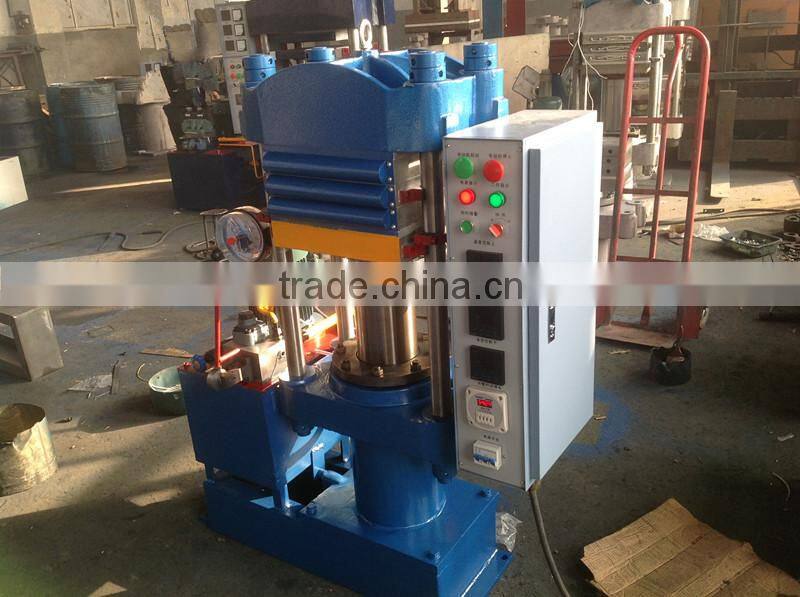

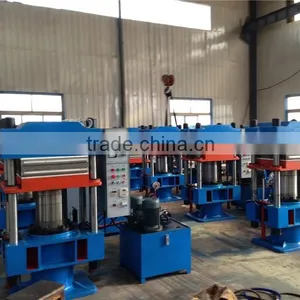

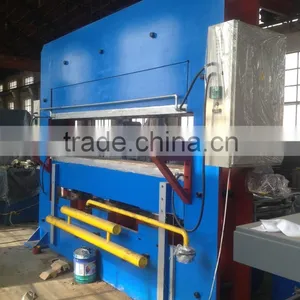

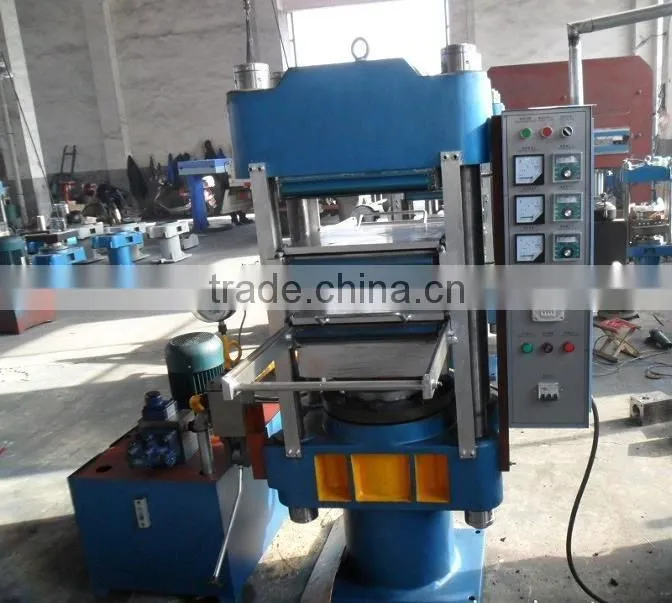

4 detailed pictures
25T
50T
100T
For FCL goods, we usually pack machines with stretched film and then load them to the
container. to ensure safety, we will fix machine with steel .
For LCL goods, we usually pack machines with standard wood boxes first, and then they will be transported .
1 Guarantee : 2 years ,manufacturer sell, We offer lifetime technical support
2After sales:
1 once problems appear, we will reply in 24 hours. And give solutions
2provide facory layout drawing . Engineers available to service machinery overseas; Send the engineers to debug the machines,Train your workers to use machine.
.

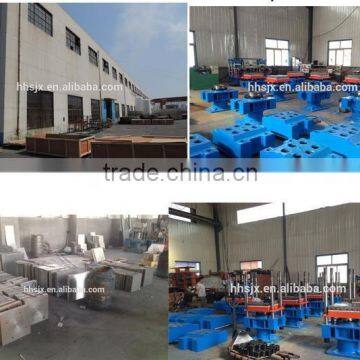

Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
welcome to visit our factory!
1. Q: Are you a manufacturer or training company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.
Nearest airport is Qingdao liuting international airport
Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant ,press machine and other machine.
4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.
5 .Q: Are the techncal parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
