Hydraulic Drawing Press Machine For Kitchenware
- 50 Set / Sets per Month
- China port
- T/T
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | CNC | Power Source: | Hydraulic |
Place of Origin: | Guangdong, China | Brand Name: | Yongheng | Model Number: | Y28 series |
Voltage: | 110-440V | Power(W): | 15KW | Weight: | 4T |
Dimension(L*W*H): | 1680*1160*3200mm | Certification: | ISO9001:2000 | Warranty: | One Year, One year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

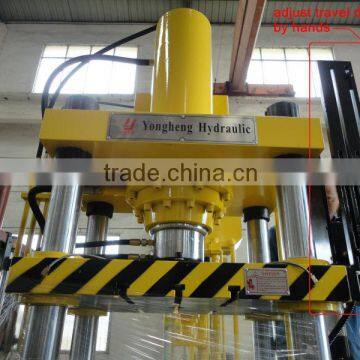

Hydraulic Drawing Press Machine For Kitchenware
1.Suitable for:
Hydraulic Drawing Press Machine For Kitchenware is used for aluminum products and stainless steel products,which is particularly used for drawing aluminum sheet,pressing and forming aluminum products,drawing stainless steel sheet,as well as pressing and forming stainless steel products.
2.Function:
A.Speed control of the second section of moving beam;No-load rapid & slow copy deep drawing
B.Safety protection device should be equipped to provide security guarantee for the operators
C.Auto count function should be equiped
D.The deep drawing force and blank holder force are adjustable
3.Main technical specification:
DESCRIPTION | UNIT | Y28-120 |
Nominal Capacity | KN | 800 |
Main Cylinder Pressure | Mpa | 21 |
Return Capacity | KN | 54 |
Blankholder Cylinder Capacity | KN | 400 |
Blankholder Cylinder Max. Pressure | Mpa | 23 |
Upper Ejector Capacity | KN | 39 |
Ram Stroke | MM | 500 |
Blankholder Stroke | MM | 250 |
Ejection Stroke | MM | 180 |
Downing Speed | MM/S | 340 |
Pressing Speed | MM/S | 17~25 |
Return Speed | MM/S | 280 |
Motor Power | KW | 15 |
Working table size | MM | 540 (L) x 600(W) |
Overall Size | MM | 1680(L) x 1160(W) x 3670(H) |
1.The special specification can be custom made separately
2.Engineer is available to service oversea
