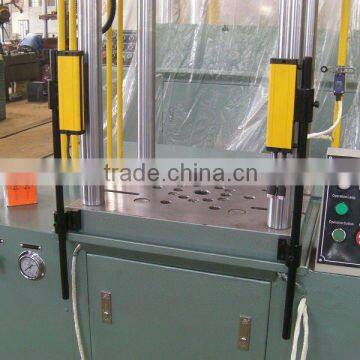

Four Pillars Hydraulic Home Olive Oil Press Machine
1.Suitable for:
Four Pillars Hydraulic Home Olive Oil Press Machine is suitable for auminum products and stainless steel products,which is particularly used for drawing aluminum sheet,pressing and forming aluminum products,drawing stainless steel sheet,as well as pressing and forming stainless steel products.
2.Main Feature:
A.Low energy consumption,and small noise
B.Speed control of the second section of moving beam;No-load rapid & slow copy deep drawing
C.Safety protection device should be equipped to provide security guarantee for the operators
D.Auto count function should be equipped.
E.The deep drawing force and blank holder force are adjustable
F.Mitsubishi PLC control,touching screen display
3.Main technical specification:
DESCRIPTION | UNIT | Y28-200 |
Nominal Capacity | KN | 1500 |
Main Cylinder Pressure | Mpa | 18.6 |
Return Capacity | KN | 70 |
Blankholder Cylinder Capacity | KN | 500 |
Blankholder Cylinder Max. Pressure | Mpa | 20 |
Upper Ejector Capacity | KN | 39 |
Ram Stroke | MM | 560 |
Blankholder Stroke | MM | 250 |
Ejection Stroke | MM | 220 |
Downing Speed | MM/S | 192 |
Pressing Speed | MM/S | 18~23 |
Return Speed | MM/S | more than 250 |
Motor Power | KW | 30 |
Working table size | MM | 700(L) x 850(W) |
Overall Size | MM | 1850(L) x 1660(W) x 3650(H) |
1.The special specification can be custom made separately
2.Engineer is available to service oversea
