Filter Shell Hydraulic Press Machine For Filter shell pressing
1.Suitable for:
Filter Shell Hydraulic Press Machine is used for the filter shell,which is mainly used for the deep-drawing technology of filter shell and can realize the completion of secondary deep-drawing,edge trimming and shaping at a time.
2.Main Feature:
A. Low power,high efficiency,low noise;Constant-power variable-capacity pump is used for supplying oil

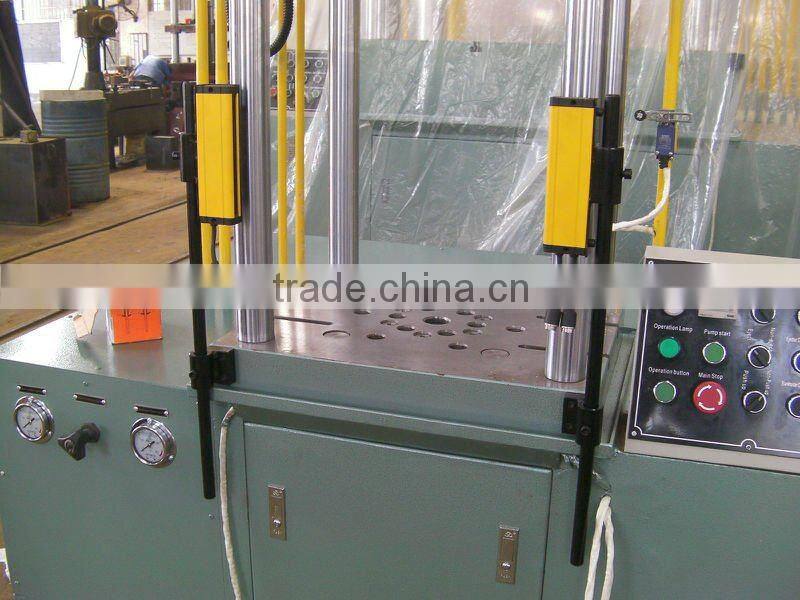

B. Security and reliable : NA serial screen-sensor protection device is adopted,as well as overload protection device

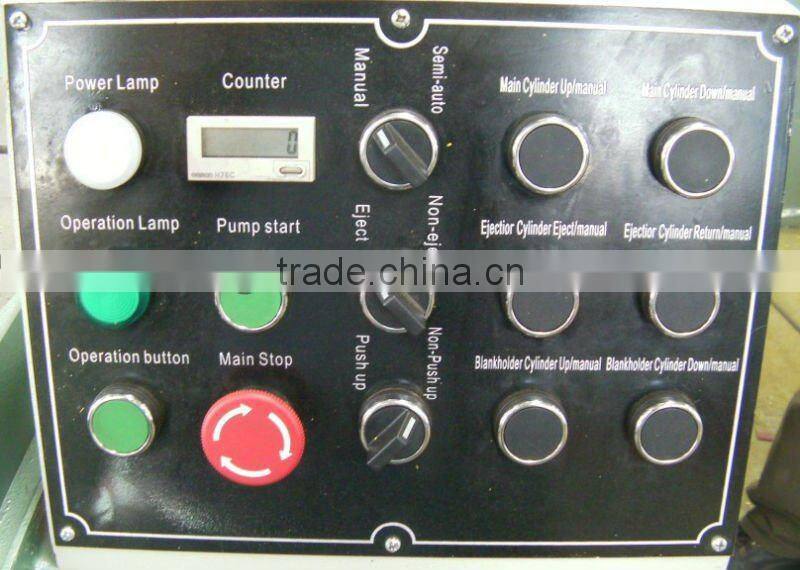

C. Control sensitive and accurate : Non-contact switch is adopted for electrical system,which is controlled by programmable controller
D. Good airproof performance : The products of NOK Company and Sealtech Company are adopted for main sealing elements
E. Good performance,steady adn reliable : The products of Beijing Huade Company and Taiwan JeouGang Company are adopted for hydraulic emements
3.Main technical specification :
DESCRIPTION | UNIT | Y28A-80 |
Nominal Capacity | KN | 500 |
Max. work pressure of hydraulic system | Mpa | 20 |
Max. stroke of movable crossbeam | MM | 700 |
Height of max, opening | MM | 1000 |
Height from worktable to floor | MM | 1070 |
Capacity of central blank-holder cylinder | KN | 150 |
Capacity of around blank-holder cylinder | KN | 150 |
Stroke of blank-holder cylinder | MM | 300 |
Downing Speed | MM/S | 380 |
Pressing Speed | MM/S | 55~80 |
Return Speed | MM/S | 330 |
Motor Power | KW | 30 |
Working table size | MM | 600(L) x 650(W) |
1.The special specification can be custom made separately
2.Engineer is available to service oversea
