Four-column Double Action Hydraulic Drawing Press Machine
- 50 Set / Sets per Month
- Shenzhen Port
- T/T
You May Like
-
Hydraulic Drawing Press Machine For Kitchenware
-
Four Pillar Drawing Hydraulic Press
-
Filter Shell Hydraulic Press Machine For Filter shell pressing
-
350Ton Four Pillars Double Action Deep Drawing Hydraulic Press Machine
-
Four Pillars Hydraulic Number Plate Press Machine
-
Four Pillars Hydraulic Home Olive Oil Press Machine
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Hydraulic | Place of Origin | Guangdong, China | |
| Brand Name | yongheng | Model Number | Y28-100 | |
| Voltage | 110-440V | Power(W) | 11KW | |
| Certification | ISO9001:2000 | Warranty | One Year, One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

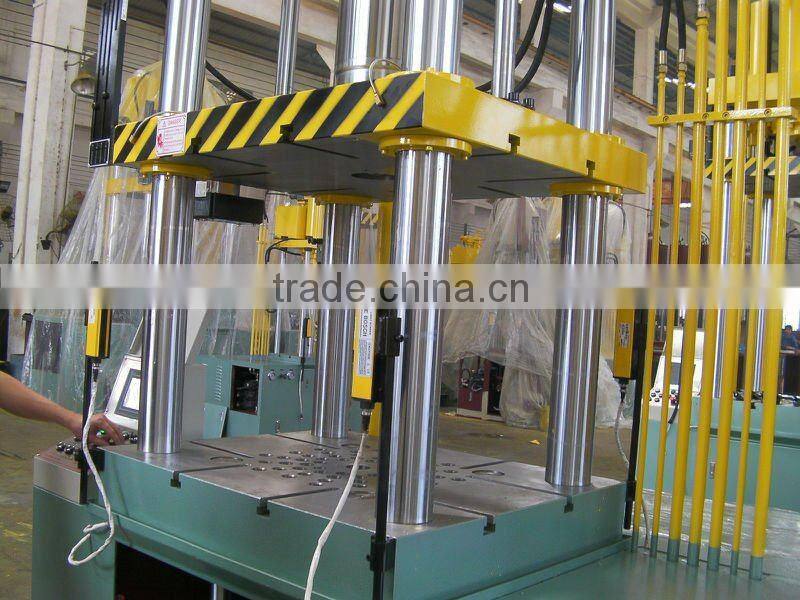

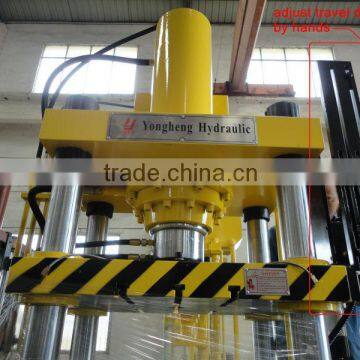

Four-column Double Action Hydraulic Drawing Press Machine
1.Suitable for:
Four-column Double Action Hydraulic Drawing Press Machine is suitable for aluminum products and stainless steel products,which is particularly used for drawing aluminum sheet,pressing and forming aluminum products,drawing stainless steel sheet,as well as pressing and forming stainless steel products.
2.Main Feature:
A.Speed control of the second section of moving beam;No-load rapid & slow copy deep drawing
B.Safety protection device should be equipped to provide security guarantee for the operators
C.Auto count function should be equiped
D.The deep drawing force and blank holder force are adjustable
3.Main technical specification:
DESCRIPTION | UNIT | Y28-100 |
Nominal Capacity | KN | 650 |
Main Cylinder Pressure | Mpa | 21 |
Return Capacity | KN | 49 |
Blankholder Cylinder Capacity | KN | 350 |
Blankholder Cylinder Max. Pressure | Mpa | 23 |
Upper Ejector Capacity | KN | 39 |
Ram Stroke | MM | 500 |
Blankholder Stroke | MM | 250 |
Ejection Stroke | MM | 180 |
Downing Speed | MM/S | 340 |
Pressing Speed | MM/S | 16~30 |
Return Speed | MM/S | 300 |
Motor Power | KW | 11 |
Working table size | MM | 540(L) x 600(W) |
Overall Size | MM | 1660(L) x 1150(W) x 3450(H) |
1.The special specification can be custom made separately
2.Engineer is available to service oversea
