QT10-15 Hydraulic Pree Machine Big Capacity Concrete Brick Making Machine

QT10-15 Hydraulic Pree Machine Big Capacity Concrete Brick Making Machine photo-1
US$ 38,845 - 53,345 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Paving Block Making Machine
Brick Raw Material:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Paving Block Making Machine
Brick Raw Material Concrete
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 2400pcs/hour
Place of Origin Jiangsu, China
Brand Name hengda
Model Number QT10-15
Voltage 380V/415V
Power 48kw
Dimension(L*W*H) 6000*2450*2550mm
Certification SGS & CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas





1.reasonable structure design
2,low mold materials
3,high efficiency
4,wide adaptability



  QT10-15 cheap price hydraulic concrete block machine hollow block machine





Company Information





Good news!!!!

In 2013 year, we company self-developed new technology movable tunnel kiln, which line has been into smoothly use in Jiangsu Nantong Zhuangzhi Brick Factory, now in China Xinjiang area, we have 4 lines are in counstrcution!

Now we company have clay brick vacuum extruder, concrete block machine, movable tunnel kiln, pvc pallet, pvc tiles,

If you are interests in machine buying or kiln building, welcome to our factory to visit 24h Serve for you !Looking forward to your inquiry!

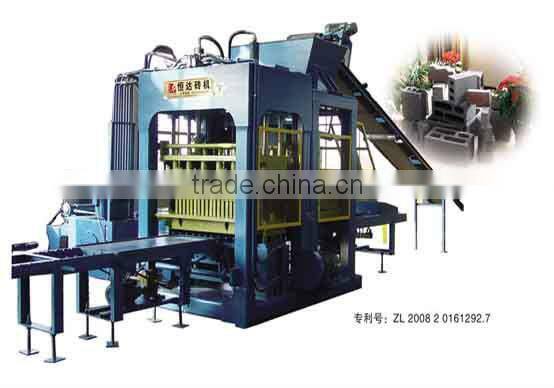

QT10-15 hydraulic pree machine big capacity concrete brick making machine





Customers in Hengda

QT10-15 hydraulic pree machine big capacity concrete brick making machine





Product Description



LG PLC control & touch screen cheap price concrete block machine;
CE&ISO approved cheap price concrete block machine;



Exported to over 50 countries cheap price concrete block machine;
Mould's lifespan reaches 80000-100000 times;



High quality steel, longer spanlife cheap price concrete block machne;



Stationary price concrete block machine with high efficiency, high capacity;



Almost 20 years experience;



Double cylinders cheap price concrete block machine



This QT10-15 cheap price concrete block machine  is equipped with a frequency conversion vibration system. The system includes motors for top and bottom vibration generation, the automatic price concretet block machine utilizes the LG frequency converter. For reliable performance, the product is outfitted with LG PLC, as well as touch screen .Moreover, the hydraulic system of this machine is composed of integrated modular units from Germany and Italy.

The overall dimension (L x W x H):
5,200 x 2,300 x 2,960mm with facemix device
3,200 x 2,300 x2,960mm without facemix device
Concrete products: 50-300mm in height
Pallets size: 1,100x850mm

Main Technical Specifications of QT10-15 price concrete block machine

Production per mould

10pcs/mould (Hollow block: 390×190×190mm)

48pcs/mould (Solid block: 240×115×53mm)

24pcs/mould (Interlocking block: 225×112.5×60mm)

35pcs/mould (Holland brick: 200×100× 60-80mm)

Cycle time

15-25 seconds(Depending on product type)

Production per shift
(8 working hours)

Hollow block (400×200×200mm): 14400-19200pcs

Solid block (240×115×53mm): 77760-92160pcs

Interlocking block: 240×115×90mm): 31104-46080pcs

Holland brick (200×100×60-80mm): 40320-50400pcs.

Vibration frequency

2940 -3600rolls/minute or 50Hz

Vibrating force

100kN

Motors power

48kw

Volume of hoppers

Main material: 900L

Face material: 750L

PVC Pallet size

1100×850×22mm

Gross weight

9.0 T (without face mix device)

12T (with face mix device)

Raw materials

Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial waste.

Applicable products

Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, curbstones, grass blocks, slope blocks, interlocking blocks, etc.

Applied fields

Suitable for buildings, road paving, squares, gardens, landscaping, city constructions, etc.



 QT10-15  big capacity concrete brick making machine
QT10-15 hydraulic pree machine big capacity concrete brick making machine





QT10-15 hydraulic pree machine big capacity concrete brick making machine

QT10-15 hydraulic pree machine big capacity concrete brick making machine







4.we past CE and ISO9001 Certifacate for price concrete block machineQT10-15 hydraulic pree machine big capacity concrete brick making machineQT10-15 hydraulic pree machine big capacity concrete brick making machine



5.PURCHASE CHIPS for price concrete block machine

If you are interested in our brick and block machine and want to buy,pls offer follows technical data,we will be grateful to you:

1.what is your brick size  (length*width*height mm)?

2.what capacity do you want per hour?





6. for  big capacity concrete brick making machine



Contact person:Austin



Skype: austin_qiu1985



Mobile:+86 13255238000



Tel:+86 513 88801016
